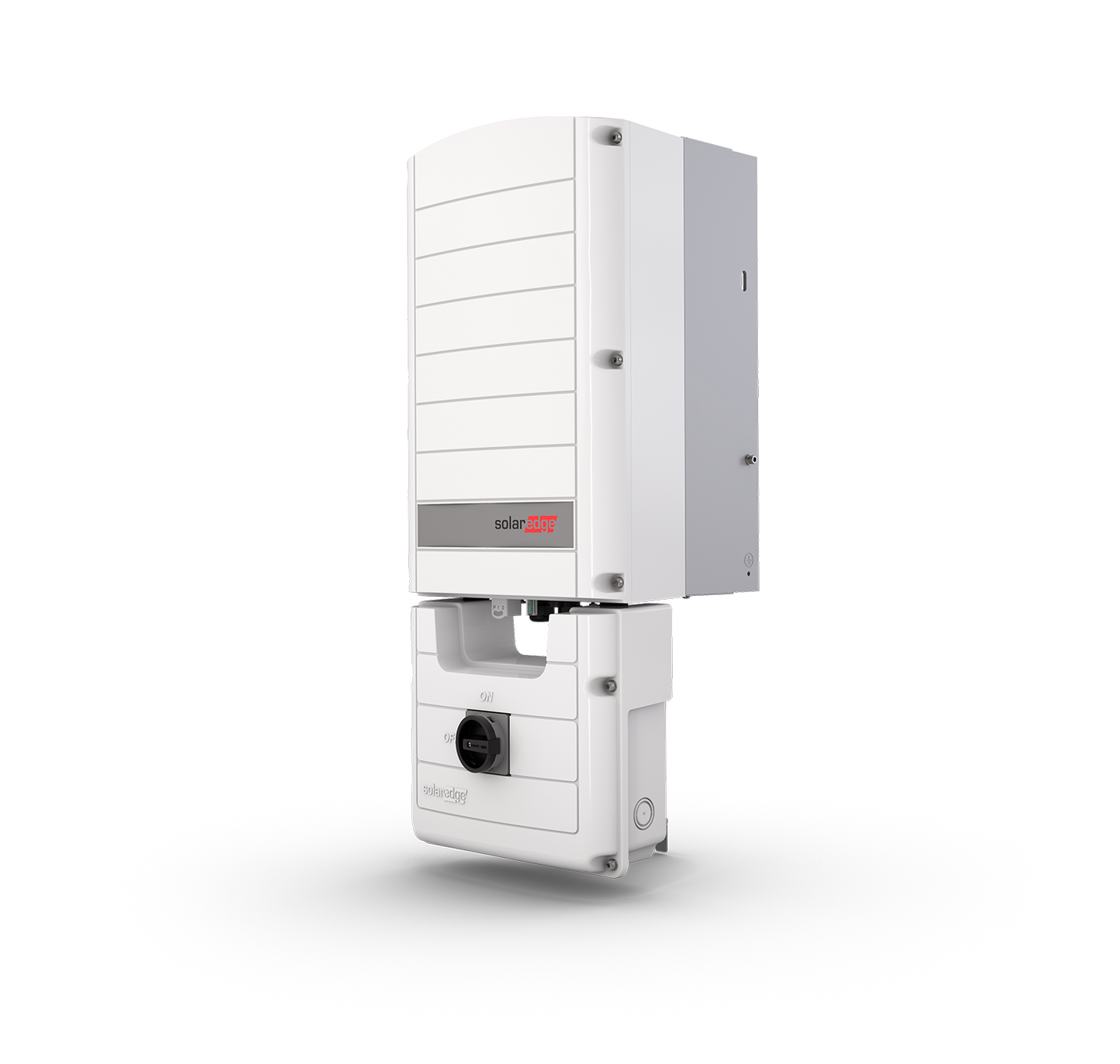

SolarEdge SE30KUS 277/480V Grid-Tie Three Phase String Inverter

SolarEdge SE30KUS 277/480V Grid-Tie Three Phase String Inverter

Regular price $3,447
Sale price $3,447 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: SE30KUS

SolarEdge SE30KUS 277/480V Grid-Tie Three Phase String Inverter

SolarEdge SE30KUS 277/480V Grid-Tie Three Phase String Inverter

No reviews
Leave a Review
Regular price $3,447
Sale price $3,447 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
SolarEdge
Manufacturer
SolarEdge
Weight
78.2 lb
Dimension
31.8 x 12.5 x 11.8 inches

SolarEdge SE30KUS 277/480V Grid-Tie Three Phase String Inverter

Discover the SolarEdge SE30KUS, a state-of-the-art 277/480V grid-tie three-phase string inverter, designed to maximize the efficiency and reliability of commercial solar energy systems. Tailored for seamless integration with SolarEdge power optimizers, this inverter brings unparalleled efficiency, advanced safety features, and the ease of monitoring to your solar installation.

  • Superior efficiency of 98.5% due to fixed voltage technology, enabling longer strings.
  • Quick and easy commissioning directly from a smartphone with SolarEdge SetApp.
  • Integrated arc fault protection and rapid shutdown for compliance with NEC 2014 and 2017.
  • Compact and lightweight, making it the smallest in its class for easy installation.
  • Includes built-in type 2 DC and AC Surge Protection for enhanced durability against lightning.

Technology and Overview

The SE30KUS employs SolarEdge's innovative fixed voltage technology, which allows for significant improvements in system efficiency and flexibility in string length. It also features built-in module-level monitoring and RS485 Surge Protection, ensuring your system is resilient and easily manageable.

Installation and Compatibility Overview

Engineered for versatility, the SE30KUS can be installed both indoors and outdoors using the provided bracket. Its lightweight design and straightforward SetApp mobile application commissioning facilitate a hassle-free installation process and compatibility with a wide range of commercial solar projects.

Benefits and Applications Overview

The SE30KUS not only enhances the efficiency and safety of solar installations but also offers significant cost savings and environmental benefits by optimizing energy production. Ideal for commercial applications, this inverter ensures your solar project contributes to a sustainable future.

Specifications

Specification Value
Model No. (APPLICABLE TO INVERTERS WITH PART NUMBER - SEXXK-USX8IXXXX) SE30KUS
Rated AC Power Output 30000 W
Maximum Apparent AC Output Power 30000 VA
AC Output Line Connections 3W + PE, 4W + PE
AC Output Voltage Minimum-Nominal-Maximum(2) (L-N) 244 ā€“ 277 ā€“ 305 Vac
AC Output Voltage Minimum-Nominal-Maximum(2) (L-L) 422.5 ā€“ 480 ā€“ 529 Vac
AC Frequency Min-Nom-Max(2) 59.3 ā€“ 60 ā€“ 60.5 Hz
Maximum Continuous Output Current (per Phase) 36.25 Aac
GFDI Threshold 1 A
Utility Monitoring, Islanding Protection, Country Configurable Set Points Yes
Total Harmonic Distortion ? 3 %
Power Factor Range +/- 0.85 to 1
Maximum DC Power (Module STC) 52500 W
Transformer-less, Ungrounded Yes
Maximum Input Voltage DC+ to DC- 1000 Vdc
Operating Voltage Range 840 ā€“ 1000 Vdc
Maximum Input Current 36.25 Adc
Maximum Input Short Circuit Current 55 Adc
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection 167k? Sensitivity(3)
CEC Weighted Efficiency 98.5 %
Night-time Power Consumption <4 W
Supported Communication Interfaces 2 x RS485, Ethernet, Cellular (optional)
Inverter Commissioning With the SetApp mobile application using built-in access point for local connection
Arc Fault Protection Integrated, User Configurable (According to UL1699B)
Rapid Shutdown NEC2014, NEC2017 and NEC2020 compliant/certified
RS485 Surge Protection Plug-in Supplied with the inverter, Built-in
DC Surge Protection Type II, field replaceable, Built-in
AC Surge Protection Type II, field replaceable, Built-in
DC Fuses (Single Pole) 25A, Built-in
Smart Energy Management Export Limitation
DC Disconnect Integrated
Safety UL1741, UL1741 SA, UL1741 SB, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07
Grid Connection Standards IEEE1547-2018, Rule 21, Rule 14 (HI)
Emissions FCC Part 15 class A
AC Output Conduit Size / AWG Range Ā¾ā€ or 1ā€ / 6 ā€“ 10 AWG
DC Input Conduit Size / AWG Range Ā¾ā€ or 1ā€ / 6 ā€“ 12 AWG
Number of DC Inputs Pairs 4
Dimensions with Safety Switch (H x W x D) 31.8 x 12.5 x 11.8 in / 808 x 317 x 300 mm
Weight with Safety Switch 78.2 lb / 35.5 kg
Cooling Fans (user replaceable)
Noise < 62 dBA
Operating Temperature Range -40 to +140 / -40 to +60(4) ?F / ?C
Protection Rating NEMA 3R
Mounting Bracket provided
Warranty 12 years. Extendable to 20 Years
