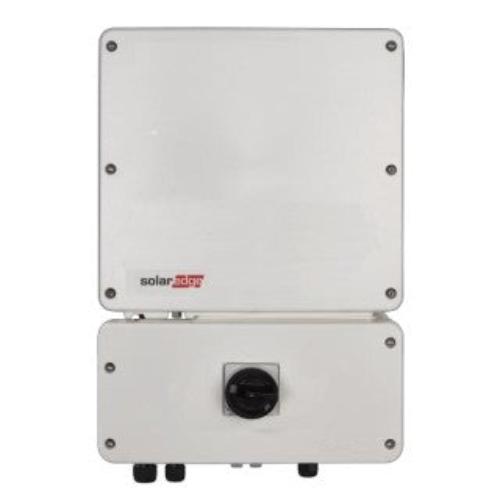

SolarEdge Home Wave 11.4kW Single-Phase Solar Inverter – SE11400H-US000BEU5
MPN No: SE11400H-US000BEU5
Contact us for Delivery Date
Out Of Stock
$1,404.00
SolarEdge Home Wave 11.4kW Single-Phase Solar Inverter – SE11400H-US000BEU5
SolarEdge Home Wave 11.4kW Single-Phase Solar Inverter – SE11400H-US000BEU5
Regular price
$1,404
SOLD OUT
SolarEdge Home Wave 11.4kW Single-Phase Solar Inverter – SE11400H-US000BEU5
SolarEdge Home Wave 11.4kW Single-Phase Solar Inverter – SE11400H-US000BEU5
Out Of Stock
MPN No: SE11400H-US000BEU5
Regular price
$1,404
Data Sheet
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$1,404
SolarEdge Home Wave 11.4kW Single-Phase Solar Inverter – SE11400H-US000BEU5
MPN No:
SE11400H-US000BEU5
Contact us for Delivery Date
Sold out
SolarEdge Home Wave Single-Phase Grid-Tied Solar Inverter
HD-Wave Technology | SolarEdge Power Optimizer Compatibility | SetApp Commissioning | Module-Level Monitoring | Integrated Rapid Shutdown | UL 1741 SB
The SolarEdge Home Wave SE11400H-US Single-Phase Solar Inverter is designed for residential and compatible light-commercial grid-tied photovoltaic systems. Featuring SolarEdge HD-Wave technology, the inverter delivers highly efficient DC-to-AC power conversion while working with compatible SolarEdge power optimizers to maximize solar energy production.
Its fixed-voltage architecture supports flexible solar array design, while integrated module-level monitoring gives homeowners and installers visibility into individual solar panel performance through the SolarEdge monitoring platform.
The Home Wave inverter also features smartphone-based SetApp commissioning, integrated arc-fault protection, automatic rapid shutdown functionality, and a weather-resistant enclosure suitable for indoor or outdoor installation.
Key Features and Benefits
- HD-Wave Technology: Delivers highly efficient solar power conversion using SolarEdge's advanced inverter architecture.
- Power Optimizer Integration: Designed to work with compatible SolarEdge DC power optimizers for module-level energy optimization.
- Module-Level Monitoring: Enables detailed solar panel performance visibility through the SolarEdge monitoring platform.
- SetApp Commissioning: Allows installers to configure and commission the inverter through a smartphone using its built-in local wireless access point.
- Fixed-Voltage Architecture: Supports flexible string design when used with approved SolarEdge power optimizers.
- Integrated Rapid Shutdown: Supports automatic rapid shutdown upon AC grid disconnection when installed with compatible equipment.
- Arc-Fault Protection: Includes integrated arc-fault detection and interruption functionality.
- Grid Protection: Incorporates anti-islanding protection and configurable utility interconnection settings.
- Smart Monitoring Connectivity: Supports Ethernet, RS485, and compatible optional wireless communication accessories.
- Optional Energy Metering: Supports compatible metering configurations for additional production and household energy monitoring.
- Natural Convection Cooling: Operates without a conventional cooling fan.
- Weather-Resistant Design: Suitable for indoor or outdoor mounting according to manufacturer requirements.
HD-Wave Technology for Efficient Solar Conversion
SolarEdge HD-Wave technology is designed to convert photovoltaic DC electricity into grid-compatible AC electricity with minimal conversion losses.
The inverter's efficient power conversion architecture helps homeowners maximize the value of energy generated by their solar array.
Its compact design and natural convection cooling also support straightforward equipment placement and reduced mechanical complexity.
SolarEdge Power Optimizer Integration
The Home Wave inverter is specifically engineered to operate with compatible SolarEdge power optimizers.
These optimizers manage photovoltaic module output individually, helping reduce energy losses associated with module mismatch, uneven soiling, and partial shading.
The inverter and optimizers work together through SolarEdge's fixed-voltage architecture, providing flexible string configuration and module-level performance management.
Important: This inverter is not intended for direct connection to conventional unoptimized PV strings. Compatible SolarEdge power optimizers are required, and their specific model compatibility must be verified.
Module-Level Solar Monitoring
SolarEdge monitoring provides detailed visibility into photovoltaic system operation, allowing installers and homeowners to review solar production and identify potential performance issues.
When paired with compatible power optimizers and an appropriately connected monitoring system, the inverter supports module-level production data and remote system diagnostics.
Optional metering equipment can provide additional insight into household electricity consumption and solar energy usage.
SetApp Smartphone Commissioning
The SolarEdge Home Wave inverter supports commissioning through the SolarEdge SetApp mobile application.
Installers can connect directly to the inverter's built-in local wireless access point to complete supported configuration, pairing, and commissioning procedures.
This local commissioning connection should not be confused with permanent wireless internet connectivity, which may require additional communication accessories.
Integrated Rapid Shutdown and Electrical Protection
The Home Wave includes automatic rapid shutdown functionality designed for use with compatible SolarEdge power optimizers and approved system configurations.
The inverter also includes integrated arc-fault protection, ground-fault detection, and anti-islanding functionality.
These protective features support safe system operation and help installers meet applicable photovoltaic electrical requirements when the complete installation is designed and configured correctly.
Grid-Tied Residential Solar Applications
The SolarEdge Home Wave is intended for grid-connected photovoltaic systems that use compatible SolarEdge power optimizers.
During normal operation, the inverter converts solar electricity into AC power for connected electrical loads and permitted grid export.
Because this is a grid-tied inverter, it automatically stops normal power production when the utility grid is unavailable. It does not independently provide battery charging or backup power during an outage.
Homeowners seeking battery storage or backup functionality should select a compatible SolarEdge storage and backup architecture rather than assuming those capabilities are included with this inverter.
Applications
- Residential rooftop solar installations
- Grid-connected home solar energy systems
- Compatible light-commercial photovoltaic installations
- Solar arrays using SolarEdge power optimizers
- Systems requiring module-level monitoring
- Solar installations with partial shading or complex roof layouts
- SolarEdge inverter replacement projects, subject to system compatibility
Product Specifications
| Specification | Details |
|---|---|
| General Specifications | |
| Manufacturer | SolarEdge |
| Series | Home Wave / HD-Wave |
| Model | SE11400H-US |
| MPN | SE11400H-US000BEU5 |
| Product Type | Single-phase grid-tied solar inverter |
| AC Power Rating | 11.4kW at 240V AC; 10.0kW at 208V AC |
| Inverter Architecture | Transformerless, fixed-voltage HD-Wave |
| Required PV Equipment | Compatible SolarEdge power optimizers |
| Battery Charging | Not integrated |
| Standalone Backup Power | Not supported as a standalone function |
| AC Output Specifications | |
| Rated AC Output at 240V | 11,400VA |
| Rated AC Output at 208V | 10,000VA |
| Maximum AC Output at 240V | 11,400VA |
| Maximum AC Output at 208V | 10,000VA |
| Nominal AC Voltage | 208V / 240V |
| AC Voltage Range at 240V Nominal | 211–264V AC |
| AC Voltage Range at 208V Nominal | 183–229V AC |
| Nominal AC Frequency | 60Hz |
| Published Frequency Range | 59.3–60.5Hz, subject to regional settings |
| Maximum Continuous AC Current at 240V | 47.5A |
| Maximum Continuous AC Current at 208V | 48.5A |
| Power Factor | 1.0; adjustable from 0.85 leading to 0.85 lagging |
| GFDI Threshold | 1A |
| Utility Monitoring and Anti-Islanding | Integrated |
| PV DC Input Specifications | |
| Maximum DC Power at 240V AC | 17,650W |
| Maximum DC Power at 208V AC | 15,500W |
| Maximum DC Input Voltage | 480V DC |
| Nominal DC Input Voltage | 380V DC |
| Maximum DC Input Current at 240V AC | 30.5A |
| Maximum DC Input Current at 208V AC | 27A |
| Maximum DC Short-Circuit Current | 45A |
| Supported DC String Connections | 1–3 strings |
| DC Conductor Range | 14–6 AWG |
| Maximum DC Conduit Size | 1 inch |
| Reverse-Polarity Protection | Integrated |
| Ground-Fault Isolation Detection | 600kΩ sensitivity |
| Efficiency | |
| Maximum Inverter Efficiency | 99.2% |
| CEC Weighted Efficiency at 240V | 99.0% |
| CEC Weighted Efficiency at 208V | 98.5% |
| Nighttime Power Consumption | Less than 2.5W |
| Monitoring and Communications | |
| Commissioning | SolarEdge SetApp |
| Local Commissioning Connection | Built-in Wi-Fi access point |
| Supported Communication Interfaces | RS485, Ethernet |
| Optional Communication Interfaces | ZigBee, SolarEdge Home Network, Wi-Fi, cellular |
| Monitoring Platform | SolarEdge monitoring platform |
| Module-Level Monitoring | Supported with compatible power optimizers |
| Consumption Metering | Optional; compatible equipment required |
| Revenue-Grade Production Metering | Optional; configuration-dependent |
| Protection and Certifications | |
| Rapid Shutdown | Automatic rapid shutdown upon AC grid disconnection with compatible system equipment |
| Arc-Fault Protection | Integrated |
| Safety Standards Listed | UL 1741, UL 1741 SA, UL 1741 SB, UL 1699B, CSA C22.2 |
| Grid Interconnection Standards | IEEE 1547-2018, California Rule 21, Hawaii Rule 14 |
| Emissions | FCC Part 15 Class B |
| Mechanical and Environmental Specifications | |
| Hardware Revision | BXX5 |
| Dimensions with Safety Switch (H × W × D) | 21.06 × 14.6 × 8.2 inches (535 × 370 × 208mm) |
| Weight with Safety Switch | 44.9 lbs (20.4kg) |
| Enclosure Rating | NEMA 4X, inverter with safety switch |
| Cooling | Natural convection |
| Noise | Less than 50dBA |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Full-Power Temperature Rating | Up to at least 122°F (50°C), subject to manufacturer derating specifications |
| AC Conductor Range | 14–4 AWG |
| Maximum AC Conduit Size | 1 inch |
| Maximum DC Conduit Size | 1 inch |
| Manufacturer Warranty | 12-year standard limited warranty; extensions up to 25 years may be available under SolarEdge terms |
Frequently Asked Questions
Does the SolarEdge Home Wave inverter require power optimizers?
Yes. This inverter is designed to operate with compatible SolarEdge power optimizers. Conventional solar panel strings should not be connected directly without the required optimizer architecture.
Is the SolarEdge Home Wave a hybrid inverter?
No. This model is a grid-tied solar inverter and does not include integrated battery charging or independent backup power functionality.
Will this inverter provide power during a grid outage?
No. The inverter automatically disconnects from the grid during an outage and cannot independently power household loads without a separately supported backup system architecture.
Does the inverter support module-level monitoring?
Yes. When used with compatible SolarEdge power optimizers and monitoring connectivity, it supports individual solar module performance monitoring.
Does the inverter have built-in Wi-Fi?
It includes a local wireless access point for SetApp commissioning. Ongoing wireless network connectivity may require an optional communication accessory.
Does the SolarEdge Home Wave support rapid shutdown?
Yes. It supports automatic rapid shutdown upon AC grid disconnection when installed with compatible SolarEdge power optimizers and the required system components.
Is this inverter UL 1741 SB compliant?
The manufacturer datasheet lists UL 1741 SB and IEEE 1547-2018 compliance. Confirm current firmware, certification records, and utility requirements for the installation location.
Can this inverter operate on different residential electrical services?
It supports the compatible single-phase electrical configurations specified by SolarEdge. Its available output capacity depends on the connected electrical service.
Does this inverter include consumption monitoring?
Consumption monitoring is optional and requires a compatible metering configuration. Do not assume the necessary meter or current transformers are included with this MPN.
Can this inverter replace an existing SolarEdge inverter?
Potentially. Replacement compatibility depends on the installed power optimizer models, electrical service, string design, monitoring equipment, and current SolarEdge requirements.
