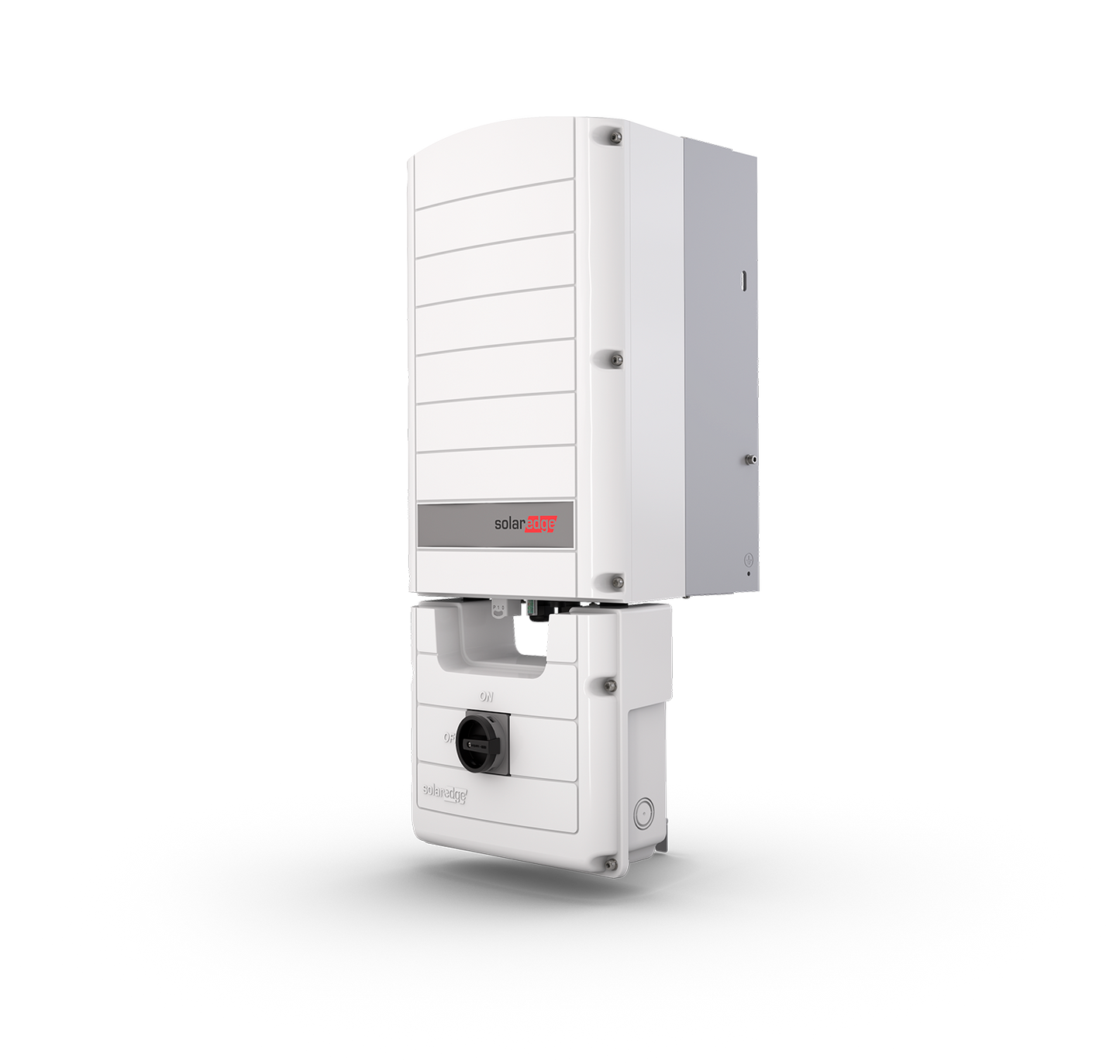

SolarEdge SE10KUS 120/208V Grid-Tie Three Phase String Inverter

SolarEdge SE10KUS 120/208V Grid-Tie Three Phase String Inverter

Regular price $2,900
Sale price $2,900 Regular price
SOLD OUT
Leave a Review

MPN No: SE10KUS

SolarEdge SE10KUS 120/208V Grid-Tie Three Phase String Inverter

SolarEdge SE10KUS 120/208V Grid-Tie Three Phase String Inverter

Regular price $2,900
Sale price $2,900 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
SolarEdge
Manufacturer
SolarEdge
Weight
78.2 lb
Dimension
31.8 x 12.5 x 11.8 inches

SolarEdge SE10KUS 120/208V Grid-Tie Three Phase String Inverter

Presenting the SolarEdge SE10KUS, an advanced 120/208V grid-tie three-phase string inverter designed for unparalleled efficiency and integration with power optimizers. Tailored for North American solar systems, this inverter exemplifies cutting-edge technology for commercial applications.

  • Exceptional efficiency with fixed voltage inverter technology for longer string design.
  • Easy commissioning via smartphone with the SolarEdge SetApp, enhancing user experience.
  • Built-in type 2 DC and AC Surge Protection for robust defense against lightning events.
  • Compact and lightweight, facilitating simple outdoor or indoor installations.
  • Comprehensive safety features including integrated arc fault protection and rapid shutdown.

Technology and Overview

The SE10KUS utilizes fixed voltage technology to maximize system efficiency, coupled with SolarEdge's power optimizers for increased energy output and monitoring capabilities. This inverter is designed to meet rigorous standards including NEC 2014, 2017, and 2020 for safety and performance.

Installation and Compatibility Overview

Featuring a user-friendly installation process, the SE10KUS supports various mounting options and is equipped for both outdoor and indoor settings. Its wireless communication ensures seamless integration with the SolarEdge monitoring platform.

Benefits and Applications Overview

This inverter offers significant cost savings through optimized energy production and management. Ideal for commercial solar installations, the SE10KUS contributes to sustainability goals with its advanced technology and compatibility with various solar applications.

Specifications

Specification Value
Model No. (Applicable to inverters with part number - SEXXK-USX2IXXXX) SE10KUS
Rated AC Power Output 10000 W
Maximum Apparent AC Output Power 10000 VA
AC Output Line Connections 3W + PE, 4W + PE
AC Output Voltage Minimum-Nominal-Maximum(2) (L-N) 105 ā€“ 120 ā€“ 132.5 Vac
AC Output Voltage Minimum-Nominal-Maximum(2) (L-L) 183 ā€“ 208 ā€“ 229 Vac
AC Frequency Minimum-Nominal-Maximum(2) 59.3 ā€“ 60 ā€“ 60.5 Hz
Continuous Output Current (per Phase) 27.8 Aac
GFDI Threshold 1 A
Utility Monitoring, Islanding Protection, Country Configurable Set Points Yes
THD ? 3 %
Power Factor Range +/- 0.85 to 1
Maximum DC Power (Module STC) 17500 W
Transformer-less, Ungrounded Yes
Maximum Input Voltage DC+ to DC- 600 Vdc
Operating Voltage Range 370 ā€“ 600 Vdc
Maximum Input Current 27.8 Adc
Maximum Input Short Circuit Current 55 Adc
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection 167k? Sensitivity(3)
CEC Weighted Efficiency 97%
Night-time Power Consumption < 4 W
Supported Communication Interfaces 2 x RS485, Ethernet, Cellular (optional)
Inverter Commissioning With the SetApp mobile application using built-in Wi-Fi access point for local connection
Rapid Shutdown NEC2014, NEC2017 and NEC2020 compliant/certified
RS485 Surge Protection Plug-in Supplied with the inverter, Built-in
AC, DC Surge Protection Type II, field replaceable, Built-in
DC Fuses (Single Pole) 25A, Built-in
Smart Energy Management Export Limitation
DC Disconnect Integrated
Safety UL1741, UL1741 SA, UL1741 SB, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07
Grid Connection Standards IEEE1547-2018, Rule 21, Rule 14 (HI)
Emissions FCC part15 class A
AC Output Conduit size /AWG range Ā¾ā€ or 1ā€ / 6 - 10 AWG
DC Input Conduit size / AWG range Ā¾ā€ or 1ā€ / 6 - 12 AWG
Number of DC inputs pairs 4
Dimensions with Safety Switch (H x W x D) 31.8 x 12.5 x 11.8 in / 808 x 317 x 300 mm
Weight with Safety Switch 78.2 lb / 35.5 kg
Cooling Fans (user replaceable)
Noise < 62 dBA
Operating Temperature Range -40 to +140 / -40 to +60(4) ?F / ?C
Protection Rating NEMA 3R
Mounting Bracket provided
Warranty 12 years. Extendable to 20 Years
