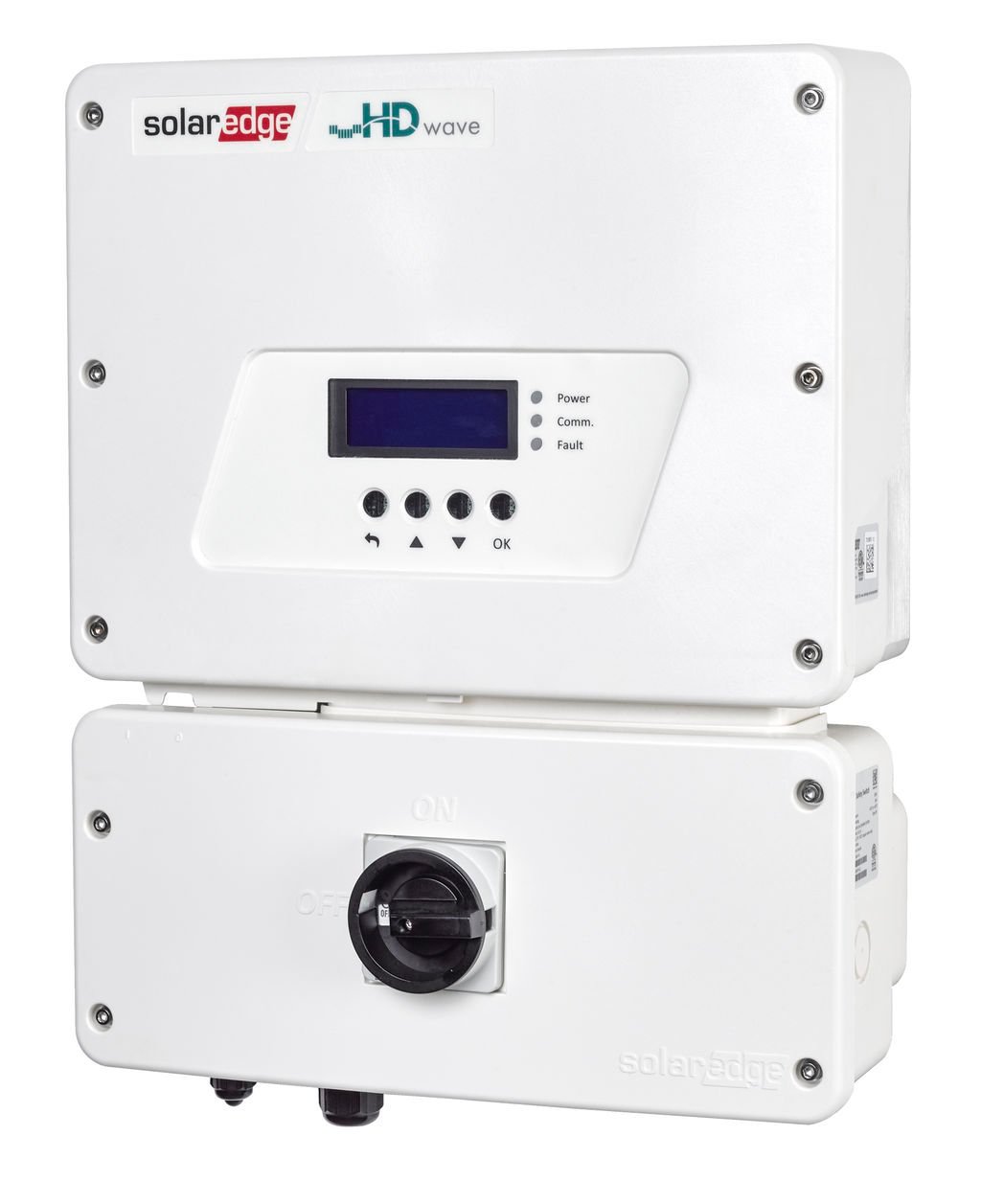

SolarEdge SE10000H-US Single Phase String Inverter with HD-Wave Technology

Explore the cutting-edge SolarEdge SE10000H-US, a single-phase string inverter enhanced with HD-Wave Technology. This powerhouse is engineered for residential solar systems seeking maximum efficiency, offering an innovative solution to solar energy conversion.

  • Unmatched 99% weighted efficiency, setting industry standards for performance.
  • Compatible with SolarEdge power optimizers for enhanced energy output and monitoring.
  • Integrated safety with arc fault protection and rapid shutdown capabilities.
  • Designed for easy installation in indoor or outdoor environments.
  • Supports direct integration with SolarEdge's monitoring platform for real-time insights.

Technology and Overview

Employing HD-Wave Technology, the SE10000H-US achieves top efficiency by significantly reducing the size and weight of the inverter, while maintaining a clean energy output. Its smart energy management optimizes both production and consumption.

Installation and Compatibility Overview

With its compact design, the SE10000H-US offers flexible installation options and is easily integrated into existing solar systems, making it a versatile choice for homeowners.

Benefits and Applications Overview

The SE10000H-US not only elevates the efficiency of solar installations but also contributes to a sustainable energy future, with significant cost savings and reduced environmental impact.

Specifications

Specification Value
Model No. SE10000H-US
Rated AC Power Output 10000 V
Maximum AC Power Output 10000 V
AC Output Voltage Min.-Nom.-Max. 211 - 240 - 264 Vac
AC Frequency (Nominal) 59.3 - 60 - 60.5(1) Hz
Maximum Continuous Output Current @240V 42 A
GFDI Threshold 1 A
Utility Monitoring, Islanding Protection,
Country Configurable Thresholds		 Yes
Maximum DC Power @240V 15500 W
Transformer-less, Ungrounded Yes
Maximum Input Voltage 480 Vdc
Nominal DC Input Voltage 400 Vdc
Maximum Input Current @240V(2) 27 Adc
Max. Input Short Circuit Current 45 Adc
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection 600k   Sensitivity
Maximum Inverter Efficiency 99.20%
CEC Weighted Efficiency 99%
Nighttime Power Consumption < 2.5 W
Supported Communication Interfaces RS485, Ethernet, ZigBee (optional), Cellular (optional)
Revenue Grade Data, ANSI C12.20 Optional(3)
Rapid Shutdown - NEC 2014 and 2017 690.12 Automatic Rapid Shutdown upon AC Grid Disconnect
Safety UL1741, UL1741 SA, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07
Grid Connection Standards IEEE1547, Rule 21, Rule 14 (HI)
Emissions FCC Part 15 Class B
AC Output Conduit Size / AWG Range 1" Maximum /14-4 AWG
DC Input Conduit Size / # of Strings / AWG Range 1" Maximum / 1-3 strings / 14-6 AWG
Dimensions with Safety Switch (HxWxD) 21.3 x 14.6 x 7.3 in / 540 x 370 x 185 mm
Weight with Safety Switch 38.8 lb / 17.6 kg
Noise <50 dBA
Cooling Natural Convection
Operating Temperature Range -13 to +140 / -25 to +60(4) (-40?F / -40?C option)(5)
Protection Rating NEMA 4X (Inverter with Safety Switch)
Warranty 12 years. Extendable to 25 Years
