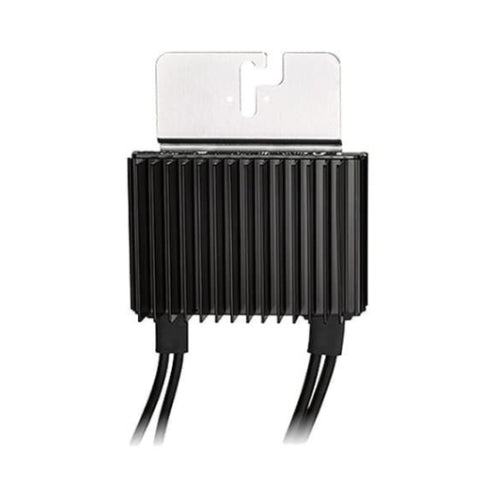

SolarEdge S500 SERIES-SXX DC Optimizer 500W MAX VOC 60V MC4 Type Input/Output
SolarEdge S500 SERIES-SXX DC Optimizer 500W MAX VOC 60V MC4 Type Input/Output

SolarEdge S500 SERIES-SXX DC Optimizer 500W MAX VOC 60V MC4 Type Input/Output
SolarEdge S500 SERIES-SXX DC Optimizer 500W MAX VOC 60V MC4 Type Input/Output
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience

SolarEdge S500 SERIES-SXX DC Optimizer 500W MAX VOC 60V MC4 Type Input/Output
S500
Specifications
SolarEdge S500 S Series Power Optimizer 500W MAX VOC 60V MC4 Type Input/Output
Introducing the SolarEdge S500 DC Optimizer, part of the SERIES-SXX lineup. With a powerful 500W rating and a maximum VOC (Voltage Open Circuit) of 60V, this optimizer is designed to enhance the performance of your solar installation. The MC4 Type Input/Output ensures compatibility with standard connectors, providing a reliable solution for optimizing your solar system.
Key Features
Module-Level MPPT: Maximizes energy production from each individual solar panel.
Module-Level Monitoring: Provides real-time performance data for each panel.
Enhanced Safety: Includes voltage cut-off and detection of abnormal PV connector behavior.
Increased Energy Yield: Minimizes power losses due to shading and module mismatch.
Flexible System Design: Allows for varied panel orientations and installations.
SolarEdge Inverter Compatibility: Designed to work specifically with SolarEdge inverters.
High Efficiency: Ensures minimal power conversion losses.
Technology and Overview
The SolarEdge S500 DC Optimizer is equipped with advanced technology to maximize the efficiency of your solar installation. With a focus on optimizing energy production, this optimizer ensures that each solar panel operates at its peak, contributing to overall system performance and increased energy harvest.
Installation and Compatibility
Installing the SolarEdge S500 is straightforward, and its MC4 Type Input/Output design ensures compatibility with standard connectors commonly used in solar installations. This DC optimizer is suitable for various solar panel configurations and enhances the overall performance of your solar system.
Benefits and Applications
The SolarEdge S500 DC Optimizer offers numerous benefits for solar installations. Optimizing energy production and ensuring compatibility with standard connectors provide a reliable solution for homeowners and businesses seeking to maximize the efficiency of their solar systems.
About SolarEdge:
SolarEdge is a global leader in smart energy technology, known for its innovative inverter systems that maximize solar power generation at the module level. Founded in 2006, the company offers a wide range of solutions for residential, commercial, and utility-scale solar, including power optimizers, inverters, energy storage, and EV charging. SolarEdge systems are installed in over 140 countries, driving clean energy forward worldwide.
SolarEdge S500 S Series Power Optimizer - At a Glance
Feature | Details | What It Means For You |
---|---|---|
Power Input (From Solar Panel) | ||
Max Panel Power | 500 Watts | Handles panels up to 500W. |
Max Input Voltage | 125 Volts | Maximum voltage the optimizer can handle. |
MPPT Operating Range | 12.5 - 105 Volts | The voltage range where it optimizes power. |
Max Input Current | 15 Amps | Maximum current from the panel. |
Connector Type | MC4 Compatible | Standard solar panel connectors. |
Power Output (To Inverter) | ||
Max Output Current | 15 Amps | Maximum current sent to the inverter. |
Max Output Voltage | 80Vdc | Maximum Voltage that is sent to the inverter. |
Performance | ||
Max Efficiency | 99.5% | Very little power is lost in the conversion. |
Weighted Efficiency | 98.6% | Real world efficiency rating. |
Key Features | ||
Module-Level MPPT | Yes | Each panel works at its best, even with shade. |
Module-Level Monitoring | Yes | See how each panel is performing. (Requires SolarEdge monitoring) |
Enhanced Safety | Voltage cut-off, Abnormal Connector Detection | Added installer and firefighter safety. |
Increased Energy | Minimizes shading and mismatch losses | More power from your system. |
Flexible Design | Allows different panel layouts | Easier installation in tricky spots. |
Installation & Compatibility | ||
Compatible Inverters | SolarEdge Inverters | Works only with SolarEdge inverters. |
Operating Temperature | -40°F to +185°F (-40°C to +85°C) | Works in most climates. |
Protection Rating | IP68 | Dust-tight and waterproof. |
Physical | ||
Dimensions | 5.1 x 6.5 x 1.8 inches | Size of the device. |
Weight | 1.7 lbs | Weight of the device with cables. |
Warranty | 25 Years | Long term product reliability. |
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-year product warranty and 30-year linear power warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
SolarEdge S500 Series-SXX DC Optimizer – FAQ
Is the SolarEdge S500 DC Optimizer compatible with my solar panels?
Yes, the SolarEdge S500 is designed to work with a wide range of solar panels, supporting a maximum input voltage (Voc) of 60V and a maximum input current (Isc) of 15A. Your installer will determine the optimal configuration based on your specific system requirements.
Do I need a SolarEdge inverter to use the S500 Optimizer?
Yes, the S500 is specifically designed to work with SolarEdge inverters. Pairing it with a SolarEdge inverter ensures seamless communication and optimal performance.
How do I monitor the performance of my SolarEdge S500 Optimizers?
The S500 Optimizers enable module-level monitoring through the SolarEdge monitoring platform, accessible via a web portal or mobile app. This allows you to track the performance of each individual panel in real-time.
What safety features does the SolarEdge S500 Optimizer offer?
The S500 includes several safety features, such as:
-
Module-level voltage shutdown: Reduces voltage to a safe level during installation or in the event of an emergency.
-
Detection of abnormal PV connector behavior: Identifies potential safety issues related to connectors.
How do I maintain the SolarEdge S500 Optimizer?
The S500 requires minimal maintenance. It's recommended to periodically check for error messages through the monitoring platform and ensure that all connections remain secure.
What are the key specifications of the SolarEdge S500 Optimizer?
-
Maximum Output Power: 500W
-
Maximum Input Voltage (Voc): 60V
-
Maximum Input Current (Isc): 15A
What communication protocols does the SolarEdge S500 Optimizer use?
The S500 communicates with the SolarEdge inverter via proprietary power line communication (PLC), facilitating module-level monitoring and performance optimization.
