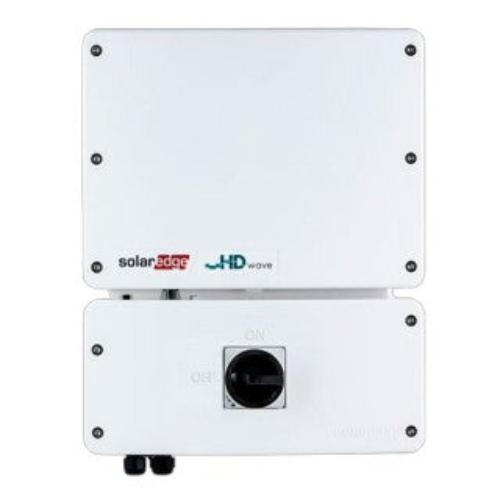

SolarEdge Energy Hub HD-Wave Hybrid Inverter with Revenue-Grade Metering

HD-Wave Technology | Battery Storage Ready | Revenue-Grade Production Metering | SolarEdge Optimizer Integration | Optional Home Backup

The SolarEdge Energy Hub HD-Wave Hybrid Inverter with Prism Technology combines high-efficiency solar power conversion, battery storage integration, and advanced energy management in a compact residential inverter.

Designed for grid-connected solar installations, the Energy Hub provides a flexible platform for homeowners who want to generate solar electricity today while supporting compatible battery storage, home energy monitoring, and future backup power capabilities.

With integrated revenue-grade production metering, SolarEdge power optimizer compatibility, and support for the SolarEdge monitoring ecosystem, this inverter delivers a comprehensive solution for residential solar energy management.

Key Features and Benefits

• Hybrid solar inverter: Combines grid-tied solar power conversion with compatible DC-coupled battery storage integration.
• HD-Wave technology: Provides highly efficient DC-to-AC conversion in a compact inverter design.
• Battery storage ready: Supports approved SolarEdge and LG battery systems with the required firmware and equipment.
• Optional home backup: Can provide backup power when installed with compatible batteries and a separately purchased SolarEdge Backup Interface.
• Revenue-grade production metering: Includes integrated solar production measurement capabilities.
• Consumption monitoring: Supports household energy usage monitoring with separately purchased current transformers.
• SolarEdge power optimizer integration: Designed for compatible SolarEdge module-level power electronics.
• Integrated arc-fault protection: Includes protective functionality for supported photovoltaic installations.
• Rapid shutdown support: Designed to work with compatible SolarEdge equipment for code-compliant rapid shutdown installations.
• Smart EV charging integration: Supports direct connection to compatible SolarEdge EV charging equipment.
• SetApp commissioning: Enables installer configuration through SolarEdge's mobile commissioning platform.
• Scalable system design: Supports compatible multi-inverter energy storage installations.
• Outdoor-rated enclosure: Designed for installation in suitable indoor or outdoor environments.

High-Efficiency HD-Wave Solar Power Conversion

SolarEdge HD-Wave technology is designed to deliver highly efficient photovoltaic power conversion while reducing inverter size and weight.

The Energy Hub converts DC electricity generated by compatible solar modules into AC power for household consumption and grid interaction.

Its high-efficiency design helps minimize conversion losses and maximize the useful electricity produced by a properly configured solar array.

HD-Wave Advantages

• Efficient solar power conversion.
• Compact residential installation footprint.
• Quiet operation through natural convection cooling.
• Integration with compatible SolarEdge power optimizers.
• Advanced solar production monitoring.

Battery Storage Integration with Prism Technology

The SolarEdge Energy Hub is designed to integrate solar generation and compatible battery storage within a coordinated energy management system.

Its DC-coupled architecture allows supported batteries to work with the solar installation for energy storage and later use.

This configuration helps homeowners increase their use of self-generated solar electricity and provides a foundation for future backup capabilities.

Battery Storage Benefits

• Store excess solar energy for later consumption.
• Support increased solar self-consumption.
• Manage battery charging through compatible SolarEdge controls.
• Integrate approved battery equipment with solar production monitoring.
• Prepare the system for optional backup power.

Battery compatibility: The manufacturer's documentation identifies SolarEdge Energy Bank and LG RESU Prime battery families for supported configurations. Confirm exact battery models, firmware requirements, and current manufacturer compatibility before installation.

Optional Whole-Home or Partial-Home Backup

The Energy Hub can support home backup functionality when combined with the required SolarEdge battery and backup equipment.

During a utility outage, a properly configured backup system can isolate the home from the grid and supply designated electrical loads using available stored energy and supported solar generation.

The SolarEdge Backup Interface manages the necessary grid isolation and backup operating functions.

Backup System Requirements

• Compatible SolarEdge Energy Hub inverter.
• Approved battery storage equipment.
• Separately purchased SolarEdge Backup Interface.
• Compatible system configuration and firmware.
• Properly designed backup loads and electrical distribution.
• Professional installation and commissioning.

Important: The inverter alone does not provide automatic backup during a power outage. Backup operation requires additional equipment, and the manufacturer specifies that AC power is required for initial commissioning.

Integrated Revenue-Grade Production Metering

The Energy Hub includes embedded revenue-grade solar production metering, providing accurate measurement of electricity generated by the photovoltaic system.

Revenue-grade production measurement can be useful for system performance verification and programs that accept the inverter's metering configuration.

The inverter also supports household consumption monitoring when compatible external current transformers are installed.

Energy Monitoring Capabilities

• Measure solar electricity production.
• Monitor system performance through supported SolarEdge platforms.
• Support household consumption monitoring with additional sensors.
• View compatible battery operating information.
• Track solar energy use and grid interaction with the required metering equipment.

Note: Revenue-grade production metering is integrated. Consumption current transformers are separate accessories, and acceptance for utility or incentive programs depends on the applicable program requirements.

SolarEdge Power Optimizer Compatibility

The Energy Hub is designed to operate with compatible SolarEdge power optimizers, enabling module-level photovoltaic power management.

Power optimizers allow supported solar modules to operate with individual maximum power point tracking while providing module-level monitoring and safety functions through the SolarEdge ecosystem.

Optimizer System Advantages

• Module-level power optimization.
• Enhanced visibility into solar panel performance.
• Support for compatible rapid shutdown configurations.
• Flexible array design within SolarEdge system requirements.
• Integration with SolarEdge monitoring tools.

SolarEdge power optimizers are required for supported photovoltaic configurations and are not included unless expressly stated in the product package.

Smart EV Charging Integration

The Energy Hub supports direct connection to compatible SolarEdge smart EV charging equipment.

This allows the solar installation and supported EV charging hardware to operate within the SolarEdge energy management ecosystem.

Actual charging functionality depends on the installed charger, available electrical capacity, system configuration, and supported software features.

The EV charger is sold separately.

SetApp Commissioning and System Monitoring

SolarEdge SetApp provides a mobile-based commissioning process for compatible Energy Hub installations.

Installers can use the inverter's local wireless access point to perform supported setup, configuration, and commissioning tasks.

The inverter also supports multiple communication interfaces for integration with SolarEdge monitoring equipment and services.

Monitoring and Communication Features

• Mobile commissioning through SetApp.
• Ethernet connectivity.
• RS485 communication.
• Optional wireless communication accessories.
• Supported cellular connectivity.
• Integration with SolarEdge monitoring platforms.

Integrated Solar Safety Features

The Energy Hub incorporates protective features designed for compatible residential photovoltaic and battery installations.

Safety and Protection Features

• Integrated arc-fault protection.
• Rapid shutdown support with compatible equipment.
• Ground-fault detection.
• DC reverse-polarity protection.
• Anti-islanding protection.
• Utility monitoring.
• Integrated AC and DC connection unit.
• Outdoor-rated enclosure.

System-level safety and code compliance depend on the complete installation, including compatible optimizers, batteries, disconnects, wiring, and other required equipment.

Ideal Applications

• Residential grid-tied solar installations.
• Home solar systems with battery storage.
• Solar installations designed for future battery expansion.
• Whole-home or partial-home backup systems with required equipment.
• Residential solar self-consumption applications.
• SolarEdge optimizer-based photovoltaic systems.
• Homes integrating compatible smart EV charging.
• Solar installations requiring revenue-grade production metering.

Product Specifications

Installation and Compatibility Considerations

The SolarEdge Energy Hub must be installed as part of a compatible SolarEdge photovoltaic system.

Solar array design, optimizer selection, battery integration, and backup configuration must follow current SolarEdge installation documentation.

Before Installation

• Confirm compatibility with the selected SolarEdge power optimizers.
• Verify solar array voltage and current requirements.
• Confirm approved battery models and firmware versions.
• Select the appropriate SolarEdge Backup Interface if backup operation is required.
• Order external current transformers when household consumption monitoring is desired.
• Confirm utility interconnection requirements.
• Follow applicable electrical codes and SolarEdge installation instructions.

Package clarification: This listing describes the Energy Hub inverter with its integrated connection unit and production metering capability. Batteries, Backup Interface, power optimizers, EV charger, and external consumption current transformers are not included unless separately specified.
