CELL-B-R05-US-T-S5

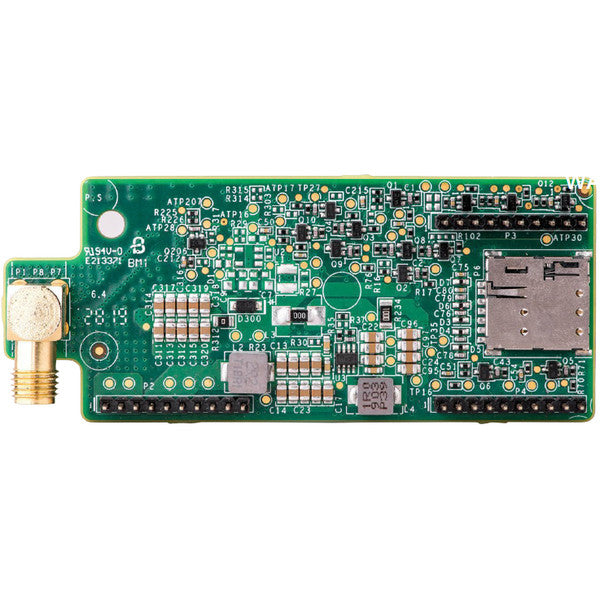

SolarEdge CELL-B-R05-US-T-S5 Cellular Plug-in with 5-Year Data Plan
Enhance your SolarEdge system's connectivity with the CELL-B-R05-US-T-S5 Cellular Plug-in, offering a robust 5-year data plan for uninterrupted internet connectivity. This plug-in is designed for both commercial and residential installations, ensuring your SolarEdge inverters stay connected for optimal performance monitoring and management without the need for on-site internet infrastructure.
- Seamless integration with SetApp-enabled SolarEdge inverters.
- Provides a continuous, high-bandwidth connection for monitoring inverters, power optimizers, EV chargers, batteries, meters, and weather stations.
- Easy installation within the inverter enclosure, designed for outdoor resilience.
- Includes a 5-year prepaid data plan, offering comprehensive coverage in the US and Canada.
- Supports remote analysis and troubleshooting, enhancing system reliability and performance.
Technology and Overview
The CELL-B-R05-US-T-S5 utilizes LTE Cat M1 technology, providing a stable and efficient data connection. It's specifically designed to meet the needs of SolarEdge's ecosystem, facilitating advanced, real-time monitoring and control of your solar energy system.
Installation and Compatibility Overview
This cellular plug-in is effortlessly installed within the inverter’s enclosure, ensuring a secure and weather-resistant fit. It's compatible with a wide range of SolarEdge SetApp-enabled inverters, offering a versatile solution for different system sizes and configurations.
Benefits and Applications Overview
With the CELL-B-R05-US-T-S5, users benefit from enhanced system monitoring and management capabilities, leading to improved energy production and system health. Its comprehensive connectivity solution supports a wide array of SolarEdge devices, making it an essential component for modern solar installations.
Specifications
| Specification | Value |
| Model No. | CELL-B-R05-US-T-S5 |
| Monitoring | Continuous connection with 5 minute telemetry from all connected inverters |
| Supported Power of Commercial Systems | Up to 1000kW AC (for CELL-B-R05-xx-x-S5) kW AC |
| Number of Monitored Inverters with a single Cellular Plug-in | Commercial: Up to 32 inverters, limited by the system AC size(2) Residential: 1 inverter |
| RF PERFORMANCE | Please refer Operating Frequency Chart (Band / Transmit) in Product Datasheet |
| Bandwidth | 1.4, 3, 5(4) MHz |
| Maximum Transmit Power | 23 dBm |
| Receiver Input Sensitivity (CE Mode A) | -107 dBm |
| Modulation | Downlink: QPSK\16QAM\64QAM, Uplink: QPSK\16QAM |
| Dual Antenna Bands | 1710-2170 MHz |
| Antenna Type | Outdoor |
| Antenna Connector | RP-SMA or N plug(5) |
| VSWR | ?4.0 |
| Gain | 2 dBi |
| Polarization | Vertical |
| Material | PC Lexan 503R-WH5151L or WH8G952 Sabic |
| Dimensions (Length x Diameter) | 7.87 x 0.78 / 200 x 20 in / mm |
| Antenna Cable length - CELL-B-R05-xx-T-Sx(6) | 71 / 180 in / mm |
| EMC and Radio | FCC parts 15, 22, 24 class B; Industry Canada (IC):ICS-003, RSS-102 AS/CA S042.4 Requirements for connection to an airinterface of a Telecommunications Network Part 4: IMT Customer Equipment |
| Safety | cUL, UL60950 |
| RoHS | Yes |
| Dimensions (L x W x H) | 3.07 x 1.27 x 0.56 in / 78.2 x 32.5 x 14.2 mm |
| Operating Temperature | -40 to +85 °C / -40 to +185 °F |
| Mounting | Built into the inverter or purchased separately |
| Power consumption | 0.85 W (@23 dBm output power) |
| SIM CARD HOLDER Type | Nano Sim |
| Warranty | 5 Years |
