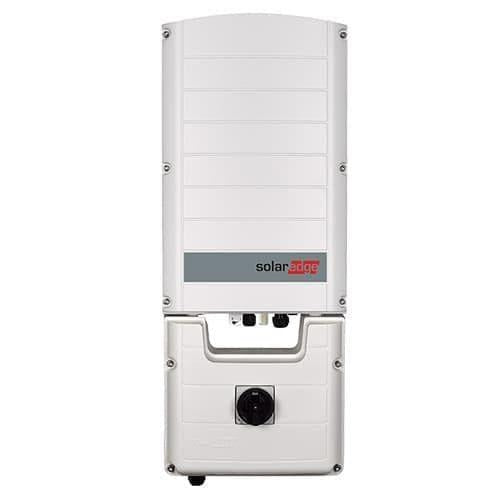

SolarEdge 10 kW 3 Phase Inverter Domestic Content USE-SIN-USR0IBNS8
MPN No: USE-SIN-USR0IBNS8
Contact us for Delivery Date
Out Of Stock
$3,575.15
SolarEdge 10 kW 3 Phase Inverter Domestic Content USE-SIN-USR0IBNS8
SolarEdge 10 kW 3 Phase Inverter Domestic Content USE-SIN-USR0IBNS8
Regular price
$3,575.15
New
SOLD OUT
SolarEdge 10 kW 3 Phase Inverter Domestic Content USE-SIN-USR0IBNS8
SolarEdge 10 kW 3 Phase Inverter Domestic Content USE-SIN-USR0IBNS8
Out Of Stock
MPN No: USE-SIN-USR0IBNS8
Regular price
$3,575.15
Contact us for Delivery Date
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3,575.15
SolarEdge 10 kW Three Phase Inverter Domestic Content Compliant USE-SIN-USR0IBNS8
The USE-SIN-USR0IBNS8 is a U.S.-manufactured, optimizer-ready three-phase inverter for C&I rooftops and carports. It features fixed-DC-voltage architecture, SetApp smartphone commissioning, integrated DC safety switch, and built-in Type II DC & AC surge protection. Power Output: 10,000 Watts.
Key Benefits
Domestic Content Path: Intended to be eligible for the U.S. domestic-content bonus when paired with qualified U.S.-made SolarEdge power optimizers (C651U), per IRS notices (see datasheet table).
Optimizer-Based Design: Longer strings and superior energy harvest with module-level monitoring.
Fast Commissioning: Quick setup via SolarEdge SetApp using the inverter’s built-in access point.
Integrated Protection: Arc-fault protection, PVRSS rapid shutdown (with C651U), and replaceable Type II SPDs on DC/AC.
Outdoor-Ready: NEMA 3R enclosure, −40 to +60 °C operation (with thermal derating above 60 °C note).
Special Technology
Fixed DC Voltage Topology: High efficiency with long strings across varying conditions.
Energy Intelligence: Two RS485 ports, Ethernet, and optional cellular enable fleet-level visibility and export limitation.
Warranty
12–20 Year Manufacturer Warranty (per datasheet program).
Best Uses
Commercial Rooftops & Carports: Optimizer-based arrays needing long strings, module-level insight, and integrated safety.
Specifications Table
| Specification | Data |
|---|---|
| Part / Model | USE-SIN-USR0IBNS8 · SE10KUS class |
| Rated AC Power | 10,000 W |
| Max Apparent Power | 10,000 VA |
| AC Grids | WYE: TN-C/TN-S/TN-C-S/TT/IT; Delta: IT |
| AC Voltage (L-L) | 208 Vac (183–208–229) · 480 Vac (422.5–480–529) |
| Max Continuous Output Current | 27.8 A per phase (SE10KUS rating) |
| Power Factor / THD | ±0.85 to 1 / ≤3% |
| Max DC Power (STC) | 17,500 W |
| Max/Operating DC Voltage | 600 Vdc max · 370–600 Vdc operating |
| DC Inputs | 3 fused-less input pairs; reverse-polarity & isolation monitoring |
| CEC Weighted Efficiency | 97% (SE10KUS) |
| Rapid Shutdown / AFCI | NEC 2014–2023 PVRSS (with C651U) · Integrated AFCI (UL 1699B) |
| Surge Protection | Type II DC & Type II AC, field-replaceable |
| Communications | 2× RS485, Ethernet, optional cellular; SetApp commissioning |
| Enclosure / Cooling / Noise | NEMA 3R · Fan-cooled · < 62 dBA |
| Operating Temperature | −40 to +60 °C (derating per tech note) |
| Dimensions (H × W × D) | 31.8 × 12.5 × 11.8 in |
| Weight | 78.2 lb |
| Compliance | UL 1741 SA/SB, IEEE 1547-2018, Rule 21, Rule 14(HI), FCC Part 15 Class A |
| Domestic Content Note | Listed in datasheet as intended-eligible for domestic content bonus when paired with C651U; see IRS Notices 2024-41 & 2025-08 guidance table. |
About SolarEdge:
SolarEdge Technologies, founded in 2006 in Israel, is a global leader in smart energy. They pioneered DC‑optimized solar inverters paired with module‑level power optimizers that boost system performance, increase safety, and simplify monitoring. Serving residential, commercial, and utility-scale markets, SolarEdge also offers storage, EV charging, UPS, grid services, and energy management platforms. They support over 47,000 installers in 34 countries with solutions deployed in 140+ nations.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-20 year standard product warranty.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the USE-SIN-USR0IBNS8 compatible with my solar panels?
Yes. The USE-SIN-USR0IBNS8 is designed to work with SolarEdge optimizers and a wide range of solar panels. Compatibility depends on the panel voltage, power rating, and optimizer pairing. Your installer will confirm the optimal configuration for your array.
Do I need a battery to use the USE-SIN-USR0IBNS8?
No battery is required. This unit can operate as part of a standard grid-tied SolarEdge system. However, adding a SolarEdge Energy Bank or other compatible battery enables backup power and energy storage functionality.
How do I monitor the performance of the USE-SIN-USR0IBNS8?
The system connects to the SolarEdge monitoring platform (via Ethernet, Wi-Fi, or cellular, depending on setup). You can monitor power production, system health, and energy storage (if applicable) through the SolarEdge mobile app or web portal.
What happens if there is a power outage?
If the system includes a battery and backup interface, it will automatically switch to backup mode and power selected loads. Without a battery or backup interface, the system shuts down during a grid outage for safety.
How do I maintain the USE-SIN-USR0IBNS8?
Minimal maintenance is required. Ensure that the unit is clean, free of obstructions, and well-ventilated. Check periodically for alerts on the monitoring platform. Your installer may recommend scheduled inspections.
What is the efficiency of the USE-SIN-USR0IBNS8 (Synergy Manager)?
SolarEdge inverters are known for high efficiency (typically around 97–99%). For precise values, refer to the official SolarEdge datasheet for your exact model configuration.
What are the input and output voltage ranges?
The model is designed for 208–240 V AC output operation in North America. DC input details depend on the connected Synergy inverter modules and optimizers. Full specifications are available in the SolarEdge technical documentation.
What communication protocols does the USE-SIN-USR0IBNS8 support?
The system typically supports Ethernet (standard), Wi-Fi (optional), RS485, and Zigbee or cellular with additional accessories. Refer to the product manual for more detailed communication options.
