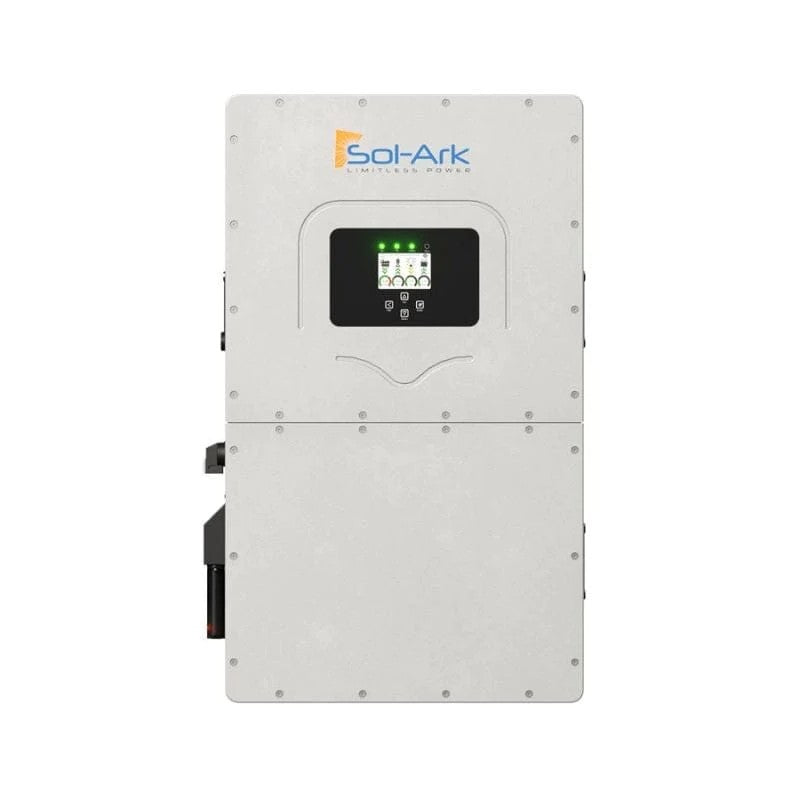

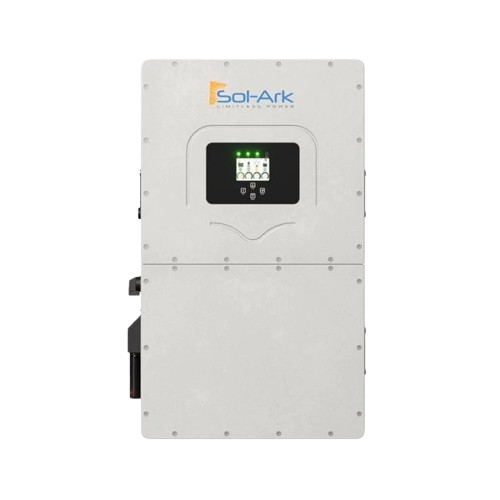

Sol-Ark 60kW 3-Phase All-in-One Hybrid Inverter – High Voltage 480V | 60K-3P-480V

The Sol-Ark 60K-3P-480V is a commercial-grade, all-in-one hybrid inverter designed for 480V three-phase solar + storage systems. Built to integrate PV, batteries, generators, and the grid into a single platform, this inverter supports large commercial, industrial, and microgrid applications requiring high power density, flexibility, and reliability.

Key Features

• 60 kW continuous AC output

• 480V three-phase commercial inverter

• All-in-one hybrid design: solar, battery, grid, and generator integration

• High-voltage battery compatibility (commercial BESS systems)

• Supports AC-coupled and DC-coupled solar

• Advanced energy management for peak shaving, backup, and load shifting

• Integrated monitoring and controls for commercial energy systems

Commercial-Grade Hybrid Architecture

The 60K-3P-480V is designed as a true hybrid inverter, enabling:

• Solar self-consumption optimization

• Battery-based backup power

• Peak demand shaving and TOU optimization

• Microgrid and islanding operation

• Generator integration for extended outages

This all-in-one approach reduces system complexity by eliminating the need for separate battery inverters or external transfer equipment in many commercial designs.

Compatibility

The Sol-Ark 60K-3P-480V is engineered to pair with high-voltage commercial battery systems, including:

• Sol-Ark L3 Series 480V battery banks (IP20 indoor and IP55 outdoor variants)

• Approved third-party high-voltage LiFePO₄ BESS systems supporting Sol-Ark communications and voltage requirements

System Notes

• Designed for commercial and industrial applications only

• Not compatible with 48V residential batteries

• Requires 480V three-phase service

• Suitable for both AC-coupled and DC-coupled PV architectures

Grid, Generator & Microgrid Ready

• Seamless transition between grid-tied and islanded operation

• Supports diesel or natural gas generators

• Ideal for critical load backup, resilience projects, and off-grid-capable commercial systems

Warranty

• 10-Year Manufacturer Warranty from Sol-Ark

• Covers defects in materials and workmanship under normal operating conditions

• Warranty requires:

  • Installation by a qualified professional

  • Compliance with Sol-Ark installation and operating guidelines

  • Use with approved compatible equipment

Warranty terms, exclusions, and performance conditions are governed by Sol-Ark’s official documentation.

Product Specifications

Best For

• Commercial solar + storage systems

• Industrial facilities and warehouses

• Peak demand charge reduction

• Microgrids and energy resilience projects

• EV charging infrastructure support

• Critical facilities requiring backup power
