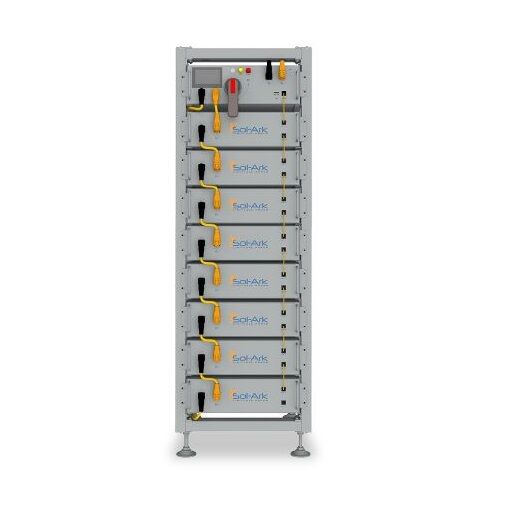

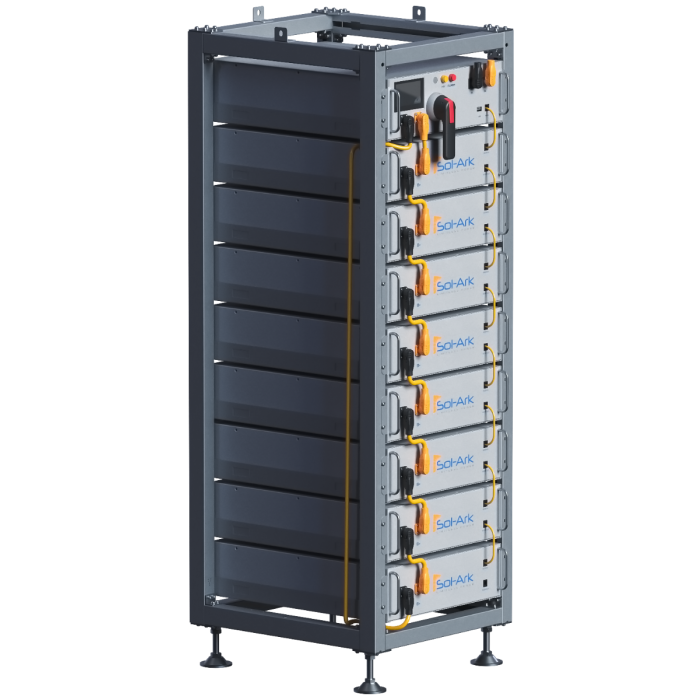

Sol-Ark 40kWh Battery Bank IP20 Indoor – for Sol-Ark 30K (30K-HV-40-IP20)
The Sol-Ark 40kWh Battery Bank IP20 is a high-capacity indoor lithium energy storage system engineered specifically for use with the Sol-Ark 30K three-phase hybrid inverter. Built on Sol-Ark’s L3 Series LimitLess Lithium platform, this battery cabinet delivers reliable, scalable storage for commercial, agricultural, and large residential applications where indoor installation and service access are required.
This IP20-rated system is intended for installation in electrical rooms, mechanical rooms, or dedicated battery spaces and is optimized for high-cycle use, backup power, and solar self-consumption.
System Overview
The 30K-HV-40-IP20 battery bank uses lithium iron phosphate chemistry and a high-voltage architecture designed to pair directly with the Sol-Ark 30K inverter platform. The cabinet-based design simplifies installation, improves serviceability, and allows multiple battery cabinets to be combined per inverter for expanded system capacity.
Key Features
-
40.96 kWh total battery cabinet capacity
-
36.86 kWh usable energy at 90% depth of discharge
-
Designed specifically for Sol-Ark 30K three-phase inverter systems
-
Lithium iron phosphate chemistry for safety and long cycle life
-
IP20 indoor-rated cabinet for controlled environments
-
Supports backup power, peak shaving, and load shifting
-
High-voltage architecture reduces current and BOS requirements
-
CAN and RS485 communications for inverter integration
Best Use Cases
-
Commercial solar plus storage systems
-
Agricultural facilities with three-phase loads
-
Large residential or estate-scale energy storage
-
Indoor battery rooms and electrical spaces
-
Backup power for critical loads
Compatibility
-
Compatible inverter: Sol-Ark 30K-3P-208V-N
-
Minimum battery cabinets per inverter: 1
-
Maximum battery cabinets per inverter: 6
-
Supports parallel inverter stacks for larger systems
-
Designed for indoor installations only
Product Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Sol-Ark |
| Battery Model | 30K-HV-40-IP20 |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Battery Cabinet Capacity | 40.96 kWh |
| Usable Energy | 36.86 kWh |
| Recommended Depth of Discharge | 90% |
| System Nominal Voltage | 410 V |
| System Operating Voltage | 332.8–467.2 V |
| Recommended Charge / Discharge Current | 50 A |
| Nominal / Continuous Current | 100 A |
| Peak Discharge Current | 125 A (2 minutes at 25°C) |
| Combined Battery + Inverter Efficiency | 90% |
| Environmental Rating | IP20 (indoor use only) |
| Operating Temperature | -4°F to 131°F |
| Communication Ports | CAN 2.0 / RS485 |
| Cycle Life | >6000 cycles (to 70% EOL) |
| Warranty | 10 years |
| Dimensions | 1.9 ft W × 1.9 ft D × 5.3 ft H |
| Dimensions (inches) | approx. 22.8 in W × 22.8 in D × 63.6 in H |
| Weight | approx. 1,384 lbs |
Why Choose Sol-Ark L3 Battery Systems
Sol-Ark’s L3 Series battery systems are designed to simplify large energy storage projects by pairing inverter and battery platforms engineered to work together. The 30K-HV-40-IP20 provides dependable indoor storage capacity, high cycle life, and scalable architecture for demanding three-phase applications.
