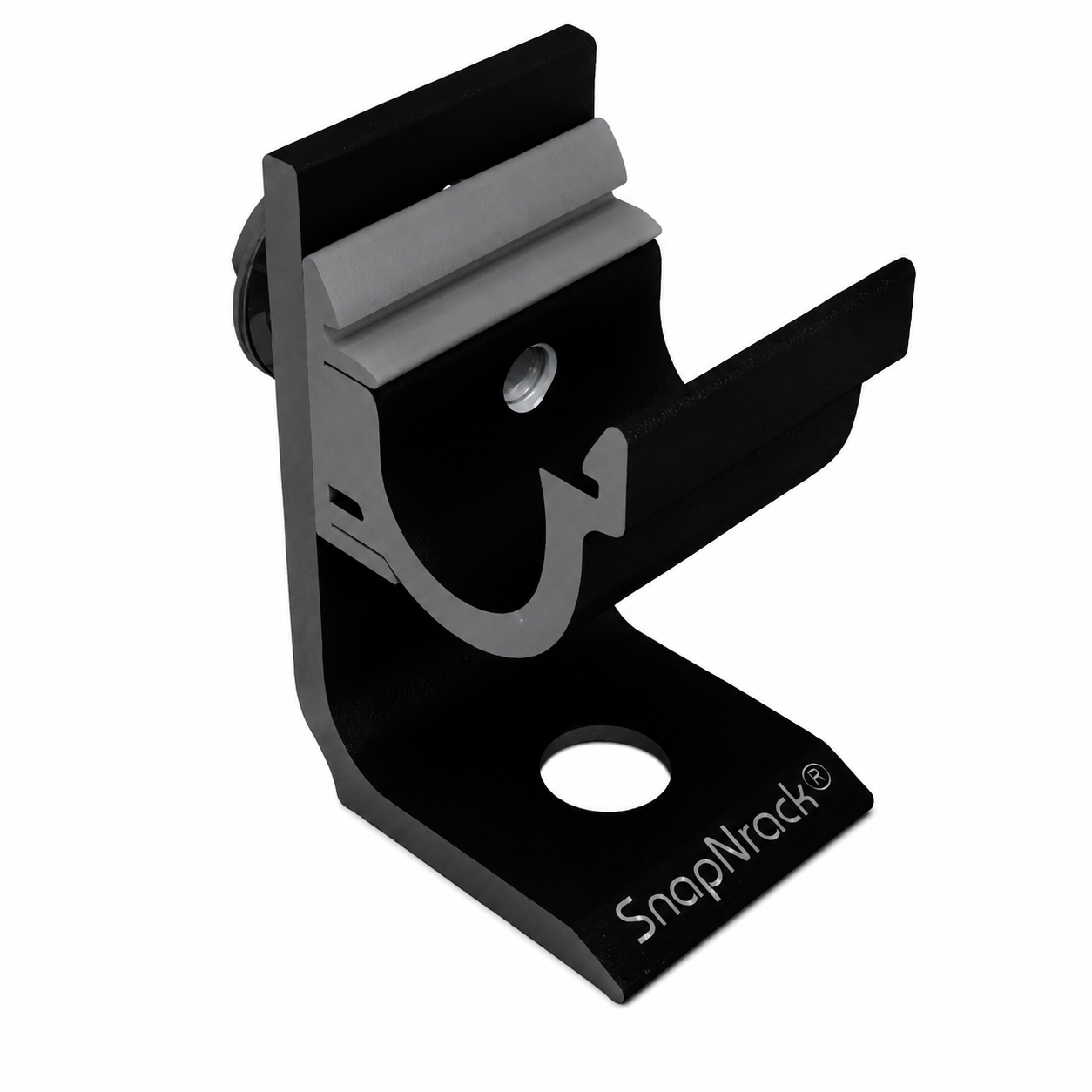

SnapNrack Ultra Rail Umbrella L-Foot Mount, Black – Made in USA (242-01220-USA)
The SnapNrack TDS Ultra Rail Umbrella L-Foot Complete Kit (Part #242-01220-USA) is a fully integrated, rafter-mounted roof attachment solution engineered for SnapNrack TopSpeed (TDS) and Ultra Rail systems. This kit combines a structural L-foot, composite aluminum flashing, and stainless steel umbrella lag into one UL-listed assembly—delivering fast installation, robust load capacity, and proven waterproof performance.
Key Technology
-
Umbrella-Style Flashing Design
Composite aluminum flashing directs water away from the penetration for long-term leak protection. -
Ultra Rail Integrated L-Foot
Purpose-built for seamless compatibility with SnapNrack Ultra Rail and TDS architectures. -
Stainless Steel Umbrella Lag
4" Type 3 stainless lag provides secure rafter attachment and corrosion resistance. -
High Structural Capacity
Designed for demanding uplift, downforce, and lateral loads in residential rooftop PV. -
UL 2703 & Wind-Driven Rain Tested
Listed for bonding/grounding and tested per UL Subject 2582 for water intrusion resistance.
Best Uses
-
Residential Rooftop Solar
Ideal for composition shingle roofs requiring rafter-based structural attachment. -
SnapNrack TDS & Ultra Rail Systems
Designed to integrate cleanly with SnapNrack rails and module mounting components. -
High-Wind & Weather-Exposed Installations
Umbrella flashing and rain-tested design enhance long-term roof protection.
Included Components
-
1 × Ultra Rail Umbrella L-Foot (Black)
-
1 × Composite flashing, 9" × 12" (black aluminum)
-
1 × Umbrella lag bolt, Type 3 stainless steel, 4"
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SnapNrack |
| Product Name | TDS Ultra Rail Umbrella L-Foot Complete Kit (USA) |
| Part Number | 242-01220-USA |
| Mounting Type | Rafter-mounted, umbrella flashing |
| Design Load | 802 lb up / 1,333 lb down / 356 lb side |
| Ultimate Load | 2,005 lb up / 4,000 lb down / 1,070 lb side |
| Torque Specification | 12 ft-lb |
| Materials | 6000-series aluminum, stainless steel, rubber |
| Certification | UL 2703 (File E359313); Wind-Driven Rain Tested |
| Weight | 0.71 lb |
