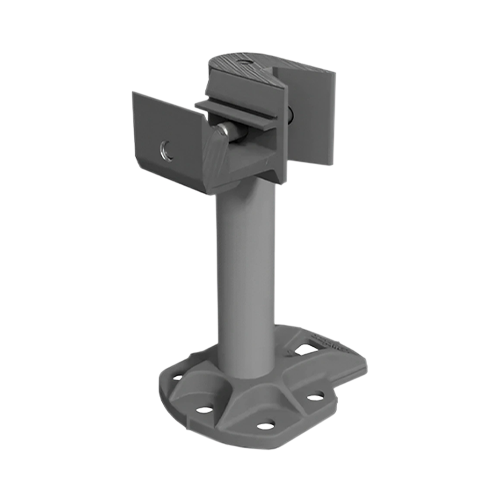

The SnapNrack 242-10017 is a 7″ Ultra Rail Flush-Mount Kit with OmniBase™ for clean, secure attachment of SMR/Ultra Rail arrays to the roof structure. The pre-assembled kit speeds layout and leveling, while tested design/ultimate load ratings and UL 2703 listing ensure a code-ready install.
Key Benefits
Pre-Assembled Speed: OmniBase™ + leveling clamp stack minimizes loose parts and setup time.
Proven Strength: Design loads to 1333 lb (down) and 655 lb (uplift); ultimate to 4000 lb (down).
Lightweight & Durable: 6000-series & A380 aluminum with 300-series stainless hardware; ~1.11 lb per kit.
Special Technology
OmniBase™ Universal Base: Wide footprint casting with integrated leveling and multiple fastener options; 5/16-18 standoff thread.
System Integration: Interfaces directly with SnapNrack Ultra Rail components for bonded, UL 2703 assemblies; torque spec 12 ft-lb.
Warranty
Manufacturer’s Standard Hardware Warranty (SnapNrack).
Best Uses
Residential & Light Commercial Rooftops: Flush-mount PV arrays needing fast, repeatable layout with certified load ratings.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | 242-10017 |
| Product Type | Ultra Rail Flush-Mount Kit (OmniBase™) |
| Standoff Length | 7 in |
| Materials | 6000-series aluminum, A380 aluminum casting (OmniBase), 300-series stainless steel hardware |
| Finish | Clear anodized aluminum (kit components labeled “CLEAR” in TDS) |
| Design Loads (lbs) | 655 up · 1333 down · 304 side · 266 lateral |
| Ultimate Loads (lbs) | 1473 up · 4000 down · 762 side · 665 lateral |
| Torque Specification | 12 ft-lb |
| Thread / Standoff Interface | 5/16-18 |
| Base Key Dimensions | Footprint Ø ≈ 4.00 in; through-hole Ø ≈ 0.38 in; height varies by standoff |
| Weight | 1.11 lb per kit |
| Certifications | UL 2703, File E359313 |
| Rail/System Compatibility | SnapNrack Ultra Rail flush-mount assemblies |
