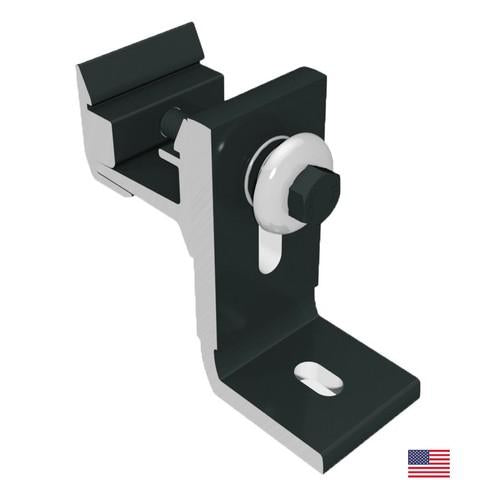

The SnapNrack TDS Ultra Rail All-Purpose L-Foot (90°) (Part #242-01239-USA) is a heavy-duty, rail-mounted structural attachment designed to connect SnapNrack Ultra Rail systems to roof attachments with strength, speed, and code compliance. Finished in black for clean aesthetics, this L-foot is optimized for residential and commercial rooftop PV installations using the SnapNrack TDS architecture.
Key Technology
-
90° All-Purpose L-Foot Design
Provides a rigid, right-angle connection between roof attachments and Ultra Rail. -
Ultra Rail Integrated Hardware
Includes Ultra Rail mount spring and UR Flip Clamp components for fast, repeatable rail attachment. -
High Structural Capacity
Rated for 405 lb uplift, 788 lb downward load, and 213 lb lateral load. -
Corrosion-Resistant Construction
Manufactured from 6000-series aluminum with stainless steel hardware for long-term outdoor durability. -
UL-Listed Bonding & Grounding
Certified to UL 2703 for integrated bonding when used within SnapNrack systems.
Best Uses
-
Residential Rooftop Solar
Ideal for composition shingle and other standard roof types using rail-based racking. -
SnapNrack TDS & Ultra Rail Systems
Purpose-built for seamless compatibility with SnapNrack rail components. -
Code-Compliant PV Mounting
Supports NEC and UL requirements for mechanical attachment and bonding.
Included Components
-
AP90 L-Foot II (black)
-
UR Flip Clamp (tap & thru configurations)
-
Ultra Rail mount spring
-
5/16"-18 × 1" stainless steel wide-flange bolt
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SnapNrack |
| Product Name | TDS Ultra Rail All-Purpose L-Foot (90°) |
| Part Number | 242-01239-USA |
| Mount Angle | 90° |
| Material | 6000-series aluminum, stainless steel |
| Finish | Black |
| Design Load | 405 lb up / 788 lb down / 213 lb side |
| Torque Specification | 12 ft-lb |
| Certification | UL 2703 (File E359313) |
| Weight | 0.27 lb |
About SnapNrack:
SnapNrack is a U.S.‑based solar mounting solutions company founded in 2007. It designs and manufactures innovative roof and ground solar racking systems that simplify installation, improve quality and safety, and cut costs for installers. SnapNrack’s products support various roof types and feature pre‑assembled hardware and integrated wire management.
Structural Strength with Installer-Friendly Speed
The SnapNrack 242-01239-USA Ultra Rail All-Purpose L-Foot delivers robust load performance, integrated bonding, and fast installation—making it a reliable, professional-grade choice for SnapNrack TDS and Ultra Rail rooftop solar systems.
