SnapNrack TopSpeed Original Mount 242-10005

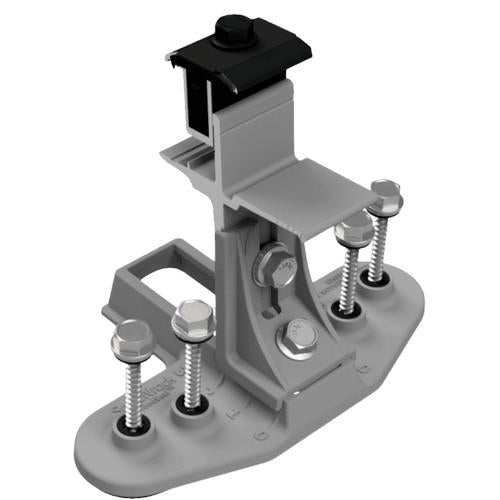

The SnapNrack TopSpeed Deck Mount (TDS) (Part #242-10005) is a fully integrated, high-performance roof attachment and module mounting solution designed to streamline residential rooftop solar installations. This all-in-one assembly combines the deck mount, SpeedSeal flashing, adjustable standoff, and TopSpeed module clamping hardware into a single, UL-listed unit—reducing install time while delivering reliable structural and waterproof performance.
Key Technology
-
All-in-One TopSpeed Assembly
Integrates deck mount, flashing, standoff, bonding, and module clamp into one pre-engineered solution. -
SpeedSeal Deck Mount Base
Composite base with sealing washers provides long-term, watertight roof penetration protection. -
Rock-In Tower Module Clamp
Allows fast, tool-efficient module attachment with precise height adjustment. -
Built-In Bonding
Includes SnapNrack RL Universal bonding clip for integrated electrical bonding per UL 2703. -
Adjustable Module Height
Module height from roof adjustable from 3.5–4.5 in (88.9–114.3 mm).
Best Uses
-
Residential Rooftop Solar
Ideal for composition shingle roofs requiring fast, repeatable installations. -
Rail-Less & TopSpeed Systems
Designed specifically for SnapNrack TopSpeed (TDS) module mounting architecture. -
Code-Compliant Installations
UL 2703 listed for bonding, grounding, and mechanical loading.
Installation Notes
-
Deck-mounted using included stainless steel sealing washer wood screws.
-
Compatible with standard residential roof framing.
-
Torque values per SnapNrack installation manual.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SnapNrack |
| Product Name | TopSpeed Deck Mount (TDS) |
| Part Number | 242-10005 |
| Mounting Type | Deck mount with SpeedSeal |
| Module Height from Roof | Adjustable 3.5–4.5 in (88.9–114.3 mm) |
| As-Shipped Height | 4.13 in (104.8 mm) |
| Design Load | 210 lbf up / 320 lbf down / 162 lbf side |
| Ultimate Load | 630 lbf up / 960 lbf down / 486 lbf side |
| Materials | Aluminum & stainless steel |
| Certification | UL 2703 |
| Weight | 1.10 lb |
About SnapNrack:
SnapNrack is a U.S.‑based solar mounting solutions company founded in 2007. It designs and manufactures innovative roof and ground solar racking systems that simplify installation, improve quality and safety, and cut costs for installers. SnapNrack’s products support various roof types and feature pre‑assembled hardware and integrated wire management.
Integrated Speed, Strength, and Simplicity
The SnapNrack 242-10005 TopSpeed Deck Mount delivers a purpose-built, all-in-one solution for modern residential PV installs—combining fast installation, proven waterproofing, and UL-listed structural performance in a single, installer-friendly assembly.
