SnapNrack OmniLug (USA) 242-10034-USA
SnapNrack OmniLug (USA) 242-10034-USA
Available
MPN No: 242-10034-USA
Regular price
$3.53
Expected ship date Feb 07 - 14
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3.53
SnapNrack OmniLug (USA) 242-10034-USA
MPN No:
242-10034-USA
Expected ship date Feb 07 - 14
SnapNrack OmniLug (USA) 242-10034-USA

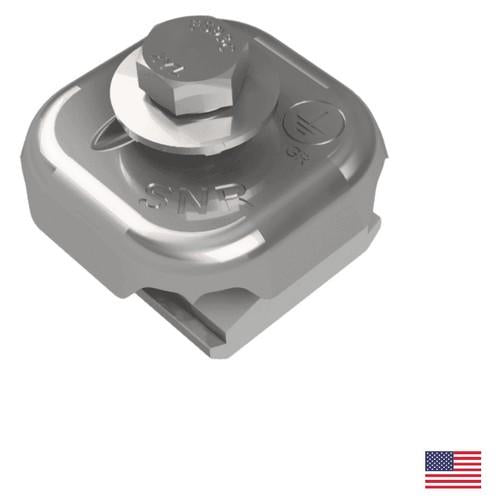

The SnapNrack OmniLug Bonding Bracket (USA) (Part #242-10034-USA) is a compact, rail-mounted grounding lug and bonding solution engineered to provide reliable electrical continuity across PV racking systems. Designed for fast installation and long-term durability, the OmniLug meets UL grounding requirements and integrates seamlessly with SnapNrack rails.
Key Technology
-
Integrated Bonding Design
Provides a secure mechanical and electrical bond to SnapNrack rails using a channel nut interface. -
UL-Compliant Grounding
Certified to UL 467 and listed to UL 2703 for PV racking grounding and bonding. -
Wide Conductor Compatibility
Accepts solid 6–12 AWG and stranded 8–10 AWG copper conductors. -
Corrosion-Resistant Materials
Constructed from 300-series stainless steel and 6005 aluminum for outdoor longevity. -
Controlled Torque Installation
Rated for a 130 in-lb torque specification to ensure consistent bonding pressure.
Best Uses
-
PV Racking Grounding
Bonds equipment grounding conductors (EGC) directly to SnapNrack rails. -
Residential & Commercial Solar
Suitable for rooftop and ground-mount systems using SnapNrack components. -
Code-Compliant Installations
Supports NEC grounding requirements for photovoltaic systems.
Included Components
-
1 × OmniLug stainless steel bonding bracket
-
1 × 5/16"-18 × 1-1/4" stainless steel SEMS hex screw with toothed conical washer
-
1 × 5/16"-18 SnapNrack channel nut
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SnapNrack |
| Product Name | OmniLug Bonding Bracket (USA) |
| Part Number | 242-10034-USA |
| Mounting Method | Rail-mounted (channel nut) |
| Wire Gauge (Solid) | 6–12 AWG |
| Wire Gauge (Stranded) | 8–10 AWG |
| Torque Specification | 130 in-lb |
| Materials | 300-series stainless steel, 6005 aluminum |
| Certifications | UL 467 compliant, UL 2703 listed |
| Weight | 0.17 lb |
About SnapNrack:
SnapNrack is a U.S.‑based solar mounting solutions company founded in 2007. It designs and manufactures innovative roof and ground solar racking systems that simplify installation, improve quality and safety, and cut costs for installers. SnapNrack’s products support various roof types and feature pre‑assembled hardware and integrated wire management.
Compact, UL-Listed Grounding You Can Trust
The SnapNrack 242-10034-USA OmniLug delivers a clean, installer-friendly grounding solution that meets UL standards and integrates seamlessly with SnapNrack racking—ensuring safe, code-compliant PV installations.
