242-10034

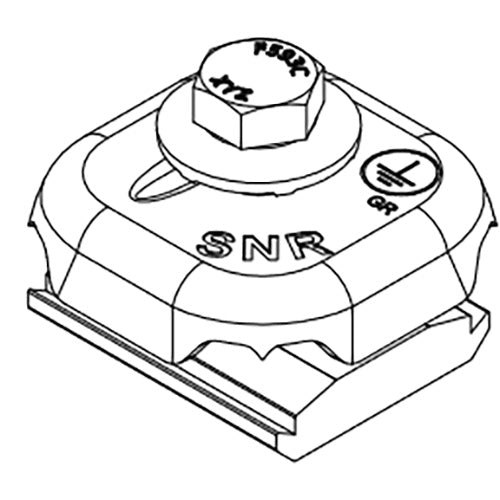

Dual Functionality: The OmniLug™ acts as both a ground lug and an MLPE rail attachment, streamlining installation processes.
Material Composition: Constructed from stainless steel, ensuring durability and resistance to corrosion.
Certifications: Complies with UL 467 and UL 2703 standards, meeting industry requirements for grounding and bonding.
Wire Compatibility: Accommodates solid copper wires ranging from 6 to 12 AWG and stranded copper wires from 10 to 12 AWG.
Attachment: Snap the OmniLug™ into the rail channel at the desired location, ensuring the bonding bracket groove aligns either parallel or perpendicular to the rail.
Grounding Conductor Placement: Position the grounding conductor into the slot on the bonding bracket beneath the conical washer of the SEMS bolt.
Securing: Tighten the mounting bolt to a torque specification of 10.8 lb-ft (130 lb-in) to ensure a secure connection.
For detailed installation instructions, refer to the SnapNrack OmniLug Install Manual v.1.2.
Part Number: 242-10034
Material: Stainless Steel Body and Hardware
Certifications: UL 467, UL 2703
Torque Specification: 130 in-lb
Weight: Approximately 0.17 lbs
Wire Gauge Compatibility:
SnapNrack is a leading provider of innovative solar mounting solutions, designed to simplify installation while ensuring durability and performance. With a focus on residential and commercial markets, SnapNrack has built a reputation for high-quality, reliable, and aesthetically pleasing systems.
SnapNrack’s standout solutions, including the Ultra Rail, Series 100, and SpeedSeal™ Technology, are engineered for quick, secure, and weather-resistant installations. These systems are designed to reduce labor time and costs while maintaining structural integrity and sleek aesthetics for rooftop and ground-mounted solar arrays.
SnapNrack backs its products with warranties of up to 25 years, reflecting their commitment to long-term reliability. Their continuous innovation, ease of installation, and robust support make SnapNrack a trusted choice for efficient and professional solar mounting solutions.
