$27.11
Regular price
$27.11
New
LESS THAN 50
Branded by SnapNRack
SnapNrack Junction Box R 242-01104
SnapNrack Junction Box R 242-01104
In Stock
MPN No: 242-01104
Regular price
$27.11
Estimated arrival on Nov 16 - 23
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$27.11
SnapNrack Junction Box R 242-01104
MPN No:
242-01104
Estimated arrival on Nov 16 - 23
In Stock
SnapNrack Junction Box R 242-01104

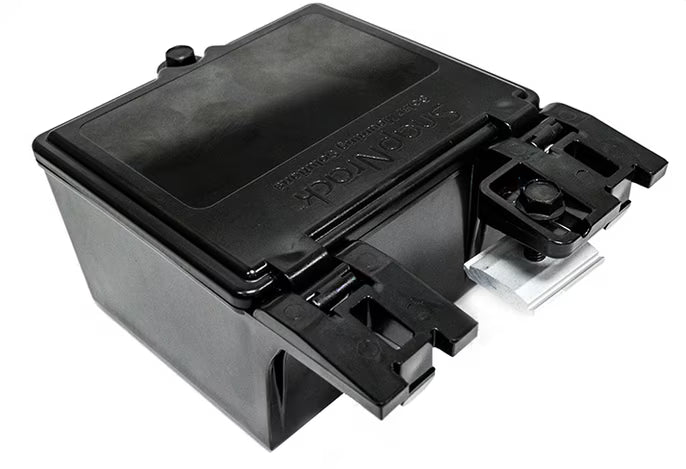

The SnapNrack Junction Box R (242-01104) is a NEMA 4X, UL-listed rail-mount box that snaps directly into SnapNrack rails to conceal and protect PV electrical terminations. It’s compact yet spacious inside, includes DIN rail mounts, and installs in minutes with a single channel nut and bolt.
Key Benefits
Fast Rail-Mount Install: Snap-in clips and a channel nut make attachment quick; torque the mount bolt to 5 lb-ft (60 lb-in).
Weather-Resistant Protection: NEMA 4X enclosure shields splices and terminations in harsh rooftop environments.
DIN-Rail Ready: Integrated DIN rail mounts support breakers/terminal blocks for neat terminations.
Special Technology
Integrated Wire Management: Part of SnapNrack’s Wire Management family to route and secure PV leads within rail channels.
Rail-Edge Placement: Designed to mount at array edge where conduit terminates for easy access after install.
Warranty
Manufacturer’s standard accessory warranty (SnapNrack).
Best Uses
Residential & Commercial Arrays: Clean, code-ready rail-mounted junction for PV homeruns and trunk transitions.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | 242-01104 |
| Product Type | Rail-mount Junction Box (Junction Box R) |
| UL / Rating | UL listed; NEMA 4X environmental rating |
| Materials | Box: Polycarbonate; Gasket: Rubber |
| Internal Dimensions | 5.5 × 4.5 × 3.2 in (inner box area) |
| External Size (typ.) | 6 × 5 × 3 in |
| Mounting | Snap-in rail clips + channel nut/bolt (5 lb-ft torque) |
| DIN Rail | Integrated DIN rail mounts (DIN rail sold separately) |
| Weight | 1.6 lb |
| System | SnapNrack Wire & Electronics Management; Ultra Rail & Series 200 compatible |
