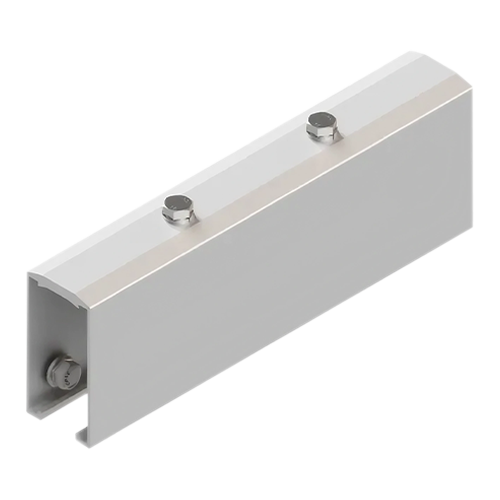

SnapNrack Ground Rail Splice 242-04009
SnapNrack Ground Rail Splice 242-04009
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
SnapNrack Ground Rail Splice 242-04009
Key Features
- High-Quality Construction: Made from 6000 Series Aluminum and Stainless Steel for exceptional durability and corrosion resistance.
- Easy Connection: Designed for seamlessly connecting SnapNrack ground rails, ensuring structural continuity.
- Certified Design: UL 2703 certified (File E359313) for safety and reliability in electrical bonding and grounding.
- Precise Engineering: Includes split lock washers, bolts, and serrated flange nuts for a secure assembly.
- Lightweight and Compact: Weighs only 1.20 lbs for easy handling during installation.
Technology Overview
The SnapNrack Ground Rail Splice Assembly provides a reliable and efficient method for joining ground rail sections. Engineered for ease of use, it ensures a secure and electrically bonded connection. Its robust materials and certified design make it ideal for outdoor solar installations, delivering long-lasting performance in challenging environments.
Applications
- Solar Ground Mount Systems: Facilitates rail connections in SnapNrack Series 200 Ground Mount setups.
- Structural Bonding: Provides strong and reliable rail connections for solar panel frameworks.
- Outdoor Installations: Ideal for solar systems requiring weather-resistant and durable components.
Installation
- Align the rail ends with the splice assembly components.
- Insert the shallow rail splice insert into the rail channels.
- Secure the connection using the provided bolts, washers, and nuts.
- Tighten the bolts to the specified torque of 10+ lb-ft to ensure a firm connection.
Specifications
| Parameter | Details |
|---|---|
| Material | 6000 Series Aluminum, Stainless Steel |
| Design Load | Not Applicable (structural splice) |
| Ultimate Load | Not Applicable (structural splice) |
| Torque Specification | 10+ lb-ft |
| Certification | UL 2703, File E359313 |
| Weight | 1.20 lbs |
