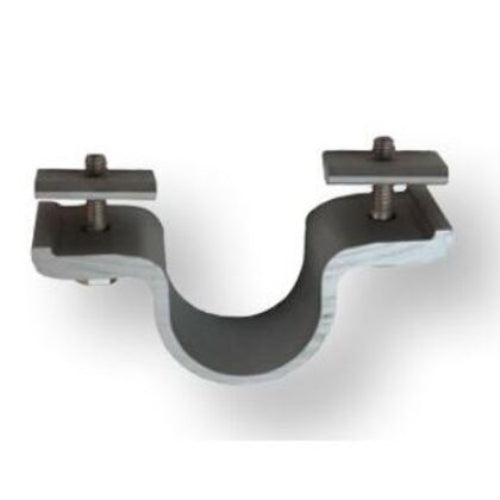

SnapNrack Bonding Pipe Clamp for 1 ½” 242-09004
242-09004
Specifications
SnapNrack Bonding Pipe Clamp for 1 ½” 242-09004
Key Features
- High Load Capacity: Supports a design load of 800 lbs with an ultimate load of 4360 lbs.
- Durable Materials: Constructed from 6000 Series Aluminum and Stainless Steel for long-lasting performance.
- Certifications: Compliant with UL 2703 standards (File E359313), ensuring safety and reliability.
- Corrosion Resistance: Materials and design provide excellent resistance to environmental elements.
- Lightweight Design: Weighs only 0.48 lbs, minimizing additional structural load.
Technology Overview
The SnapNrack Bonding Pipe Clamp is designed for secure bonding and grounding in solar racking systems. It features SnapNrack’s advanced bonding technology, which ensures robust electrical continuity between components while minimizing installation effort.
The clamp integrates stainless steel hardware and a bonding channel nut, providing a secure and reliable connection point. Its high torque specification (12 ft-lbs) ensures optimal fastening strength, even under challenging environmental conditions.
Applications
- Solar Panel Mounting: Ideal for use in residential, commercial, and utility-scale solar installations.
- Structural Bonding: Ensures effective grounding for metal pipe installations in solar racking systems.
- General Electrical Bonding: Suitable for bonding any 1-1/2" diameter pipe where electrical continuity is critical.
Installation
- Position the pipe clamp around the 1-1/2" diameter pipe.
- Secure the assembly using the provided 5/16"-18 x 1-1/2" stainless steel hex cap screws and split lock washers.
- Tighten to the recommended torque of 12 ft-lbs to ensure proper bonding.
- Verify grounding continuity as per UL 2703 guidelines.
Specifications
| Parameter | Details |
|---|---|
| Material | 6000 Series Aluminum, Stainless Steel |
| Design Load | 800 lbs |
| Ultimate Load | 4360 lbs |
| Torque Specification | 12 ft-lbs |
| Weight | 0.48 lbs |
| Certification | UL 2703, File E359313 |
| Dimensions | 5.25 in x 3.75 in x 1.75 in |
