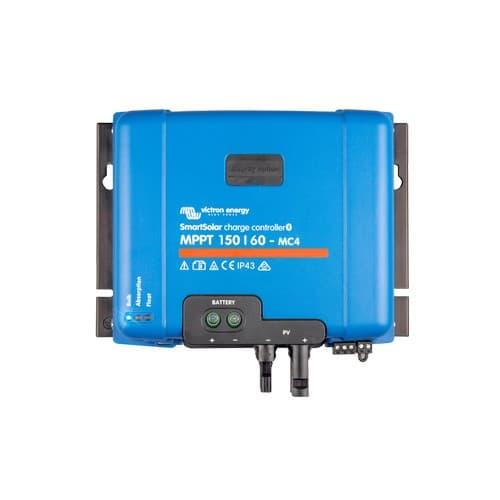

SmartSolar MPPT 150/60-MC4 Solar Charge Controller SCC115060311
The Victron SmartSolar MPPT 150/60-Tr is a high-efficiency solar charge controller with ultra-fast Maximum Power Point Tracking (MPPT) and built-in Bluetooth for seamless monitoring. Ideal for residential, off-grid, or RV solar applications, this controller maximizes solar harvest—even in partial shading—while protecting battery health through advanced charging algorithms.
Key Benefits
Ultra-Fast MPPT: Increases energy yield by tracking the optimum power point even during light fluctuations.
Bluetooth Built-In: Monitor, configure, and update settings wirelessly using the VictronConnect app.
Wide Voltage Range: Auto-selects 12V, 24V, or 48V battery banks for versatile system integration.
Multiple Charging Profiles: Includes 8 preset algorithms or user-defined settings for maximum compatibility.
Advanced Safety: Full electronic protection including reverse polarity, overheating, and PV short-circuit.
Special Technology
Advanced MPPT Tracking: Detects optimal power points in shaded or uneven irradiance conditions.
Battery Recovery Mode: Can initiate charging on fully depleted batteries (even at 0V).
Optional Display Port: Plug-in LCD available for on-site control and diagnostics.
Programmable Relay: Custom event triggers for alarms or system control via Bluetooth or VE.Direct.
Warranty
Protected by Victron Energy’s 5-year limited warranty.
Best Use
Residential Solar Systems: Efficiently manages PV charging for home battery banks.
Off-Grid & Remote Installations: Reliable power management with built-in monitoring and flexible configuration.
RV, Marine & Mobile Power: Compact, passively cooled solution for solar integration on the go.
Specifications Table
| Specification | Data |
|---|---|
| Model | SCC115060311 (MPPT 150/60-Tr) |
| Battery Voltage | 12 / 24 / 48 V auto-select |
| Rated Charge Current | 60 A |
| Nominal PV Power (12V / 24V / 48V) | 860W / 1720W / 3440W |
| Max PV Open Circuit Voltage | 150 V (absolute), 145 V (operating) |
| Max PV Short Circuit Current | 50 A |
| Max Efficiency | 98% |
| Self-Consumption | < 35 mA @ 12V / < 20 mA @ 48V |
| Default Absorption Voltage | 14.4 / 28.8 / 57.6 V |
| Default Float Voltage | 13.8 / 27.6 / 55.2 V |
| Equalization Voltage | 16.2 / 32.4 / 64.8 V |
| Charging Algorithm | Multi-stage adaptive (8 presets or user-defined) |
| Temperature Compensation | -64 mV/°C @ 48V |
| Protection Features | PV reverse polarity, over-temp, short circuit, reverse current |
| Operating Temp Range | -30°C to +60°C |
| Max Altitude | 5000 m |
| Data Communication | VE.Direct, Bluetooth |
| Remote On/Off | Yes (2-pole connector) |
| Programmable Relay | AC: 240V / 4A; DC: 4A up to 35V |
| Enclosure Rating | IP43 (electronics), IP22 (connections) |
| PV Terminal Size | 35 mm² / AWG2 |
| Battery Terminal Size | 35 mm² / AWG2 |
| Dimensions (H × W × D) | 8.5 × 11.6 × 4.1 in |
| Weight | 9.9 lbs |
| Certifications | EN/IEC 62109-1, UL 1741, CSA C22.2 |
