Smappee EV Wall Smartup Kit EVWNA-SMARTUP-KIT

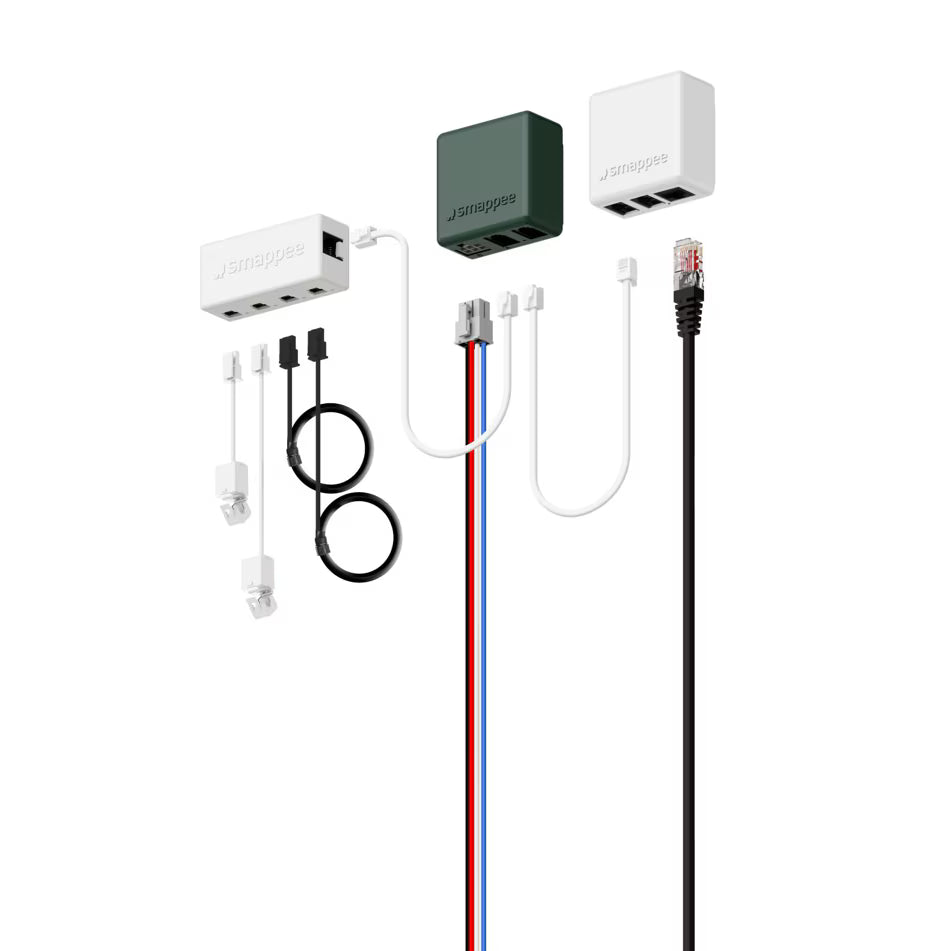

The Smappee EVWNA-SMARTUP-KIT adds intelligence and metering to EV Wall NA chargers. It bundles Smappee Infinity components—Connect gateway, Power Box meter, CT Hub, and current transformers—to enable smart charging, dynamic load balancing, and rich monitoring via the Smappee cloud/app. Ethernet or Wi-Fi backhaul ensures reliable connectivity; in case of outage, data buffers locally for a day before syncing.
Key Benefits
Smart Charging & Load Balancing: Uses Infinity metering + gateway to allocate available capacity and avoid main-breaker trips.
Fast, Compact Install: All modules are DIN/plate mountable with low-profile enclosures and pre-terminated Smappee Bus cables.
Flexible Networking: Ethernet 100BASE-T or 2.4 GHz Wi-Fi to Smappee cloud; over-the-air updates keep the system current.
Granular Metering: CT Hub supports split-core CTs or Rogowski coils up to 10,000 A for whole-home or sub-load monitoring.
Special Technology
Infinity Architecture: Power Box measures voltages/currents and powers the chain; CT Hub daisy-chains multiple sensors (up to 7 hubs); Connect acts as the secure cloud gateway for smart-charge features in EV Line stations.
Warranty
Manufacturer’s standard Smappee hardware warranty.
Best Uses
Residential EV Charging: Dynamic load balancing against main service.
Light Commercial Sites: Multi-charger management with building metering and cloud analytics.
Specifications Table
| Component | Key Specs |
|---|---|
| Infinity Connect (Gateway) | Dimensions 55 × 55 × 26.6 mm; weight 45 g; Ethernet 100BASE-T & Wi-Fi 2.4 GHz; dual Smappee Bus-B ports; 1-day local data buffer on network outage; IPX0; CE/FCC/RCM; −25…70 °C. (See pages 1–2.) |
| Infinity Power Box (Meter/Controller) | Dimensions 55 × 55 × 26.6 mm; weight 44 g; supply 90–304.7 Vac, 8 W max; voltage inputs L1/L2/L3/N; single-phase, split-phase (120/240 V), and 3-phase topologies; 50/60 Hz; Smappee Bus-A & Bus-B; IK06; IPX0; safety IEC/UL 61010; −25…75 °C. (Pages 3–4.) |
| CT Hub | Dimensions 70 × 31 × 23 mm; weight 29 g; 4 inputs for Smappee split-core CTs (50/100/200/400 A) or Rogowski coils; daisy-chain up to 7 hubs over 100 m; dual Bus-A ports; IPX0; −25…75 °C. (Pages 5–6.) |
| Current Transformers | Typical kit CTs: split-core 50–400 A options; examples—50 A (25.5 × 40.5 × 26 mm), 100 A (32 × 44.5 × 31 mm), 200 A (50.5 × 66.5 × 41 mm), 400 A (57.8 × 85 × 42.5 mm); 180 cm leads. Rogowski coils 0–400/1600/4000/10000 A available (Ø 40/120/190/300 mm ID). (Page 8.) A solid-core 3-phase CT (59 × 35 × 23 mm; 3×50 A) is also available (Page 7.) |
| Environmental / Compliance | Operating altitude 0–2000 m; RH 0–95% non-condensing; EMC IEC 61326-1; FCC Part 15; Spectrum EN 300 328 (Connect); product certifications CE, FCC, RCM. (Pages 2, 4, 6–8.) |
| Included Accessories | Wall/DIN mounting plates; Smappee Bus cables (typically 40–150 cm); bus termination plug. Exact contents may vary by region/SKU. |
About Smappee:
Smappee is a global energy-management company that provides smart monitoring and control solutions for homes and businesses. Its system tracks electricity, solar, gas, and EV charging in real time, helping users optimize energy use, reduce costs, and support sustainable energy management
