SMA SunSpec Certified Rapid Shutdown Device JMS-F-V2
JMS-F-V2

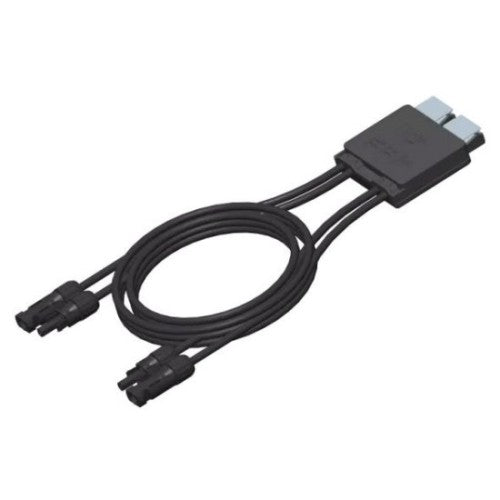

SMA SunSpec Certified Rapid Shutdown Device JMS-F-V2
The SMA JMS-F-V2 is a SunSpec Certified rapid shutdown module-level device designed for simple and cost-effective compliance with NEC 2023/2020/2017 requirements. Featuring power line communication and compatibility with SMA inverters, it enables fast installation without additional wiring or components.
Key Benefits
NEC Compliance: Fully meets NEC 690.12(B)(2) rapid shutdown requirements for PV systems on buildings.
Cost-Effective Design: No extra communication cables or devices needed—reducing BOS costs.
Quick Installation: Plug-and-play with new screwless mounting design for faster deployment.
Reliability: Up to 50% fewer internal components for improved lifetime performance.
Special Technology
Power Line Communication: Uses existing DC conductors for SunSpec signal transmission.
SunSpec Certified: Guaranteed interoperability with compatible SMA inverters.
Automatic Shutdown: PV modules shut down within 10 seconds when SunSpec signal is lost.
Warranty
25-Year Manufacturer Warranty (contact SMA Service for details).
Best Uses
Residential PV: Rapid shutdown compliance with minimal extra hardware.
Commercial PV: Scalable—connects 6 to 30 devices per string for large arrays.
Specifications Table
| Specification | Data |
|---|---|
| Model | JMS-F-V2 |
| Type | SunSpec Certified Rapid Shutdown Device |
| Rated DC Input Power | 600 Wp |
| Max PV Module Voc | 60 V |
| Min Input Voltage | 10 V |
| Max Continuous Input Current | 15 A |
| Max Short-Circuit Input Current | 15 A |
| Output Power Range | 0–600 W |
| Max Output Voltage | 60 V |
| Standby Output Voltage | 1 V |
| Max System Voltage | 1500 V |
| Allowable Series Connections | 6–30 devices |
| Dimensions (L × W × H) | 3.5 × 3.76 × 0.65 in |
| Weight (incl. cables) | 0.97 lb |
| Connector Type | MC4 |
| Output Wire Length | 1.2 m |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Enclosure Rating | Type 4X (UL 50E) |
| Relative Humidity | 0–100% |
| Certification | UL 1741 Rapid Shutdown Equipment |
| Communication Mode | Power Line Communication (PLC) |
| Rapid Shutdown Time | 10 seconds |
| Compatible Inverters | SMA Sunny Boy US (SBx.x-1SP-US-41), Sunny Tripower CORE1-US (STP xx-US-41) |
| Package Quantity | 40 units |
| Warranty | 25 Years |
