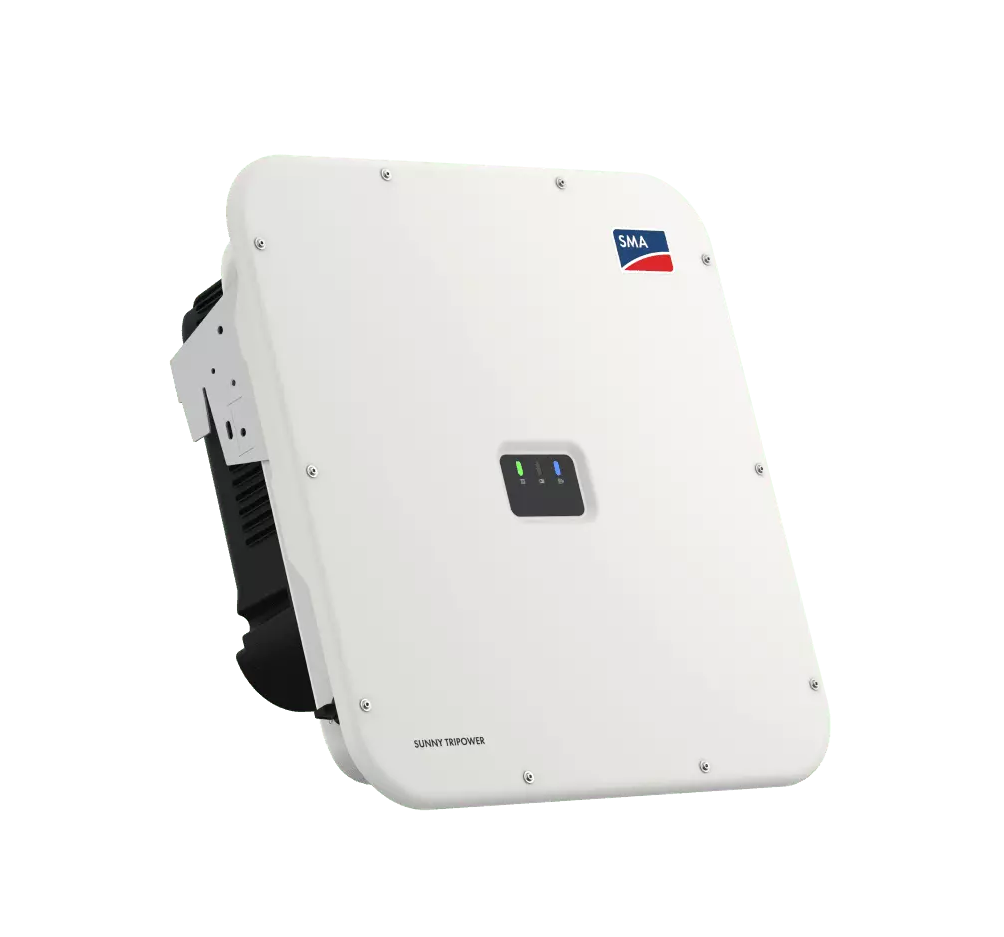

SMA STP 20-US-50 Sunny Tripower X String Inverter
SMA STP 20-US-50 Sunny Tripower X String Inverter
SMA America
MPN No: STP 20-US-50
In Stock
Regular price
$4,101.95
-->
Regular price
-%
Sale price
$4,101.95
Unit price
per
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Regular price
$4,101.95
-->
Regular price
-%
Sale price
$4,101.95
Unit price
per
SMA STP 20-US-50 Sunny Tripower X String Inverter
MPN No:
STP 20-US-50
In Stock
Expected ship date Mar 01 - 04
Specifications
SMA STP 20-US-50 Sunny Tripower X String Inverter
Introducing the SMA STP 20-US-50 Sunny Tripower X, the smart solution for commercial solar applications. This string inverter features a future-proof design with integrated intelligence, ensuring that your system is not only efficient today but also ready for tomorrow's challenges.
- Three independent MPP trackers with SMA ShadeFix optimization for maximum energy yields.
- Integrated System Manager with ennexOS for advanced monitoring and centralized control.
- Enhanced safety with SunSpec PLC for module-level shutdown and DC AFCI protection.
- Optimized performance with SMA Smart Connected proactive monitoring service.
- Designed for flexible array design and maximum system uptime.
Technology and Overview
Equipped with SMA's ennexOS energy management platform, the STP 20-US-50 offers superior operational efficiency and smart energy management for commercial PV systems.
Installation and Compatibility Overview
With its ergonomic design, the STP 20-US-50 ensures straightforward installation. It's suitable for a variety of commercial solar projects, offering flexibility and ease of use.
Benefits and Applications Overview
The STP 20-US-50 is designed to maximize returns and enhance safety for commercial solar installations, promoting long-term sustainability and operational peace of mind.
Specifications
| Specification | Value |
| Model No. | STP 20-US-50 |
| Maximum PV array power | 30000 Wp |
| Maximum input voltage | 1000 V |
| MPP voltage range | 350 V to 800 V |
| Minimum input voltage / initial input voltage | 150 V / 188 V |
| Maximum operating input current / short-circuit current per MPP tracker | 24 A / 37.5 A |
| Number of independent MPP trackers / string inputs per MPP tracker | 3 / 2 |
| Nominal output power | 20000 W |
| Maximum apparent power | 20000 VA |
| Nominal AC voltage | 480 V / 277 V |
| AC voltage range | 244 V to 305 V |
| Rated grid frequency / range | 60 Hz / 50 Hz to 66 Hz |
| Maximum output current | 24 A |
| Power factor at rated power / adjustable displacement | 1 / 0.8 overexcited to 0.8 underexcited |
| Output phases / line connection | 3 / 3-(N)-PE |
| Harmonics (THD) | < 3 % |
| CEC efficiency | 97.5% |
| Load rated DC disconnect | Standard feature |
| Ground fault monitoring / grid monitoring | Standard feature |
| DC reverse polarity protection / AC short-circuit protection | Standard feature |
| All-pole sensitive residual-current monitoring unit | Standard feature |
| Protection class / overvoltage category | I / III |
| DC AFCI arc-fault protection | Standard feature |
| SunSpec PLC signal for rapid shutdown | Standard feature |
| DC surge protection type 2 / DC surge arrester type 1+2 | Optional feature |
| Dimensions (W/H/D) | 728 mm / 762 mm / 266 mm (28.7 in / 30 in / 10.5 in) |
| Device Weight | 35 kg / 77 lbs |
| Operating temperature range | -25°C to +60°C (?13°F to +140°F) |
| Noise emission (typical) | 59 dB(A) |
| Topology / cooling concept | Transformerless / OptiCool (forced convection, variable speed fans) |
| Enclosure protection rating | Type 4X (as per UL 50E) |
| Corrosivity classification according to IEC 61701 | C5* |
| Maximum permissible value for relative humidity (non-condensing) | 1 |
| Mounting type | Vertical rack / wall mount to 15° from horizontal |
| DC connection / AC connection | Amphenol H4 Plus / spring-cage terminal |
| LED indicators (status / fault / communication) | Standard feature |
| Network interfaces: Ethernet / WLAN | Standard feature (2 ports) |
| Data protocols: SMA Modbus / SunSpec Modbus / Speedwire | Standard feature |
| Multi-function relay / Extension module slot / Digital inputs | Standard feature (6 inputs) |
| SMA ShadeFix string level optimization | Standard feature |
| Integrated I-V curve diagnostics 1) | Standard feature |
| Integrated Plant Control / Q on Demand 24/7 | Standard feature |
| SMA Smart Connected (proactive monitoring and service support) | Standard feature |
| Standard warranty | 10 years |
| Optional warranty extensions (total warranty coverage cannot exceed 20 years) | +5 years, +10 years |
| Certificates and approvals | UL 62109-1, UL 1699B Ed. 1, CAN/CSA 22.2 No. 62109-1:16 / 62109-2:16, PV Rapid Shutdown System Equipment in accordance with UL1741:2021 |
| FCC compliance | FCC Part 15 Class A |
| Grid interconnection standards | UL 1741 SB, IEEE 1547:2018, compliance to SRDs: CA Rule 21, HECO Rule 14H, ISO-NE |
| Maximum number of supported inverters / energy meters | 5 / 1 |
| Maximum system power PV inverters (nominal AC power) | 150 kVA |
| Centralized commissioning of all devices in the system | Standard feature |
| Remote parameterization of SMA devices | Standard feature (via Sunny Portal powered by ennexOS) |
| SMA Dynamic Power Control (e.g. zero export / Volt-VAr) 2) | Optional feature |
