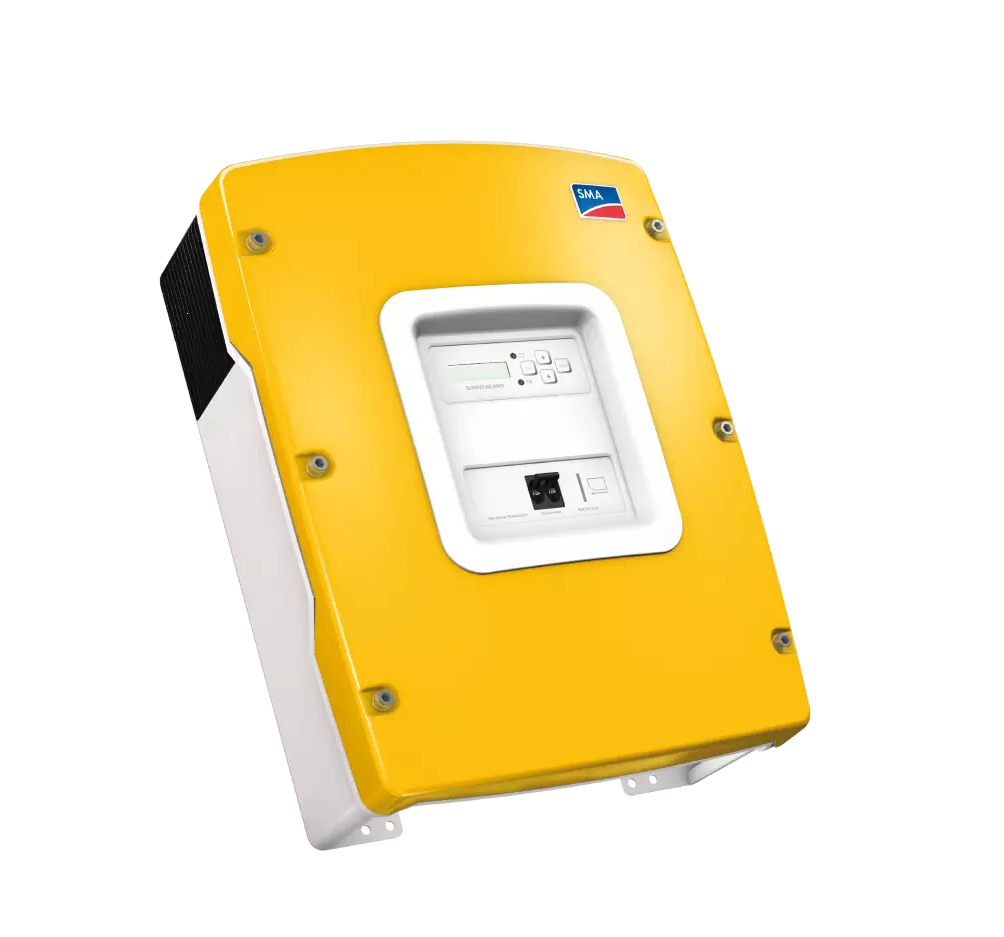

SMA SI4548-US-10 Sunny Island Off-Grid Inverter/Charger

The SMA SI4548-US-10 Sunny Island Inverter/Charger is a cornerstone of off-grid solar power systems, offering exceptional efficiency and intelligent battery management for robust off-grid energy independence.

  • Maximum efficiency of 96% and CEC efficiency of 94.5% for peak energy conversion.
  • Intelligent battery management system extends the life and performance of battery storage.
  • Easy commissioning via the “Quick Configuration Guide” streamlines setup.
  • OptiCool™ active temperature management system ensures durability and consistent performance.
  • Flexible design supports systems from 4.5 to 100 kW, suitable for a range of applications.

Technology and Overview

With a focus on efficiency and reliability, this inverter employs state-of-the-art technology for off-grid and on-grid situations, including a sophisticated battery management system and innovative cooling for enhanced longevity.

Installation and Compatibility Overview

The SMA SI4548-US-10 offers a user-friendly installation process, supporting various battery types and scalable for different system sizes, delivering a versatile solution for off-grid power needs.

Benefits and Applications Overview

Optimized for cost-saving and environmental impact, the Sunny Island Inverter/Charger is ideal for rural electrification, remote homes, and backup power, promoting sustainable and reliable energy access.

Specifications

Specification Value
Model No. SI4548-US-10
Rated grid voltage / AC voltage range 120 V/105 V – 132 V
Rated frequency / frequency range (adjustable) 60 Hz/55 Hz ... 65 Hz
AC power (at 25 °C / at 40 °C) for 3 hours 5000 W/4000 W
Rated power (@ Unom, fnom / 25 °C / @ cos ? = 1) 4500 W
AC power at 25 °C for 30 min / 1 min / 3 s 5300 W / 8400 W / 11000 W
Rated current / max. output current (peak) 37.5 A/180 A for approx. 60 ms
Total harmonic factor output voltage / power factor with rated power 3 % / -1 … +1
Rated input voltage / AC input voltage range 120 V/80 V – 150 V
Rated input frequency / allowable input frequency range 60 Hz/54 Hz ... 66 Hz
Max. AC input current / adjustable 56 A/0 A … 56 A
Max. AC input power 6.7 kW
Rated input voltage / DC voltage range 48 V/41 V – 63 V
Max. battery charging current / DC rated charging current 100 A / 85 A
Battery type / battery capacity range Lead, NiCd/100 Ah … 10000 Ah
Charge control IUoU charge procedure with automatic full charge and equalization charge
Max. efficiency / CEC efficiency 96 % / 94.5 %
Self-consumption without load / standby 25 W/4 W
DC reverse polarity protection / DC fuse Standard feature
AC short-circuit / AC overload Standard feature
Overtemperature / battery deep discharge Standard feature
Dimensions (W / H / D) 467 / 612 / 235 mm
(18.4 / 24.1 / 9.3 inch)
Weight 63 kg / 139 lb
Operating temperature range -25 °C … +60 °C / -13 °F … +122 °F
Operation and display / multi-function relay Internal / 2
Degree of protection (according to IEC 60529) indoors (NEMA 1)
Three-phase systems / parallel connection Standard feature
Integrated bypass / multicluster operation Not Available / Standard feature
State of charge calculation / full charge / equalization charge Standard feature
Integrated soft start / generator support Standard feature
Battery temperature sensor / data cable Standard feature
Warranty 5 years
Battery cable / battery fuse Optional
Interface (RS 485 / Multicluster PB) Optional
Extended generator start “GenMan” Optional
Load-shedding protection / battery current measurement Optional
