SMA SBSE5.8-US-50 Sunny Boy Smart Energy hybrid inverter
SBSE5.8-US-50

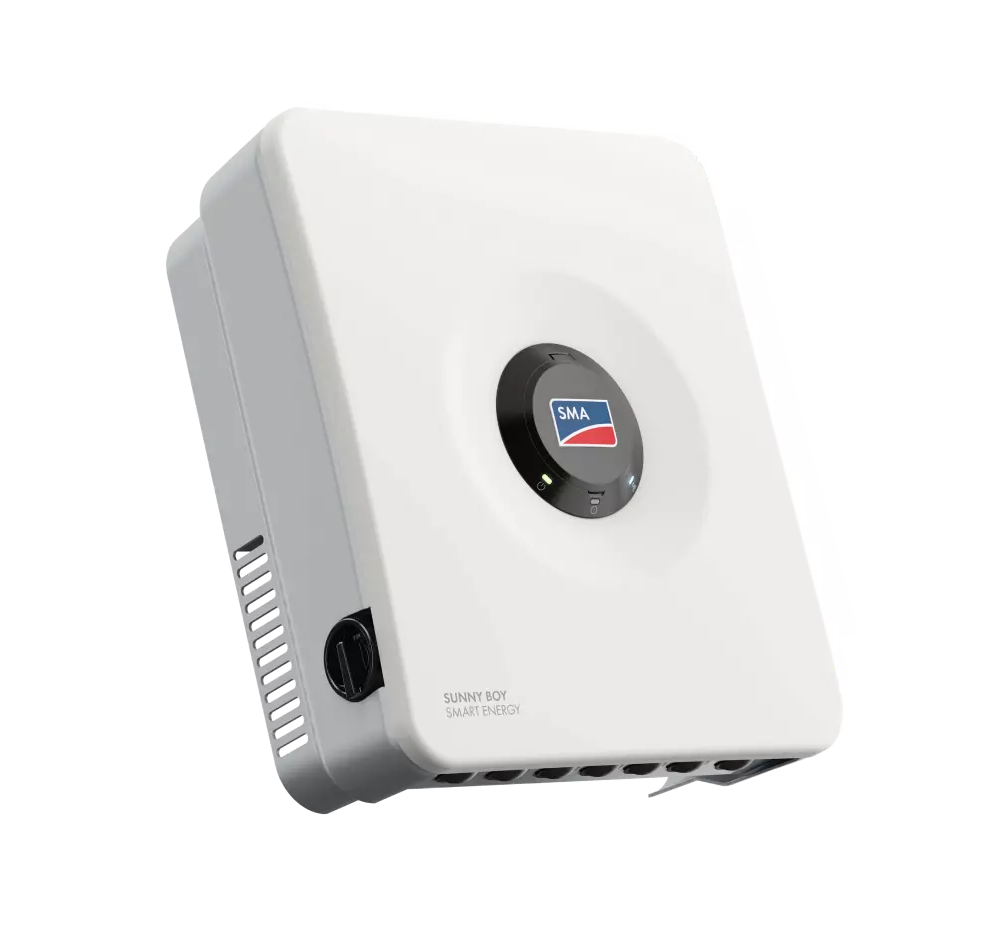

SMA 5.8kW SBSE5.8-US-50 Sunny Boy Smart Energy Hybrid Inverter
The SMA SBSE5.8-US-50 Sunny Boy Smart Energy Hybrid Inverter is a 5.8kW, battery-ready inverter designed for modern residential solar and energy storage applications. It combines SMA’s trusted solar inverter technology with integrated battery management and backup capability. The system is UL 1741-SB certified and includes advanced grid support functions. With simplified commissioning via SMA’s Energy System Home app and direct compatibility with the SMA Home Energy battery, this hybrid inverter is ideal for future-proof solar installations requiring seamless energy management and load shifting.
Key Benefits
Hybrid Functionality: Supports solar power generation and battery integration with full backup capabilities.
Secure Power Supply: Built-in SPS port delivers up to 2000W of backup power during outages.
All-in-One Design: Integrated battery inputs and AC coupling simplify storage retrofits and reduce installation costs.
UL 1741-SB & IEEE 1547 Compliance: Fully certified for advanced grid interaction and interconnection safety.
Wi-Fi & Web Monitoring: Monitor system performance through Sunny Portal and SMA Energy App.
Special Technology
Integrated Backup Power: Includes backup control for critical loads during grid outages without a transfer switch.
Dynamic Energy Management: Enables intelligent charging/discharging with SMA Home Energy battery.
Secure Power Supply (SPS): Delivers backup AC power (up to 2000W) directly from solar during outages.
Multigate Monitoring: Supports modular system expansion and advanced load management.
Web-Based Commissioning: Simplifies setup and configuration via smartphone or tablet.
Warranty
The SMA SBSE5.8-US-50 inverter comes with a standard 10-year limited warranty, upgradeable to 15 or 20 years, ensuring confidence in long-term solar + storage performance.
Best Use
Residential Solar + Storage Systems: Optimized for homes installing or upgrading to battery-backed PV systems.
Outage-Resilient Homes: Supports backup loads during blackouts using Secure Power Supply (SPS).
Future-Ready Solar Projects: Designed to integrate with SMA Home Energy Storage and advanced grid support features.
Code-Compliant Installations: UL 1741-SB and IEEE 1547 certified for smooth utility approval.
Specifications table
| Specification | Data |
|---|---|
| Model No. | SBSE5.8-US-50 |
| Max. PV array power (200% oversizing) | 11520 Wp |
| Max. DC voltage | 600 V |
| Rated MPP voltage range | 136 V – 480 V |
| Min. / Startup DC Voltage | 60 V / 66 V |
| Max. usable current input per MPPT | 15 A |
| Max. short-circuit current input per MPPT | 30 A (sum at all inputs must not exceed 60 A) |
| Independent MPPT inputs / inputs per MPPT | 3 / 1 |
| Connection of MPPT inputs in parallel | A and B* |
| Battery type | BYD Battery-Box Premium HVL 12.0–32.0 (UL9540) |
| Voltage range | 90 V to 500 V |
| Max. charging current / discharging current | 30 A / 30 A |
| Independent battery inputs | 1 |
| Max. charging / discharging power | 10000 W / 6063 W |
| Max. apparent AC power | 5760 VA |
| AC rated power (240 V, 60 Hz) | 5760 W |
| AC rated power (208 V, 60 Hz) | 4992 W |
| AC voltage rated and range | 240 V (211 V – 264 V) or 208 V (183 V – 229 V) |
| AC grid frequency / range | 60 Hz / 55 – 66 Hz |
| Max. rated output current | 24 A |
| Breaker (overcurrent protection) | 30 A |
| Power factor at rated power | 1 / adjustable 0.8 overexcited to 0.8 underexcited |
| Max. efficiency | 98.10% |
| CEC efficiency (240/208 V) | 97.5% / 97% |
| DC disconnect / DC reverse polarity protection | Standard feature |
| DC AFCI arc-fault protection | Standard feature |
| Ground fault monitoring / Grid monitoring | Standard feature |
| AC short circuit current capability | Standard feature |
| Residual-current monitoring unit | All-pole-sensitive, standard feature |
| Protection class | I |
| Overvoltage category (grid / battery / PV) | III / II / II |
| Dimensions (W × H × D) | 19.7 × 23.1 × 9.3 in |
| Weight | 38.6 lb |
| Operating temperature range | –13°F to +140°F (–25°C to +60°C) with derating |
| Topology / Cooling method | Transformerless / Natural convection |
| Environmental protection rating | IP65 / Type 3R |
| Communication protocols | Modbus (SMA, SunSpec), Speedwire / Webconnect, SMA Battery Interface |
| Interfaces (WLAN / Ethernet / BAT-CAN / RS-485) | Standard feature |
| 2.4 GHz WLAN | Standard feature |
| Ethernet ports / Number of outputs | 2 / 1 (Multifunction relay 30 VDC / 1 A) |
| Warranty | 10 years standard / Optional: +5 / +10 / +15 years |
| Certificates and approvals | UL 1741 SB/SA, UL 62109-1, UL 1998, UL 1699B Ed. 1, UL9540, IEEE1547, FCC Part 15 (Class A & B), CAN CSA-C22.2, CA Rule 21, HECO Rule 14H, NEC 2020 & 2023, PV RSD compliance |
| SMA Smart Connected | Standard feature |
| SMA ShadeFix (shade optimization) | Standard feature |
| SunSpec certified transmitter (Rapid Shutdown) | Standard feature |
| Rated power (at 120 V, 60 Hz) | 1920 W |
| Max. apparent AC power | 1920 VA |
| Nominal AC voltage | 120 V |
| AC grid frequency | 60 Hz |
| Activation mode | Manual |
About SMA:
SMA is a global leader in solar inverter technology, known for high-performance solutions for residential, commercial, and utility-scale systems. With decades of experience, SMA delivers innovative, reliable, and efficient solar energy management systems worldwide.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 10-year warranty, extendable to 20 years for long-term reliability directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the SMA SBSE5.8-US-50 compatible with my solar panels?
Yes, the SBSE5.8-US-50 is compatible with a wide range of solar panels. Your installer will determine the best system configuration based on your specific solar array and energy needs.
Do I need a battery to use the SMA SBSE5.8?
No, a battery is not required. The SBSE5.8-US-50 can operate as a standard grid-tied inverter. However, integrating a battery enables energy storage for use during power outages, peak utility hours, or nighttime consumption.
How do I monitor the performance of the SMA SBSE5.8?
This inverter includes SMA’s Sunny Portal and Sunny Home Manager compatibility, allowing remote monitoring via web or mobile apps. You can track solar production, consumption, and battery status in real time.
What happens during a power outage?
If a battery is installed and the system is configured for backup, the SBSE5.8-US-50 will automatically switch to battery power, supplying electricity to your backup circuits. Without a battery, the system will shut down during a grid outage to ensure safety.
How do I maintain the SMA SBSE5.8-US-50?
Maintenance is minimal. Regularly check for alerts or error messages on the inverter’s interface and ensure it remains in a well-ventilated, dust-free environment. Annual system checks by your installer are also recommended.
What is the efficiency of the SBSE5.8-US-50?
The inverter offers high efficiency, typically around 97.5%. For exact figures and performance data, refer to the official SMA datasheet.
What are the input and output voltage ranges?
The SBSE5.8-US-50 supports a nominal output voltage of 240V and is compatible with 208V systems. For complete electrical specifications, including DC input range and output current, consult the product's technical documentation.
What communication protocols does the SMA SBSE5.8 support?
This inverter supports integrated Wi-Fi, Ethernet, and can be paired with optional SMA communication accessories for advanced system management and third-party integrations.
