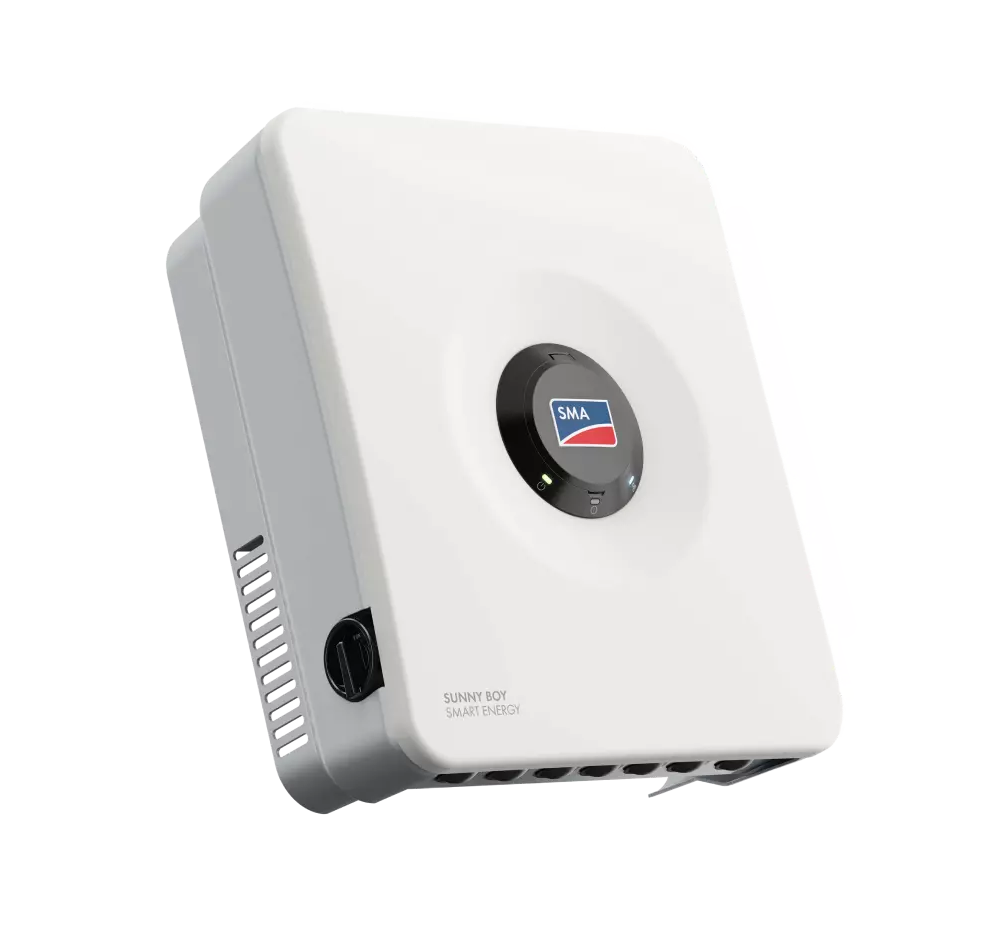

SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

$1,989
-% $1,989
SOLD OUT
Leave a Review

SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

SMA America
MPN No: SBSE3.8-US-50
Out Of Stock
$1,989
-% $1,989

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Contact us for Delivery Date

Payment

We offer multiple secure payment options for your convenience

All SMA America products All Inverters products

View full details
$1,989
-% $1,989
SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

SMA SBSE3.8-US-50 Sunny Boy Smart Energy hybrid inverter

MPN No:

SBSE3.8-US-50

Out Of Stock
Contact us for Delivery Date
$1,989
-% $1,989
Sold out

Specifications

.PDF
Datasheet
.PDF
Datasheet

SMA SBSE3.8-US-50 Sunny Boy Smart Energy Hybrid Inverter

Introducing the SMA SBSE3.8-US-50 Sunny Boy Smart Energy, a cutting-edge hybrid inverter designed for advanced residential solar systems. This innovative inverter integrates seamlessly with solar panels and battery storage, delivering unparalleled efficiency and reliability.

  • 200% DC/AC oversizing capability enables flexible and efficient system design.
  • Easy installation and space-saving design thanks to its 2-in-1 inverter solution.
  • Rapid commissioning with the built-in SunSpec Certified RSD transmitter.
  • 10-year warranty, extendable up to 25 years, assures long-term reliability.
  • SMA Backup Secure offers energy security, ensuring power even without a battery.

Technology and Overview

Equipped with SMA's pioneering technologies like SMA ShadeFix and Smart Connected, the SBSE3.8-US-50 optimizes solar energy production and system monitoring, enhancing your home's energy independence.

Installation and Compatibility Overview

This hybrid inverter simplifies installation processes, compatible with a wide array of battery types and PV systems, making it a versatile choice for homeowners.

Benefits and Applications Overview

The SMA SBSE3.8-US-50 is ideal for those seeking to maximize their solar investment, offering energy savings, reduced electricity bills, and a sustainable energy solution for residential applications.

Specifications

Specification Value
Model No. SBSE3.8-US-50
Max. PV array power (200% oversizing) 7680 Wp
Max. DC voltage 600 V
Rated MPP voltage range 91 V - 480 V
Min. / Startup DC Voltage 60 V / 66 V
Max. usable current input per MPPT 15 A
Max. short-circuit current input per MPPT 30 A (the sum at all inputs must not exceed 60 A)
Independent MPPT inputs / inputs per MPPT 3 / 1
Connection of MPPT inputs in parallel A and B*
Battery type BYD Battery-Box Premium HVL 12.0, 16.0, 20.0, 24.0, 28.0, 32.0 (UL9540)
Voltage range 90 V to 500 V
Max. charging current / max. discharging current 30 A / 30 A
Number of independent battery inputs 1
Max. charging power / max. discharging power 10000 W / 4042 W
Max. apparent AC power 3840 VA
AC Rated power (at 240 V, 60 Hz) 3840 W
AC Rated power (at 208 V, 60 Hz) 3328 W
AC voltage rated and range 240 V (211 V to 264 V) or 208 V (183 V to 229 V)
AC grid frequency / range 60 Hz / 55 Hz to 66 Hz
Max. rated output current 16 A
Breaker (overcurrent protection) 20 A
Power factor at rated power 1 / adjustable 0.8 overexcited to 0.8 underexcited
Max. efficiency 98.10%
CEC efficiency (240/208V) 96.5% / 97%
DC disconnect / DC reverse polarity protection Standard feature
DC AFCI arc-fault protection Standard feature
Ground fault monitoring / Grid monitoring Standard feature
AC short circuit current capability Standard feature
All-pole-sensitive residual-current monitoring unit Standard feature
Protection class I
Overvoltage category grid / battery / PV III / II / II
Dimensions (W / H / D) / Weight 19.7 x 23.1 x 9.3 in / 38.6 lb
Operating temperature range ?13 °F to +140 °F (?25 °C to +60 °C) with derating
Topology / cooling method Transformerless / Natural convection
Environmental protection rating IP65 / Type 3R
Communication protocols Modbus (SMA, SunSpec), Speedwire / Webconnect, SMA Battery Interface
Interfaces: WLAN / Ethernet / BAT-CAN / RS-485 Standard feature
2.4 GHz WLAN Standard feature
Ethernet ports / Number of outputs 2 / 1 (Multi function relay 30 Vdc /1 A)
Warranty: 10 / (+5 / +10 / +15 years) Standard feature / (Optional)
Certificates and approvals UL 1741 SB/SA, UL 62109-1, UL 1998, UL 1699B Ed. 1, UL9540, IEEE1547, FCC Part 15 (Class A & B), CAN CSA-C22.2, CA Rule 21, HECO Rule 14H, PV Rapid Shutdown System Equipment in accordance with UL1741, NEC 2020, NEC 2023 compliant
SMA Smart Connected Standard feature
SMA ShadeFix (integrated shade optimization) Standard feature
SunSpec certified transmitter (Rapid Shutdown) Standard feature
Rated power (at 120 V, 60 Hz) 1920 W
Max. apparent AC power 1920 VA
Nominal AC voltage 120 V
AC grid frequency 60 Hz
Activation mode Manual
