SMA Data Manager EDMM-20 M Monitor Up to 50 Devices Powered by EnnexOS
EDMM-20

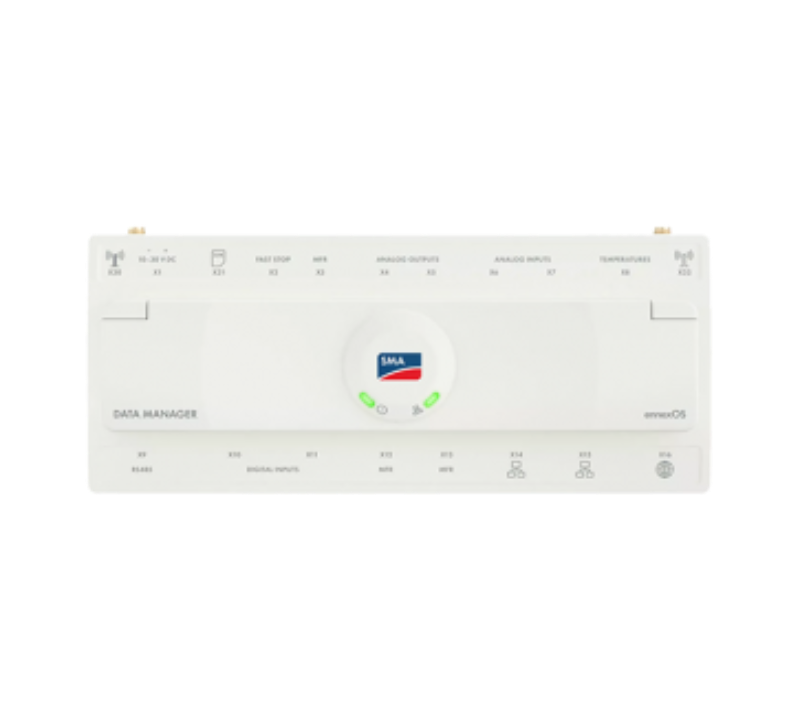

SMA Data Manager EDMM-20 M Monitors Up to 50 Devices Powered by ennexOS
Features
- Comprehensive Monitoring: Supports monitoring for up to 50 devices, including PV inverters, battery inverters, and energy meters.
- Enhanced Communication: Equipped with LAN, Wi-Fi, and RS485 connectivity for seamless integration with energy systems.
- Energy Management: Enables peak load shaving, battery optimization, and self-consumption control using advanced energy management profiles.
- Remote Access: Offers parameterization and monitoring via Sunny Portal powered by ennexOS.
- Flexible Design: Suitable for closed-loop (2.5 MVA) and open-loop (7.5 MVA) control systems.
- Advanced Analytics: Provides detailed visualization of energy data, status, and system performance.
Technology Overview
- Integration with Sunny Portal: Allows remote management of PV systems, including parameter adjustment and performance monitoring.
- Open and Closed Loop Control: Capable of active and reactive power management.
- Scalable Systems: Suitable for both residential and commercial setups with high device count and system power capacity.
- Cybersecurity: Enhanced safety with Trusted Platform Module (TPM) and over-the-air updates.
Applications
- Residential and Commercial PV Systems: Ideal for systems requiring centralized monitoring and control.
- Large-Scale PV Plants: Enables centralized management with satellite-based data for multiple data managers.
- Energy Storage Systems: Supports various energy management strategies with battery inverters.
- Grid Compliance: Ensures grid-compliant power control at the point of interconnection.
Installation
- Mounting: Designed for top-hat rail or wall mounting.
-
Connection:
- LAN: 3x RJ45 ports
- RS485: 2x 6-pin connections
- Wi-Fi: For commissioning and local access
- Configuration: Use the web interface or Sunny Portal for parameterization and system setup.
- Power Supply: Requires an external power unit (24 V DC).
Specifications
| Category | Details |
|---|---|
| Supported Devices | Up to 50 (inverters, meters, etc.) |
| Maximum System Power | 2.5 MVA (closed-loop), 7.5 MVA (open-loop) |
| Connections | LAN (3x RJ45), RS485 (2x), Wi-Fi |
| Digital/Analog I/O | 10x digital in, 4x analog in/out |
| Temperature Range | -20°C to +60°C |
| Dimensions (W x H x D) | 8.5 x 3.54 x 2.68 in |
| Weight | 0.82 lbs |
| Degree of Protection | IP20 |
| Mounting Location | Indoors |
| Warranty | 2 years |
