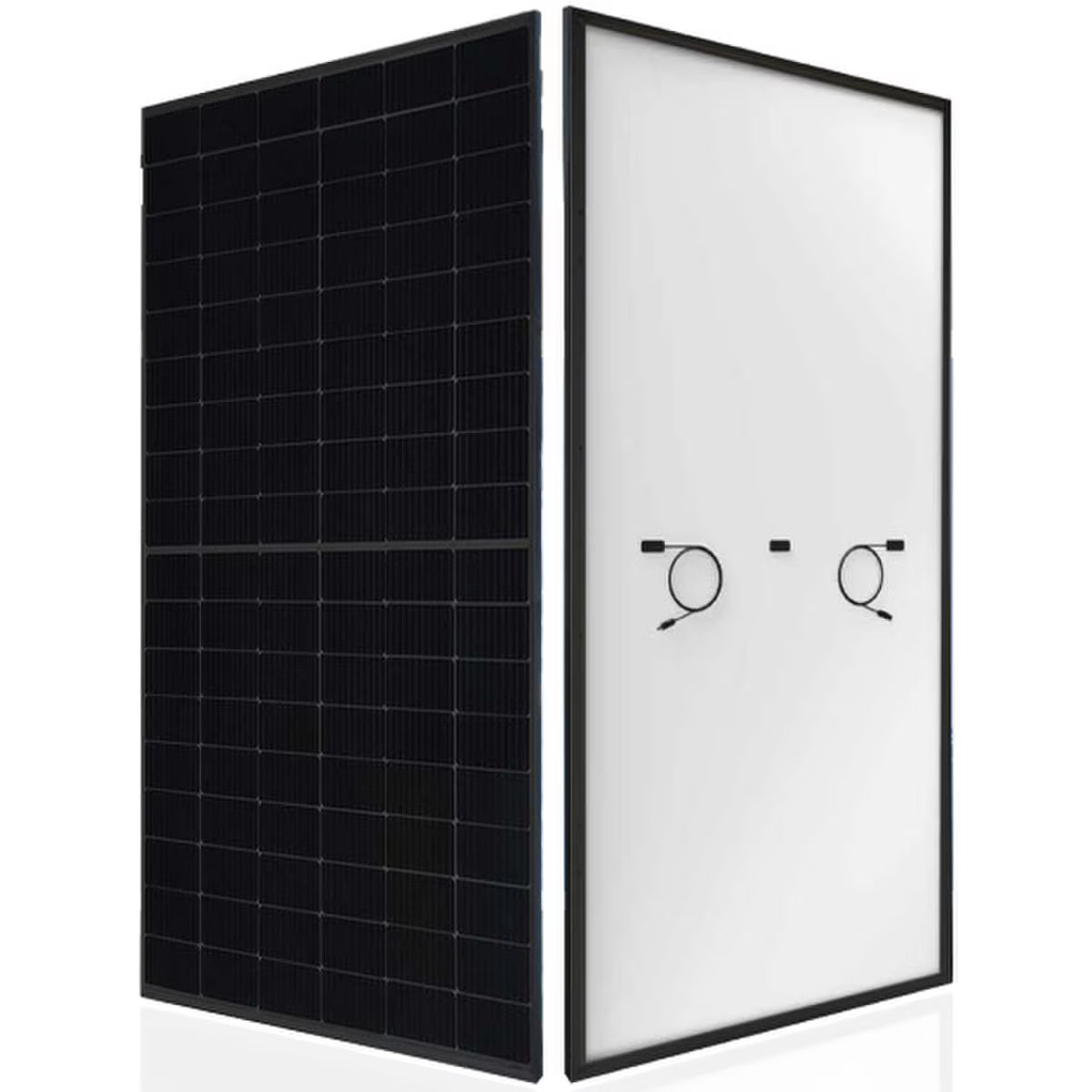

Sirius 450W N-Type Solar Panel with Domestic Content

23.07% Module Efficiency | ELNSM54M-HC-N-450 DC:BS-E-J

450W Rated Output | 108 Half-Cells | Includes Domestic Content
Build your solar system with a compact, high-efficiency Sirius 450W module featuring N-type monocrystalline cells, multi-busbar technology, and a 35mm aluminum frame.

High Output in a Compact Panel

The Sirius ELNSM54M-HC-N-450 DC:BS-E-J delivers 450W of rated output and 23.07% module efficiency. Its 108 half-cell layout combines 182mm N-type cell technology with multi-busbar connections to support efficient power collection and reduce internal electrical losses.

Measuring approximately 67.80 × 44.65 inches, the module offers a practical format for residential rooftops, commercial buildings, and compatible ground-mounted systems.

This product includes domestic content and carries a 30-year linear power output warranty, with product warranty coverage of up to 25 years under the applicable manufacturer terms.

Product Highlights

• 450W rated output under standard test conditions
• 23.07% module efficiency
• Includes domestic content
• 182mm N-type monocrystalline cell technology
• 108 half-cells with multi-busbar connections
• 0 to +4.99W power tolerance
• -0.29%/°C power temperature coefficient
• 3.2mm anti-reflective coated tempered front glass
• 35mm anodized aluminum alloy frame
• IP68-rated junction box with three diodes
• Up to 25-year product warranty
• 30-year linear power output warranty

Includes Domestic Content

The ELNSM54M-HC-N-450 DC:BS-E-J is the domestic-content configuration identified in this listing. It provides an option for projects evaluating domestic sourcing requirements.

Domestic-content designation does not establish project-level incentive eligibility. Confirm the applicable sourcing documentation and review the complete project requirements with your project advisor.

Perfect For

• Residential rooftop solar installations
• Commercial rooftops and distributed solar projects
• Schools, offices, retail buildings, and municipal facilities
• Ground-mounted systems with compatible racking
• Off-grid and battery-based systems with compatible equipment
• Projects requiring documented domestic content
• Installations seeking high output from available mounting space

N-Type Half-Cell Technology

The module combines N-type monocrystalline cells with a half-cell layout and multi-busbar connections. These features help reduce electrical resistance and mismatch losses within the panel.

The manufacturer highlights low-light performance and reduced losses from partial shading. Output still depends on sunlight, shading patterns, orientation, temperature, and the complete system design.

A -0.29%/°C power temperature coefficient describes how output changes as cell temperature rises above standard test conditions.

Built for Outdoor Installations

The Sirius 450W module uses 3.2mm anti-reflective coated tempered glass, an anodized aluminum alloy frame, and an IP68-rated junction box.

The datasheet lists mechanical loads of 5,400Pa on both the front and rear. Applicable load capacity depends on the approved mounting arrangement and manufacturer installation requirements.

The operating temperature range is -40°F to 185°F. The datasheet also lists IEC 62804 testing for resistance to potential-induced degradation.

Warranty Coverage

The manufacturer advertises up to a 25-year product warranty and a 30-year linear power output warranty for this series.

Confirm the warranty applicable to the supplied configuration and installation location. Coverage is subject to the manufacturer’s warranty terms and requirements.

Product Specifications

Mounting and Equipment Compatibility

Select racking that accommodates the panel dimensions, 35mm frame, approved clamp locations, and site-specific structural loads.

String inverters, microinverters, optimizers, and charge controllers must support the module’s electrical characteristics. Confirm cold-weather voltage, MPPT operating range, current limits, and the permitted number of connected modules.

This listing is for the solar panel. Racking, inverters, batteries, extension cables, and other installation materials are sold separately. Manufacturer pallet quantity describes packing configuration and does not change the quantity selected when ordering.

Frequently Asked Questions

About Sirius PV

Sirius PV, powered by ELIN, offers photovoltaic modules for residential and commercial solar installations. Its N-type series combines monocrystalline cells, half-cell layouts, and multi-busbar technology.
