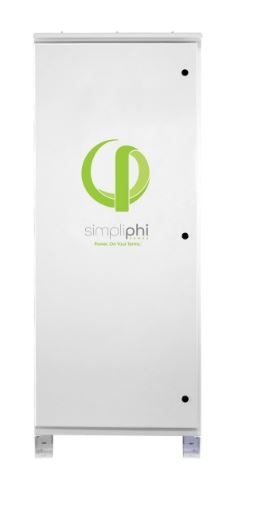

Simpliphi AccESS A-4PHI-SCH-PRO 15.2 (4x PHI 3.8kWh @48V) - with 6.8kW XW PRO I

Simpliphi AccESS A-4PHI-SCH-PRO 15.2 (4x PHI 3.8kWh @48V) - with 6.8kW XW PRO I

$18,968.45
$18,968.45

Simpliphi AccESS A-4PHI-SCH-PRO 15.2 (4x PHI 3.8kWh @48V) - with 6.8kW XW PRO I

Simpliphi AccESS A-4PHI-SCH-PRO 15.2 (4x PHI 3.8kWh @48V) - with 6.8kW XW PRO I

No reviews
$18,968.45
$18,968.45
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
SimpliPhi Power
Weight
600 lb
Dimension
29.5” x 76”x 20”

SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.8 kWh 48V 60 Amp batteries are Certified to UL 1973 Standard.

Features

  • Pre-programmed ESS for backup power, peak-shaving, and self-consumption of solar PV
  • Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits
  • Outdoor rated enclosure can be free-standing, or pad-mounted
  • Advanced LFP batteries with a 10,000 cycle / 10-year warranty
  • 98% round trip efficiency
  • System monitoring by system control panel or Combox with remote system monitoring by web browser or mobile device app
  • No cobalt, thermal regulation, cooling, or risk of fire
  • Extended operating temperature
  • System control panel or Combox

Specification

  • Schneider Electric: Conext XW Pro or XW+ 6848
  • Rated Output Power: 6.8 kW Continuous
  • Max Output Charging Current: 140 ADC
  • CEC Weighted Efficiency: 92.5%
  • Max Combined Output Power: 7.6 kW DC
  • Max Combined Charge Current: 150 ADC
  • Charging Temperature: 32°F to 120°F (0°C to 49°C)
  • Depth of Discharge: Up to 100% DoD
  • Round Trip Efficiency: 98%
  • Max Connected PV Power: 4.8 kW
  • Max Charge Current: 80 ADC

DATASHEET
