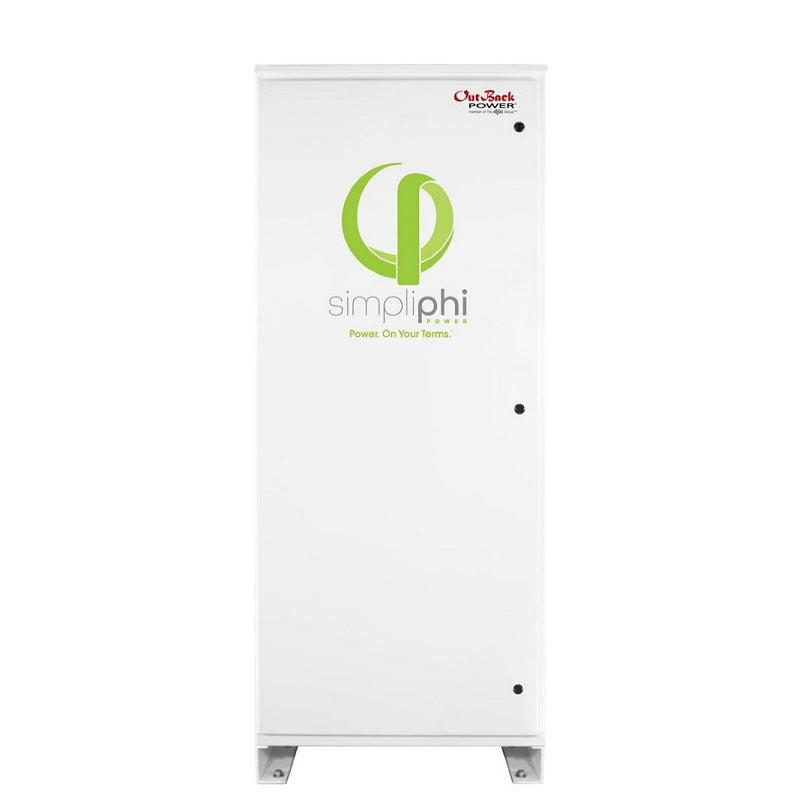

Simpliphi AccESS A-4PHI-OB w/ 4 x PHI 3.8 kWh Batteries & w/o CC

Simpliphi AccESS A-4PHI-OB w/ 4 x PHI 3.8 kWh Batteries & w/o CC

Regular price $19,315.56
Sale price $19,315.56 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: A-4PHI-OB

Simpliphi AccESS A-4PHI-OB w/ 4 x PHI 3.8 kWh Batteries & w/o CC

Simpliphi AccESS A-4PHI-OB w/ 4 x PHI 3.8 kWh Batteries & w/o CC

No reviews
Leave a Review
Regular price $19,315.56
Sale price $19,315.56 Regular price

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
SimpliPhi Power
Weight
600 lb
Dimension
29.50 x 76.00 x 20.

SimpliPhi Power designs and manufactures efficient, non-toxic and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS) and manufacturing methods to create safe, reliable, durable and highly scalable on-demand power solutions. Available for the residential, commercial, military and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance and durability of its batteries. SimpliPhi PHI 3.5 kWh 48V 60 Amp batteries are Certified to UL 1973 Standard.

Features

  • Standard Features - Pre-programmed ESS for backup power, peak shaving, and self consumption of solar PV. Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits. Outdoor rated enclosure can be free-standing, or pad-mounted. 98% round trip efficiency. Remote monitoring by web browser or mobile device app. No cobalt, thermal regulation, or risk of fire. Extended operation temperature. Solar MPPT for DC-coupled or off-grid installations. Automatic generator control for additional standby power.
  • Applications - SIA (Standard Interconnection Agreement) customers: ESS allows for solar PV poer to be self-consumed, while also providing a backup power source. NEM (Net Energy Metering customers: add standby power and peak-shaving to a new or existing net-metered solar array. Off-grid customers: ESS with 8kW solar MPPT combines power generation and energy management in a single package.
  • Intelligent - AccESS power security with safe, reliable, non-hazardous and efficient energy storage. AccESS any power generation source with intelligent management. AccESS your own power when and where you need it - inside or outside your home or business.

Specification

  • Enclosure Rating: NEMA 3R Outdoor rated
  • Operating Temperature: -4 to 122 °F (-20 to 50 °C)
  • OutBack Power: Radian GS8048A
  • Application: On / Off Grid
  • AC Connections: 1 Grid Port, 1 Generator Port
  • AC Output1: 120/240V AC, 60 Hz
  • Rated Power2: 8 kW (7 kW2)
  • Max Charge Rate: 115A DC, 7.2 kW (30A AC @ 240V AC)
  • CEC Weighted Efficiency: 92.50%
  • Rated kWh Capacity @ C/2: 14 kWh
  • Round Trip Efficiency: 98%
  • Cycle Life: 10,000+ (@ 80% DOD)
