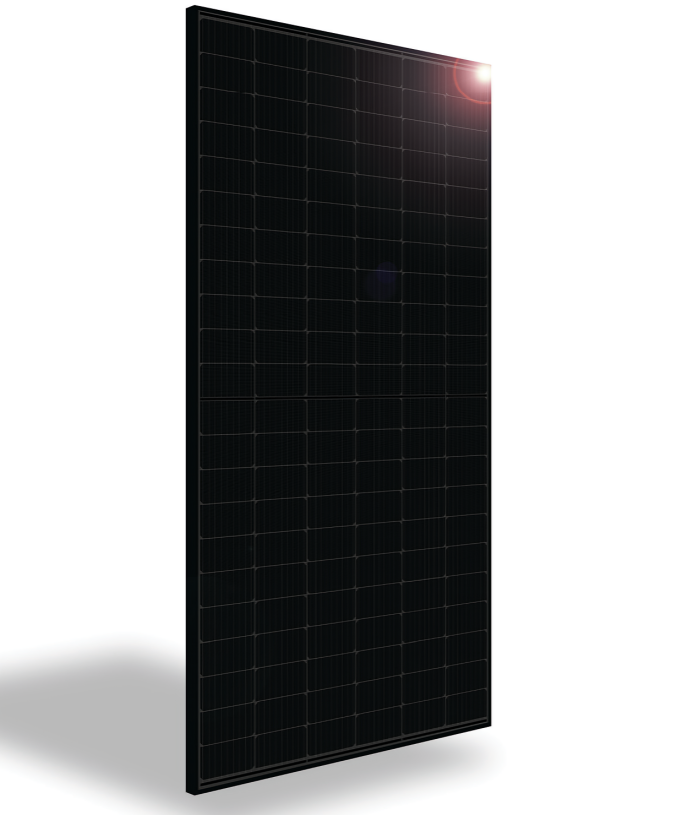

Silfab 410W SIL-410 HC+ All Black 132 Mono Cells Solar Panel Assembled in USA

Silfab 410W SIL-410 HC+ All Black 132 Mono Cells Solar Panel Assembled in USA

Regular price $168.99
Sale price $168.99 Regular price
50 IN STOCK
Leave a Review

MPN No: SIL-410 HC+

Silfab 410W SIL-410 HC+ All Black 132 Mono Cells Solar Panel Assembled in USA

Silfab 410W SIL-410 HC+ All Black 132 Mono Cells Solar Panel Assembled in USA

Regular price $168.99
Sale price $168.99 Regular price

1
2
3
4
5
6

View full details
.PDF
Datasheet
Description
Questions
Reviews
Manufacturer
Silfab Solar
Weight
47.04 lb
Dimension
40.8 x 175.3 x .37 inches

Silfab SIL-410 HC+ All Black 132 Mono Cells 410W Solar Panel

410 Wp | 132 Cells

20.7 % Maximum Module Efficiency

American Assembled. Eligible for Domestic Content Bonus Credit.

Spec Sheet

This next-generation HC+ provides even more power and is designed to outperform. Dependable, durable, high-performance solar panels engineered for North American homeowners. Featuring multi-busbar technology that maximizes energy collection and conversion while a high-efficiency, half-cell design improves performance and durability.

Technology and Overview

  • 410 W power output
  • 132 half-cut PERC cells
  • 20.7% efficiency
  • 1000 V DC maximum system voltage
  • MC4 from Staubli connectors
  • 25-year product and 30-year performance warranties

The SIL-410 HC+ incorporates advanced mono-crystalline technology, maximizing energy production efficiency and offering a sustainable energy solution.

Installation and Compatibility Overview

Designed for versatility, the SIL-410 HC+ supports various installation environments, making it suitable for both residential and commercial applications.



Specification Details
MPN / Model No. SIL-410 HC+
Test Conditions STC
Module Power (Pmax) 410
Maximum power voltage (Vpmax) 38.99
Maximum power current (Ipmax) 10.52
Open circuit voltage (Voc) 45.59
Short circuit current (Isc) 11.15
Module efficiency 0.207
Maximum system voltage (VDC) 1000
Series fuse rating 20
Power Tolerance 0 to +10
Module weight 21.3kg ±0.2kg (47lbs ±0.4lbs)
Dimensions (H x L x D) 75.3 in x 40.8 in x 1.37 in (1914 mm x 1036 mm x 35 mm)
Maximum surface load (wind/snow)* 5400 Pa rear load / 5400 Pa front load
Hail impact resistance ø 25 mm at 83 km/h
Cells 132 Half cells- Si mono PERC 9 busbar - 3.26 x 6.53 in
Glass 0.126 in high transmittance, tempered, anti-reflective coating
Cables and connectors (refer to installation manual) 53 in, ø 0.22 in (12AWG), MC4 from Staubli
Backsheet High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, fluorine-free PV backsheet
Frame Anodized Aluminum (Black)
Bypass diodes 3 diodes-30SQ045T (45V max DC blocking voltage, 30A max forward rectified current)
Junction Box UL 3730 Certified, IEC 62790 Certified, IP68 rated
Temperature Coefficient Isc +0.064 %/°C
Temperature Coefficient Voc -0.28 %/°C
Temperature Coefficient Pmax -0.36 %/°C
NOCT (± 2°C) 45 °C
Operating temperature -40/+85 °C
Module product workmanship warranty 25 years**
Linear power performance guarantee 30 years
Certifications UL 61215-1:2017 Ed.1, UL 61215-2:2017 Ed.1, UL 61730-1:2017 Ed.1, UL 61730-2:2017 Ed.1 , CSA C22.2#61730-1:2019 Ed.2, CSA C22.2#61730-2:2019 Ed.2, IEC 61215-1:2016 Ed.1, IEC 61215-2:2016 Ed.1, IEC 61730-1:2016 Ed.2, IEC 61730-2:2016 Ed.2, IEC
61701:2020 (Salt Mist Corrosion), IEC 62716:2013 (Ammonia Corrosion), CEC Listing, UL Fire Rating: Type 2
Factory ISO9001:2015
Modules Per Pallet: 26 or 26 (California)
Pallets Per Truck 32 or 30 (California)
Modules Per Truck 832 or 780 (California)

Questions and Answers (5)

Q

How are shipping costs calculated at US Solar Supplier?

A

Shipping costs at US Solar Supplier are calculated based on the weight and dimensions of the product(s) in your order. The company utilizes FedEx or UPS for ground shipments and trusted freight carriers for larger shipments. All shipments are insured for customer protection.

Q

What is the estimated delivery time for orders from US Solar Supplier?

A

For standard delivery, most orders will arrive at their destination within 7 to 10 business days. Please note that these estimates can change depending on the carrier's operational capabilities and other uncontrollable factors.

Q

How should I inspect my shipments upon delivery from US Solar Supplier?

A

It is essential to meticulously inspect your shipment upon delivery. If any damage or issues are found, note them on the Bill of Lading (BOL) or the delivery receipt. Major visible damage should result in the rejection of the delivery. Any damages must be reported to US Solar Supplier by email within 24 hours of delivery, including the signed BOL and any supporting documents or photos.

Q

How can I ensure that the solar products I'm ordering will fit my project needs?

A

US Solar Supplier offers only the best Tier 1 product offerings and high-quality solar equipment. You can design your solar project using the solar design tool, tailored to fit your needs. If you have specific preferences or deadlines, include this information in the order notes or contact the sales department before placing your order. US Solar Supplier is committed to empowering you with the tools and support needed to ensure your project's success.

Q

What financing options are available at US Solar Supplier for solar projects?

A

US Solar Supplier offers a range of finance solutions through its partners, including Power Purchase Agreements, Leases, and Loans. Additionally, their consultative approach can help you take advantage of PACE financing for commercial projects. The team at US Solar Supplier is ready to assist in finding the right finance solution to make your solar project a reality.

Reviews No reviews
