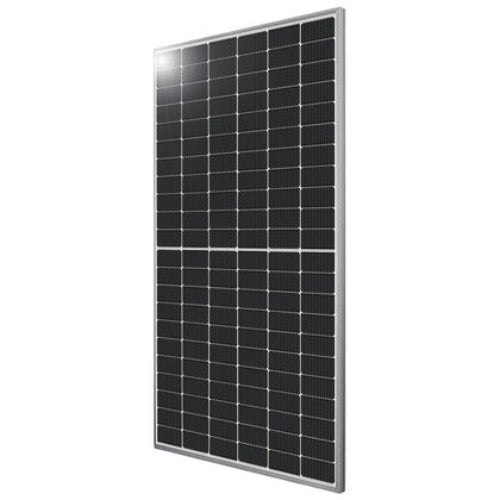

Silfab 520W SIL-520-QM N-Type Solar Panel
Silfab 520W SIL-520-QM N-Type Solar Panel
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Silfab 520W SIL-520-QM N-Type Solar Panel
SIL-520-QM
Specifications
Silfab 520W SIL-520-QM N-Type Solar Panel
Key Features
- 520W Maximum Power Output – Delivers up to 21.9% efficiency for superior energy generation.
- N-Type Monocrystalline Cells – Offers higher efficiency and lower degradation rates than P-Type modules.
- Lower Temperature Coefficient – Provides enhanced performance in high temperatures.
- High Performance – Maximizes sunlight absorption with enhanced rear-side reflection.
- High Durability – 5400Pa front load and 2400Pa rear load for extreme weather resistance.
- Long-Term Warranty – 25-year product warranty and 30-year linear performance guarantee.
Best Applications
Residential & Commercial Rooftop Solar – High-efficiency solution for homeowners and businesses.
Utility-Scale Installations – Optimized for large solar projects requiring long-term reliability.
Carports & Ground-Mount Systems – Designed for maximum energy yield in various applications.
Special Technology
The Silfab SIL-520-QM utilizes N-Type monocrystalline half-cut cells, reducing light-induced degradation (LID) and improving overall efficiency. The advanced anti-reflective glass coating enhances light absorption, ensuring optimal energy production in various weather conditions.
About Silfab Solar
Silfab Solar is a leading North American manufacturer of high-performance photovoltaic panels, providing cutting-edge technology, superior quality, and advanced solar solutions for residential, commercial, and utility applications.
Specifications
| Parameter | Value |
|---|---|
| Model Number | SIL-520-QM |
| Solar Cell Type | N-Type Monocrystalline Half-Cut |
| Nominal Power Output (Pmax) | 520W |
| Module Efficiency | 21.9% |
| Open Circuit Voltage (Voc) | 47.52V |
| Short Circuit Current (Isc) | 13.65A |
| Voltage at Pmax (Vmpp) | 40.48V |
| Current at Pmax (Impp) | 12.85A |
| Temperature Coefficient of Pmax | -0.29%/K |
| Maximum System Voltage | 1500V DC |
| Series Fuse Rating | 25A |
| Power Tolerance | 0 to +10W |
Mechanical Properties
| Parameter | Value |
|---|---|
| Dimensions (H × W × D) | 82.6 × 44.6 × 1.37 in |
| Weight | 57.8 lbs |
| Glass (Front) | 3.2mm High-Transmittance Tempered with DSM Anti-Reflective Coating |
| Frame | Anodized Aluminum (Silver) |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Connector Type | EVO2 Staubli (MC4 Compatible) |
| Cable Length | 53.15 in (1350mm) |
| Mechanical Load Capacity | 5400Pa (Front), 2400Pa (Rear) |
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year product warranty and 30-year linear performance guarantee.
warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the Silfab 520W panel?
The Silfab SIL-520-QM panel delivers 520 watts of power, offering high efficiency and optimal energy production for residential, commercial, and utility-scale projects.
Q: Is the Silfab 520W panel suitable for low-light conditions?
Yes, the panel features N-Type technology, ensuring excellent performance even in low-light environments such as cloudy days, early mornings, and late afternoons.
Q: What kind of warranty does Silfab offer for the 520W panel?
Silfab provides a 25-year product warranty and a 30-year linear power output warranty, ensuring long-term reliability and performance.
Q: Is the Silfab 520W panel compatible with different mounting systems?
Yes, the panel is designed to be compatible with a variety of standard racking and mounting systems, making installation flexible for both rooftop and ground-mounted setups.
Q: How durable is the Silfab 520W panel in extreme weather?
This panel is built to withstand high winds, heavy snow loads, and extreme temperatures, ensuring long-lasting durability and stable performance.
Q: Can the Silfab 520W panel help reduce energy costs?
Absolutely! Its high efficiency and advanced N-Type cell technology allow for greater energy production, helping to lower electricity bills and maximize solar investment returns.
Q: How many panels do I need for my home or business?
The number of panels required depends on your energy consumption and available space. For a household using approximately 10,000 kWh/year, around 19 to 20 Silfab 520W panels may be needed. Consult a certified installer for a precise estimate.
Q: How many panels are in each pallet?
Each pallet contains 27 Silfab 520W panels, making it convenient for larger installations.
Q: Can I order less than a full pallet?
Contact US Solar Supplier for details on ordering smaller quantities.
Q: Are these panels available for immediate shipping?
Yes, the Silfab 520W panels are in stock and ready to ship from our warehouse in Indiana, ensuring quick and efficient delivery for your solar project.
