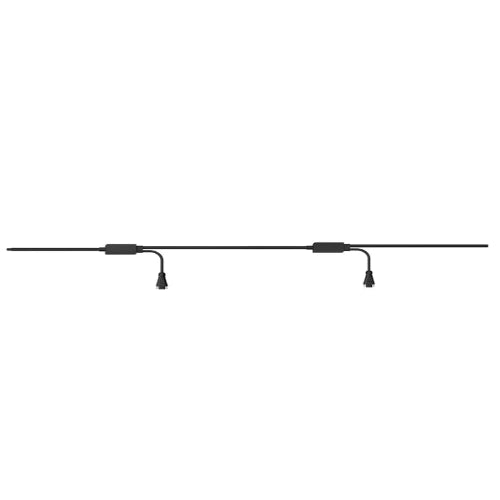

Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
MPN No: SigenMicro US AC Cable Kit-20-7.5ft-10
Expected ship date Oct 27 - Nov 03
In Stock
$826.25
Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
Regular price
$826.25
New
LESS THAN 50
Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
Available
MPN No: SigenMicro US AC Cable Kit-20-7.5ft-10
Regular price
$826.25
Expected ship date Oct 27 - Nov 03
SPEC_SigenMicro US AC Cable Kit-20-7.5ft-10_USSS
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$826.25
Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
MPN No:
SigenMicro US AC Cable Kit-20-7.5ft-10
Expected ship date Oct 27 - Nov 03
Sigenergy SigenMicro US 20-Connector AC Trunk Cable Kit, 10 AWG, 7.5 ft Spacing – US AC Cable Kit-20-7.5ft-10 AWG
The Sigenergy SigenMicro US AC Cable Kit-20-7.5ft-10 is a preconfigured AC trunk cable kit designed for compatible Sigenergy SigenMicro solar microinverter installations. Featuring 20 pre-installed AC connection points, 10 AWG conductors, and 7.5 ft connector spacing, this cable kit provides an organized solution for distributing AC power across residential rooftop photovoltaic arrays.
Designed around Sigenergy's pre-installed AC BUS architecture, the cable helps simplify rooftop wiring by reducing repetitive field assembly and providing regularly spaced connection points for compatible microinverters. The extended connector spacing is particularly useful for solar arrays where equipment placement requires greater separation between AC connections.
Kit Configuration: AC trunk cable with 20 pre-installed connectors, 4 end caps, 5 branch caps, 1 trunk unlock tool, and 1 branch unlock tool. This configuration follows the corresponding 20-connector kit shown in Sigenergy's SigenMicro accessory brochure; confirm the contents of the exact US SKU before ordering.
Key Technology
-
Pre-Installed AC BUS Architecture
Factory-installed AC connection points simplify microinverter wiring and reduce the need for repetitive connector assembly during installation. -
10 AWG AC Conductors
Uses larger-gauge conductors for AC power distribution, supporting appropriately engineered microinverter branch circuits. -
Extended Connector Spacing
Provides greater separation between connection points to accommodate compatible solar array layouts and microinverter mounting positions. -
SigenMicro Compatibility
Designed for use with compatible Sigenergy SigenMicro microinverters and the manufacturer's AC BUS connection system. -
Cut-to-Fit Cable Design
Sigenergy's pre-installed AC BUS cable architecture allows installers to adapt cable routing to the installation layout using approved cutting and termination procedures. -
Protective Connection Accessories
Compatible protective caps are used to seal unused AC connection points and cable ends against environmental exposure. -
Serviceable AC Connections
The SigenMicro connection system supports approved cable disconnection and microinverter servicing using dedicated unlocking tools. -
Flexible Rooftop Installation
Supports compatible solar installations with landscape-oriented modules and other layouts requiring wider microinverter spacing.
Best Uses
-
Residential Rooftop Solar Systems
Suitable for compatible Sigenergy SigenMicro installations requiring organized AC trunk wiring. -
Landscape-Oriented Solar Arrays
Well suited to array designs where greater separation between microinverter connection points helps accommodate the module layout. -
Dual-Input Microinverter Installations
Useful for compatible SigenMicro configurations in which microinverters are positioned to serve adjacent photovoltaic modules. -
Multi-Microinverter AC Wiring
Provides a common AC cabling pathway for connecting compatible microinverters within properly designed branch circuits. -
New Solar Array Installations
Helps installers establish an organized wiring layout with predetermined AC connection locations. -
Solar System Expansion
Supports compatible system extensions when branch-circuit loading, connector compatibility, and manufacturer requirements are satisfied.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sigenergy |
| Product Family | SigenMicro |
| Product Name | SigenMicro US AC Trunk Cable Kit |
| Model / Part Number | SigenMicro US AC Cable Kit-20-7.5ft-10 |
| Product Type | Pre-Installed AC Trunk Cable Kit |
| Application | Solar Microinverter AC BUS Wiring |
| Conductor Size | 10 AWG |
| Nominal Conductor Cross-Section | Approximately 5.26 mm² |
| AC Connector Count | 20 Pre-Installed Connection Points |
| Connector Spacing | 7.5 ft (Approximately 2.3 m) |
| Nominal Trunk Cable Length | Approximately 151 ft (46 m), Based on the Corresponding 20-Connector Brochure Configuration; US SKU Confirmation Required |
| AC Connection System | Sigenergy SigenMicro AC BUS |
| Installation Method | Pre-Installed AC BUS Cable; Cut as Needed per Manufacturer Instructions |
| Compatible Equipment | Compatible Sigenergy SigenMicro Microinverters |
| Typical Array Layout | Landscape-Oriented PV Modules and Other Compatible Wide-Spacing Layouts |
| Maximum AC Branch Current | Verify Against Manufacturer's US Cable Rating and Applicable Electrical Code |
| Operating Voltage Rating | Not Confirmed for Exact US SKU |
| Weight | 36.4 lb |
About Sigenergy:
Sigenergy develops advanced solar energy and energy-storage technologies, including microinverters, hybrid inverters, battery storage systems, electric vehicle charging equipment, and intelligent energy management solutions. The company focuses on integrating power electronics, communication technology, and software-driven energy management to simplify solar installations and improve system performance.
Organized AC Trunk Connectivity for SigenMicro Solar Arrays
The Sigenergy SigenMicro US AC Cable Kit-20-7.5ft-10 provides an efficient AC wiring solution for compatible SigenMicro photovoltaic installations. Its pre-installed AC BUS architecture, larger conductor configuration, and extended connector spacing help simplify rooftop wiring and support organized solar array construction.
