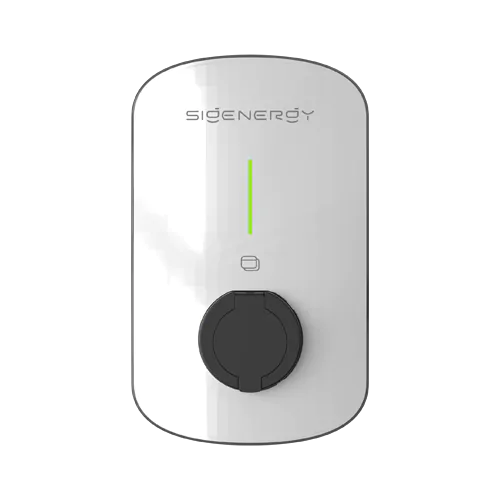

Sigen EV AC Charger 11.5 kW WLAN Type 1 Connector
Hardwired White Sigen EVAC 11.5 Type 1

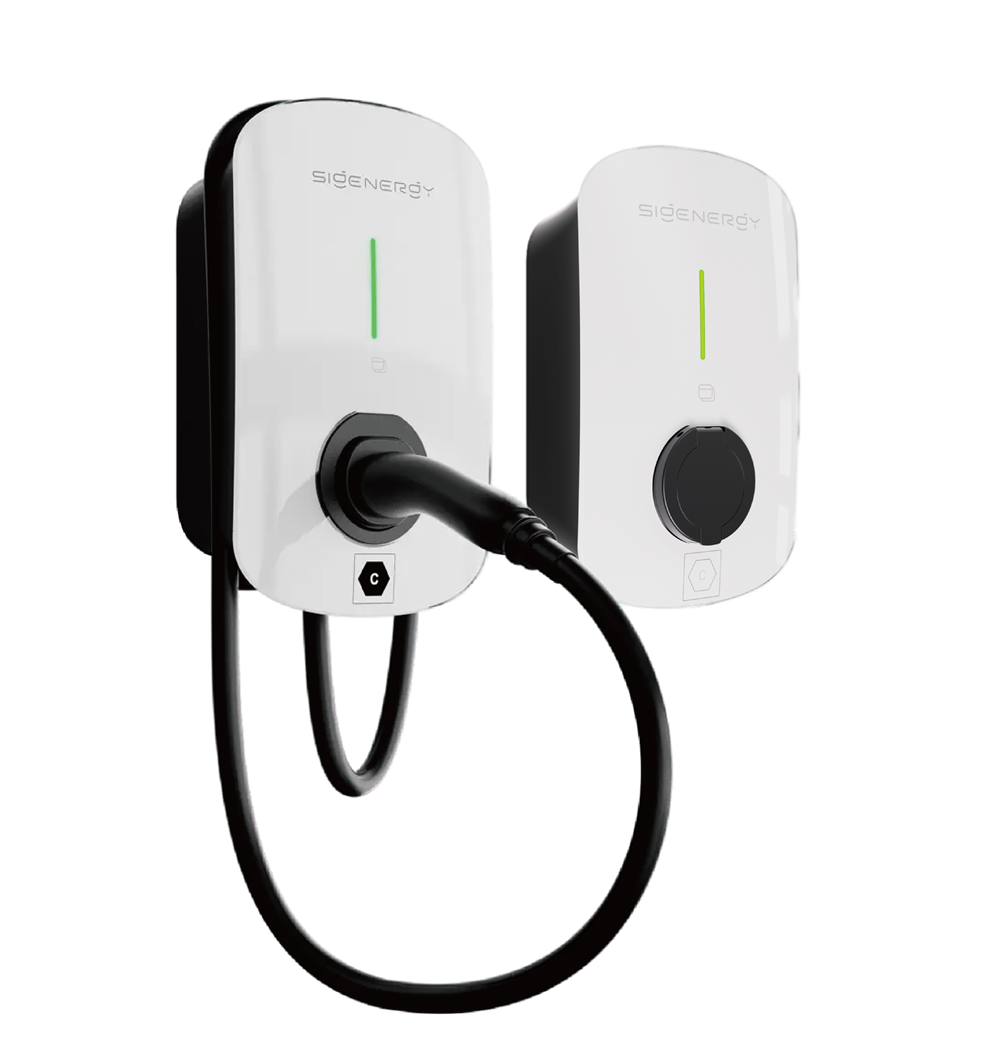

The Sigen EVAC 11.5 Type 1 is a smart Level 2 EV charger designed for seamless integration with the Sigenergy SigenStor ecosystem. Engineered for efficient residential EV charging, it supports green-energy charging using solar surplus, intelligent load balancing, and scheduled charging through the mySigen App. With durable NEMA 4X protection, IK10 impact rating, and flexible wall-mounted installation, this charger delivers reliable, intelligent EV charging for modern energy-smart homes.
Key Technology
-
Green Energy Charging with SigenStor
Allows EV charging powered by solar surplus when integrated with SigenStor systems, maximizing renewable energy usage. -
Smart App Monitoring & Scheduling
Supports data tracking, charging schedules, and remote management via the mySigen App. -
Dynamic Load Management
Helps prevent overload by automatically adjusting charging power when paired with a Sigen Power Sensor or Meter Collar. -
Flexible Charging Modes
Standard and scheduled charging modes allow optimization based on solar availability or electricity pricing. -
Rugged Outdoor Design
NEMA 4X enclosure and IK10 mechanical protection ensure long-lasting performance indoors or outdoors.
Best Uses
-
Residential EV Charging
Ideal for homeowners needing fast, reliable Level 2 charging at home. -
Solar + Storage + EV Systems
Perfect for pairing with SigenStor energy systems for solar-priority charging. -
Smart Energy Homes
Provides intelligent control, remote monitoring, and load balancing for advanced home energy setups.
Protection & Smart Features
- Integrated RCD Protection: CCID 20
- Ground Fault / Surge / Overload Protection: Supported
- Communication: WLAN / Ethernet, RS-485 Modbus RTU
- Authentication: App or Auto-charge mode
- Charging Connector: Type 1 (SAE J1772)
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Sigenergy |
| Model | Sigen EVAC 11.5 Type 1 |
| Nominal Charging Power | 11.5 kW |
| Output Voltage | 208 – 240 V |
| Output Current Range | 6 – 48 A |
| Nominal AC Frequency | 60 Hz |
| Charging Connector | Type 1 (SAE J1772) |
| AC Input Connection | Hard-wired |
| Dynamic Load Management | Supported |
| Communication | WLAN / Ethernet, RS-485 |
| Charging Modes | Standard / Scheduled charging |
| Dimensions (W × H × D) | 9.21 × 15.12 × 5.35 in |
| Weight | 16.3 lb |
| Integrated Cable Length | 25 ft (7.5 m) |
| Operating Temperature Range | -22°F to 122°F (-30°C to 50°C) |
| Cooling | Natural convection |
| Enclosure Rating | NEMA 4X |
| Impact Protection | IK10 |
| Installation | Wall-mounted |
| Application Environment | Indoor / Outdoor |
| Standby Power Consumption | < 3.6 W |
About Sigenergy:
Sigenergy develops integrated renewable energy solutions combining solar PV, battery storage, EV charging, and intelligent energy management. Their products focus on maximizing renewable energy utilization while delivering smart automation and seamless user control for modern homes.
Smart Type 1 EV Charging Powered by Solar
The Sigen EVAC 11.5 Type 1 offers efficient Level 2 EV charging with advanced smart energy features, allowing homeowners to prioritize solar charging, schedule sessions intelligently, and maintain reliable protection in any installation environment. When paired with SigenStor, it becomes part of a complete smart energy ecosystem.
