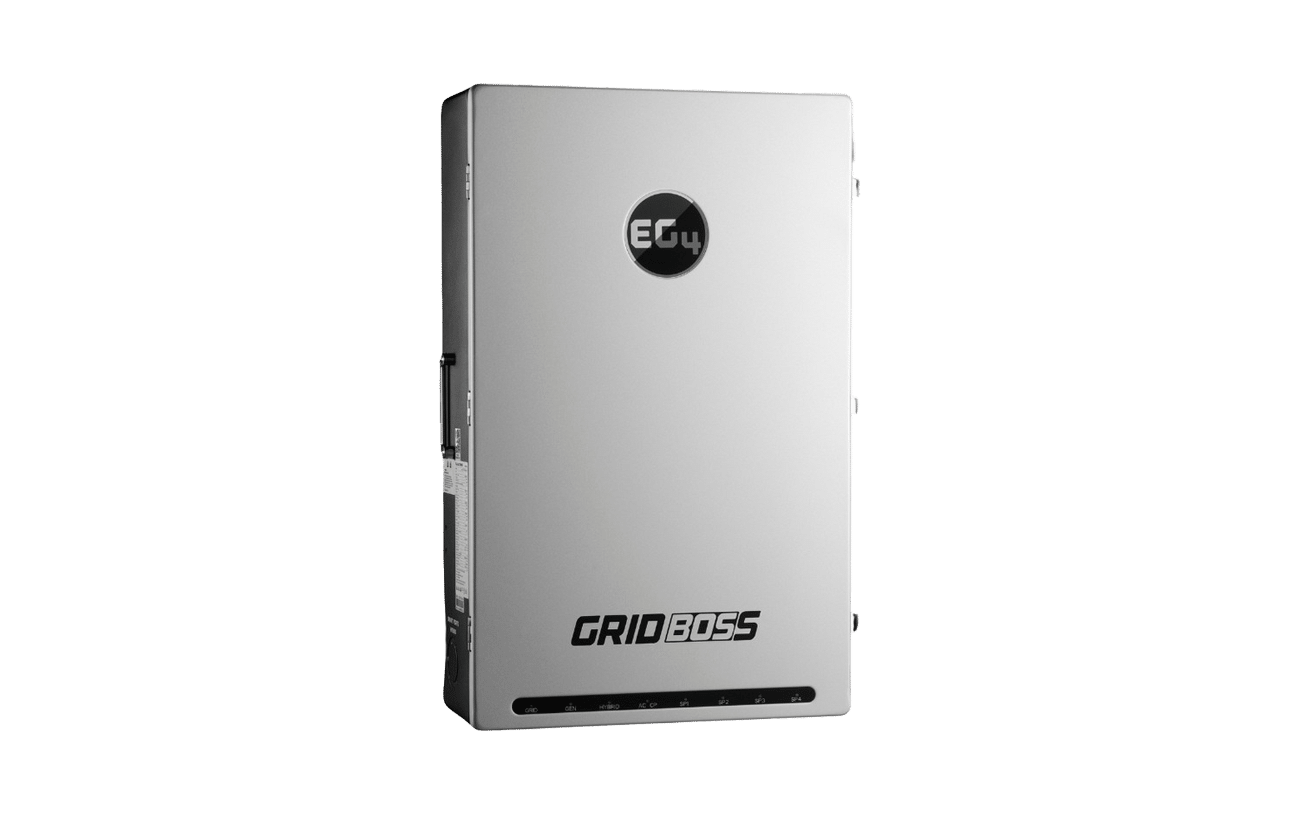

EG4 Service Box 200 Amp GridBoss EG4GRIDBOSS
The GridBoss is a central hub for managing your power system.
The EG4 GridBOSS integrates advanced smart load management technology, allowing users to shed or prioritize loads based on battery state-of-charge (SOC) and solar availability. With built-in surge protection, hybrid inverter compatibility, and generator input support, it optimizes energy distribution, enhances reliability, and ensures seamless power transitions.
- Connect your solar panels, batteries, generator, and utility power in one place.
- Manage how your home uses energy, prioritizing essential loads during outages.
- Monitor your energy system remotely.
- Simplify the installation of your energy storage system.
USE:
- Microgrid Interconnect Device (MID): The GridBoss acts as a bridge between your utility power, renewable energy sources (like solar), energy storage (batteries), and your home's electrical loads.
- 200A Service Entrance: It can handle a 200 amp service, making it suitable for many homes and even some commercial applications.
- Smart Load Management: The GridBoss has intelligent ports that can manage and prioritize power to different circuits in your home. This is crucial for maximizing battery backup during a power outage or optimizing energy use.
- AC Coupling: It supports AC coupling, which means it can integrate with various types of inverters, including those used in grid-tied solar systems.
- Generator Support: You can connect a generator to the GridBoss to provide backup power when needed.
- Remote Monitoring: The GridBoss allows you to monitor and control your energy system remotely, often through an app or web interface.
-
Simplified Installation: By consolidating multiple components, the GridBoss can reduce installation time and cost.
Key Features
- Simplified Energy Storage Integration: Replaces up to 10 traditional components, reducing installation costs and wiring complexity.
- 200A Service Entrance Rated: Features a 22kAIC main breaker and supports grid, load, and generator inputs.
- Smart Load Management: Includes 4 configurable smart ports to optimize battery usage and grid interaction.
- Integrated Generator Support: Seamlessly connects with backup generators, providing automated transfer functionality.
- Hybrid Inverter Compatibility: Supports EG4 12kPV, 18kPV, and FlexBOSS21 inverters for hybrid solar setups.
- Remote Monitoring & Control: Enables real-time system tracking, firmware updates, and load control via the EG4 mobile app.
- Fast Transfer Time: Transfers power in ~25ms, ensuring seamless power continuity during outages.
- Outdoor-Rated Durability: NEMA 3R-rated, making it weatherproof and suitable for outdoor installations.
Best Applications
- Residential & Commercial Energy Storage – Streamlines solar battery installations for grid-tied and off-grid systems.
- Microgrid & Hybrid Solar Setups – Centralizes grid, generator, and battery connections for enhanced efficiency.
- Backup Power Solutions – Ensures seamless transitions between grid, solar, and generator power sources.
About EG4 Electronics
EG4 Electronics is a leading provider of solar and energy storage solutions, specializing in high-performance inverters, batteries, and system integration devices. With a focus on scalability, reliability, and advanced energy management, EG4 products are trusted in residential, commercial, and off-grid applications.
Specifications
| Parameter | Value |
|---|---|
| Model Number | MI-200-2P-HYB-AW-01 |
| Service Entrance Rating | 200A with 22kAIC main breaker |
| Nominal AC Voltage | 120/240VAC (L1/L2/N required) |
| Frequency | 60 Hz |
| Maximum Grid Current | 200A |
| Maximum Generator Input | 125A |
| Hybrid Ports | 3 (Up to 70A per port) |
| Compatible Inverters | EG4 12kPV, 18kPV, FlexBOSS21 |
| Smart Load Ports | 4 configurable ports (125A, 80A, 60A, 60A) |
| Communication Interface | RS485, Wi-Fi, CAN |
| Idle Consumption | ~55W |
| Transfer Time | ~25ms |
| Internal Bus Rating | 350A |
| Internal Fuse Rating | 315A |
| Operating Altitude | <6561 ft (<2000m) |
| Relative Humidity | 0 – 100% |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Enclosure Rating | NEMA 3R (Outdoor Rated) |
| Dimensions (H × W × D) | 31.5 × 19.7 × 7 in |
| Weight | 55 lbs |
| Certifications | UL1741, UL67, UL869A, FCC Part 15 (Pending) |
| Warranty | 10 Years |
