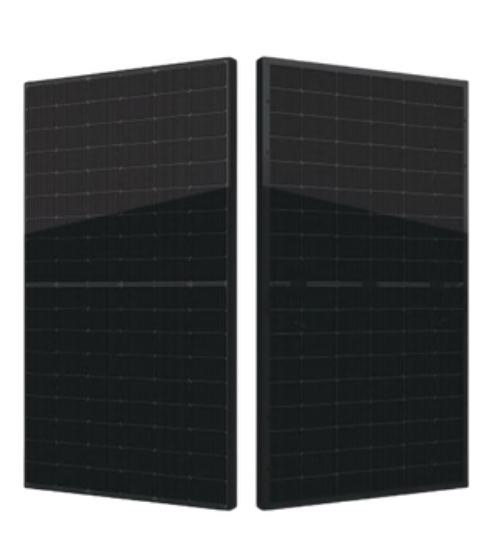

Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
MPN No: SRP-440-BTD-BG
Expected ship date Jul 09 - 16
In Stock
$5,148.00
Pallet
Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
Regular price
$5,148
$0.32/watt
Sale price
$143.00/per panel
New
216 IN STOCK
Pallet
Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
Available
MPN No: SRP-440-BTD-BG
Regular price
$5,148
$0.32/watt
Sale price
$143.00/per panel
Expected ship date Jul 09 - 16
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$5,148
Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
MPN No:
SRP-440-BTD-BG
Expected ship date Jul 09 - 16
≥ 36
Seraphim 440W (Pallet of 36) Nebula Bifacial N-TOPCON All Black SRP-440-BTD-BG
The Seraphim SRP-440-BTD-BG is a high-efficiency bifacial N-Type TOPCon solar module engineered for residential solar applications. Built with advanced 182mm TOPCon cells, multi-busbar technology, and lightweight dual-glass construction, this module delivers outstanding energy production, enhanced durability, and long-term reliability.
With an impressive 22.53% module efficiency, bifacial energy generation capability, and low annual degradation rates, the SRP-440-BTD-BG is designed to maximize lifetime energy yield while reducing the levelized cost of energy (LCOE). The bifacial architecture allows the module to capture reflected irradiance from the rear side, increasing total energy production and improving project economics.
Key Technology
-
N-Type TOPCon Technology
Advanced TOPCon cell architecture improves conversion efficiency, reliability, and long-term performance. -
Bifacial Power Generation
Captures reflected sunlight from the rear side of the module to increase overall energy production. -
Multi-Busbar Cell Technology
Improves current collection efficiency while reducing resistive losses and hot spot risk. -
22.53% Module Efficiency
High conversion efficiency maximizes power generation per square foot. -
Lightweight Dual-Glass Construction
1.6mm front and rear semi-tempered glass provide durability while reducing module weight. -
Excellent Low-Light Performance
Maintains strong energy production during cloudy conditions and early morning or evening operation. -
Superior Mechanical Strength
Designed to withstand heavy snow and wind loads for long-term reliability. -
Low Degradation Rate
Only 1% first-year degradation and 0.4% annual degradation thereafter.
Best Uses
-
Residential Rooftop Solar Systems
High efficiency and lightweight construction make it ideal for residential installations. -
Ground Mount Solar Systems
Bifacial design increases energy yield through rear-side irradiance capture. -
Carports & Elevated Arrays
Excellent choice for installations that benefit from bifacial energy generation.
Warranty
- Product Warranty: 15 Years
- Linear Power Warranty: 30 Years
- First-Year Power Degradation: ≤1.0%
- Annual Degradation (Years 2-30): ≤0.4%
- 30-Year Power Retention: 87.4%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Seraphim |
| Model | SRP-440-BTD-BG |
| Series | Nebula Series |
| Cell Type | N-Type Monocrystalline TOPCon |
| Cell Configuration | 108 Cells (182 × 91 mm) |
| Module Type | Bifacial Dual Glass |
| Rated Power (Pmax) | 440W |
| Module Efficiency | 22.53% |
| Power Tolerance | 0 ~ +4.99W |
| Maximum Power Voltage (Vmp) | 32.70V |
| Maximum Power Current (Imp) | 13.47A |
| Open Circuit Voltage (Voc) | 39.30V |
| Short Circuit Current (Isc) | 14.15A |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | +0.046%/°C |
| NOCT | 45 ± 2°C |
| Bifaciality | 80% ± 5% |
| Front Glass | 1.6mm AR Coating Semi-Tempered Low-Iron Glass |
| Rear Glass | 1.6mm Semi-Tempered Low-Iron Glass |
| Frame | Black Anodized Aluminum Alloy |
| Junction Box Rating | IP68, 3 Diodes |
| Cable Size | 4.0mm² |
| Cable Length | 250mm (+) / 350mm (-) |
| Dimensions | 67.80 × 44.65 × 1.10 in |
| Weight | 46.3 lb |
| Front Load Rating | 5400 Pa |
| Rear Load Rating | 2400 Pa |
| Pallet Quantity | 39 Modules |
| Container Quantity | 1014 Modules per 40'HQ |
About Seraphim:
Seraphim Energy Group is a global solar module manufacturer specializing in advanced photovoltaic technologies for residential, commercial, and utility-scale applications. The company is recognized worldwide for producing high-efficiency solar modules designed to deliver exceptional long-term performance and reliability.
Advanced Bifacial TOPCon Performance for Modern Solar Projects
The Seraphim SRP-440-BTD-BG combines N-Type TOPCon technology, bifacial energy generation, lightweight dual-glass construction, and industry-leading long-term performance, making it an excellent choice for residential solar installations seeking maximum energy production and reliability.
