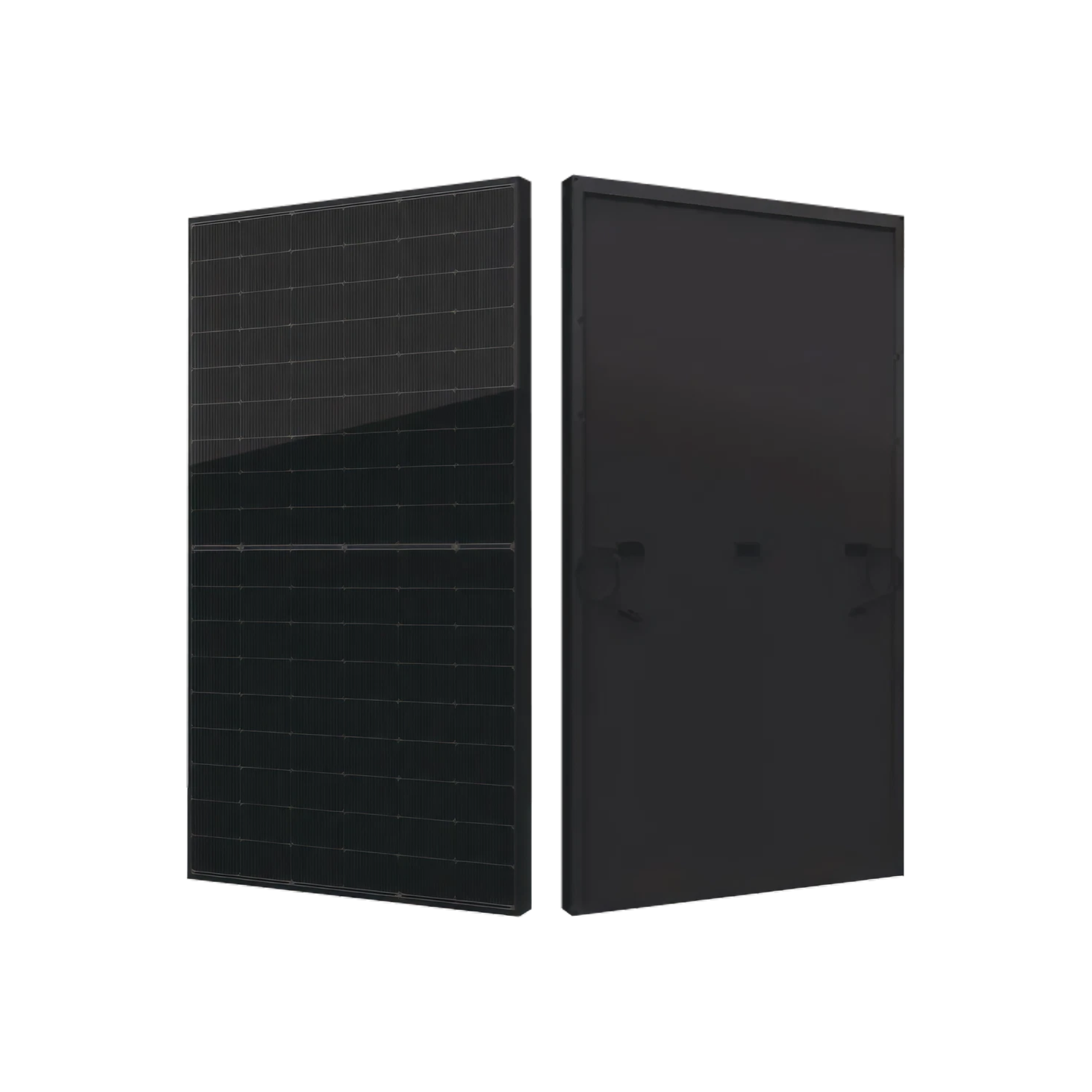

Seraphim 410W PERC Seco Mono Solar Panel SRP-410-BMD-HV
MPN No: SRP-410-BMD-HV
Expected ship date Nov 25 - Dec 02
In Stock
189.99
-13%
$164.99
Sale
Seraphim 410W PERC Seco Mono Solar Panel SRP-410-BMD-HV
Seraphim 410W PERC Seco Mono Solar Panel SRP-410-BMD-HV
Regular price
$189.99
-13%
$164.99
Sale price
$0.40
/watt
13% OFF
New
504 IN STOCK
Sale
Seraphim 410W PERC Seco Mono Solar Panel SRP-410-BMD-HV
Seraphim 410W PERC Seco Mono Solar Panel SRP-410-BMD-HV
In Stock
MPN No: SRP-410-BMD-HV
Regular price
$189.99
-13%
$164.99
Sale price
$0.40
/watt
Expected ship date Nov 25 - Dec 02
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$189.99
-13%
$164.99
Seraphim 410W PERC Seco Mono Solar Panel SRP-410-BMD-HV
MPN No:
SRP-410-BMD-HV
Expected ship date Nov 25 - Dec 02
In Stock
Sale
Seraphim 410W Seco PERC Mono SRP-410-BMD-HV
Tier 1 PV Manufacturer – BloombergNEF Certified
The Seraphim SRP-410-BMD-HV is a 410 W monofacial module using 108 mono PERC half-cells on a compact 1722 × 1134 mm format. With 21.0% module efficiency, 1,500 V DC system rating, and robust 3.2 mm AR-coated glass with an anodized aluminum frame, it delivers dependable performance and low BOS cost for residential and C&I rooftops.
Key Benefits
High Output, Small Footprint: 410 W nameplate on a 30 mm-thick, 1.72 m module for dense layouts.
Lower BOS/LCOE: 1,500 VDC system rating supports longer strings.
Proven Reliability: 5400 Pa front / 2400 Pa rear load ratings; IP68 junction box.
Extended Warranty: 15-year product & 25-year linear power output warranty.
Special Technology
108 Half-Cell Mono PERC: Reduced resistive losses and improved shade tolerance versus full-cell designs.
Low-Iron AR Glass: 3.2 mm tempered glass enhances low-light response.
Warranty
15-Year Product Warranty · 25-Year Linear Power Output Warranty.
Best Uses
Residential & C&I Rooftops: High-efficiency module for limited roof area and stringing up to 1,500 VDC.
Specifications Table
| Specification | Data |
|---|---|
| Model | SRP-410-BMD-HV |
| Cell / Layout | Monocrystalline PERC · 108 half-cells |
| Rated Power (STC) | 410 W |
| Module Efficiency (STC) | 21.0 % |
| Open-Circuit Voltage Voc | 37.50 V |
| Short-Circuit Current Isc | 13.94 A |
| Voltage at Pmax Vmp | 31.43 V |
| Current at Pmax Imp | 13.05 A |
| Power Tolerance | 0 to +4.99 W |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse | 30 A |
| Temperature Coefficients | Pmax −0.34 %/°C · Voc −0.26 %/°C · Isc +0.05 %/°C |
| NOCT | 45 ± 2 °C |
| Mechanical Load | Front 5400 Pa · Rear 2400 Pa |
| Dimensions (L × W × H) | 67.80 × 44.65 × 1.18 in |
| Weight | 47.40 lbs |
| Front Glass | 3.2 mm low-iron tempered, AR-coated |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| Connector / Cables | 4.0 mm²; 250 mm (+) / 350 mm (−) (customizable) |
| Packing (40′HQ) | 36 pcs/pallet · 26 pallets/container = 936 pcs; (USA typical: 36 × 23 = 828 pcs) |
| Operating Temperature | −40 to +85 °C |
| Certifications (quality systems) | ISO 9001 / ISO 14001 / ISO 45001 |
| Warranty | 15-Year Product · 25-Year Linear Power |
About Seraphim:
Seraphim is a leading solar module manufacturer founded in 2011, specializing in the research, production, and sales of high-efficiency photovoltaic modules. With a global presence in over 120 countries and a 13 GW production capacity, Seraphim is recognized as a Tier 1 solar brand known for quality, innovation, and reliability.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 15-year product warranty and a 25-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the SRP-410-BMD-HV?
The SRP-410-BMD-HV produces 410 W of power at STC, making it a high-efficiency choice for both residential and commercial installations.
Q: Are SRP-410-BMD-HV panels suitable for areas with low sunlight?
Yes — this panel uses half-cut PERC monocrystalline cells, which help improve performance under diffuse light and low-irradiance conditions such as hazy, cloudy skies or early morning/late afternoon.
Q: What kind of warranty does Seraphim offer for the SRP-410-BMD-HV?
Seraphim offers a 15-year product workmanship warranty and a 25-year linear performance warranty, guaranteeing around 84.8 % of original output at year 25.
Q: Are these panels compatible with different mounting systems?
Yes — the SRP-410-BMD-HV is compatible with standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted arrays.
Q: How durable are SRP-410-BMD-HV panels in harsh weather conditions?
These panels are built for durability, featuring tempered anti-reflective glass, an anodised aluminium frame, and load ratings of 5,400 Pa snow load and 2,400 Pa wind load.
Q: Can SRP-410-BMD-HV panels help me save on energy costs?
Absolutely! With an efficiency of around 21 % and high-voltage (up to 1500 V system) capability, you’ll generate more electricity per square metre—reducing energy bills and shortening your pay-back period.
Q: How many panels do I need for my home?
That depends on your energy usage and available roof or ground space. As a general guide, if you use about 10,000 kWh per year, you might need approximately 24 – 28 panels. A certified installer can provide a precise estimate.
Q: How many panels are in each pallet?
Each pallet includes 36 panels of the SRP-410-BMD-HV.
