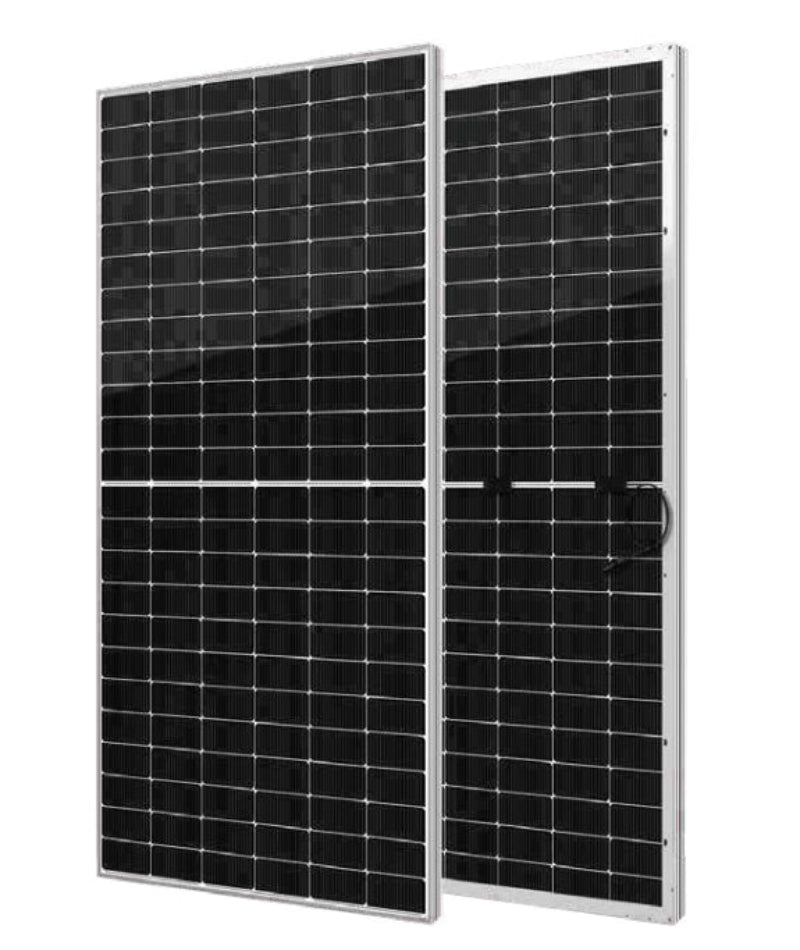

SEG 585W Yukon N Series SEG-585-BTA-BG Half Cell N Type Bifacial
SEG 585W Yukon N Series SEG-585-BTA-BG Half Cell N Type Bifacial
SEG 585W Yukon N Series SEG-585-BTA-BG Half Cell N Type Bifacial
SEG 585W Yukon N Series SEG-585-BTA-BG Half Cell N Type Bifacial
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
SEG 585W Yukon N Series SEG-585-BTA-BG Half Cell N Type Bifacial
SEG-585-BTA-BG
Specifications
SEG 585W Yukon N Series SEG-585-BTA-BG Half Cell N Type Bifacial
One Pallet Minimum: 36 Panels/Pallet
Important Note: Ships by February 20th, 2025
Features
The SEG Solar SEG-585-BTA-BG 585W panel is a high-performance bifacial module engineered for utility-scale and commercial installations:
- High Efficiency: Achieves a module efficiency of 22.45% with N-Type monocrystalline half-cut cells.
- Bifacial Design: Provides up to 80±10% bifaciality, delivering additional energy from the rear side.
- Durability: Designed to withstand front mechanical loads up to 5400 Pa and rear loads up to 2400 Pa.
- Advanced Technology: Features 144 N-Type half-cut cells (182 × 91 mm) with multi-busbar design.
- Extended Warranty: Includes a 30-year linear power output warranty with a degradation rate of 0.4% annually after the first year.
Technology Overview
This module incorporates N-Type monocrystalline half-cut cells with a bifacial design, ensuring high energy yield under varying light conditions. The advanced cell and glass technologies reduce losses, improve temperature coefficients, and enhance energy generation, especially in large-scale applications.
Installation
- Dimensions: 89.69 × 44.65 × 1.18 inches (2278 × 1134 × 30 mm).
- Weight: 70.5 lbs (32 kg).
- Equipped with PV wire (12 AWG) and PV-CO02-xy or MC4 connectors for straightforward installation.
Applications
- Ideal for utility-scale solar farms and commercial rooftops.
- Optimized for high-output systems requiring 1500V configurations.
Specifications
| Category | Specification |
|---|---|
| Electrical (STC) | |
| Power Output (Pmax) | 585 W |
| Efficiency | 22.45% |
| Voltage (Vmp) | 44.02 V |
| Current (Imp) | 13.17 A |
| Open Circuit Voltage (Voc) | 51.95 V |
| Short Circuit Current (Isc) | 13.84 A |
| Bifaciality Ratio | 80±10% |
| Mechanical | |
| Dimensions (L×W×D) | 89.69 × 44.65 × 1.18 in |
| Weight | 70.5 lbs |
| Cell Configuration | 144 half-cut N-Type monocrystalline cells |
| Frame | Anodized aluminum alloy |
| Glass | 2.0 mm semi-tempered with AR coating |
| Junction Box | IP68, 3 bypass diodes |
| Environmental | |
| Operating Temp | -40°C to +85°C |
| Max System Voltage | 1500 V |
| Test Load (Front/Rear) | 5400 Pa / 2400 Pa |
| Warranty | |
| Product Warranty | 15 years |
| Power Warranty | 30 years (87.4% power retention at year 30) |
Why SEG Solar?
Founded over a decade ago, SEG Solar has emerged as a dynamic and influential player in the renewable energy industry. Headquartered in Houston, Texas, the company boasts a robust portfolio of products including high-efficiency photovoltaic modules, solar inverters, and complete solar energy systems tailored for both residential and commercial applications.
SEG Solar is particularly noted for its pioneering solar technology, which emphasizes maximizing energy yield and enhancing durability against environmental variables. The company offers comprehensive warranties on its products, providing peace of mind with long-term performance guarantees that complement its high standards of quality and reliability.
SEG offers these warranties:
Product warranty
A 15-year warranty that covers defects in materials and workmanship. This warranty also covers factory-assembled DC connectors and cables.
Production warranty
A 25- or 30-year warranty that ensures panels won't degrade faster than the manufacturer's specified rate. For example, the standard and black mono-facial panels have a 25-year production warranty, while the bifacial solar panels have a 30-year production warranty.
Extended warranty
A 30-year extended warranty commitment. SEG also offers quality assurance that lasts up to 30 years.
