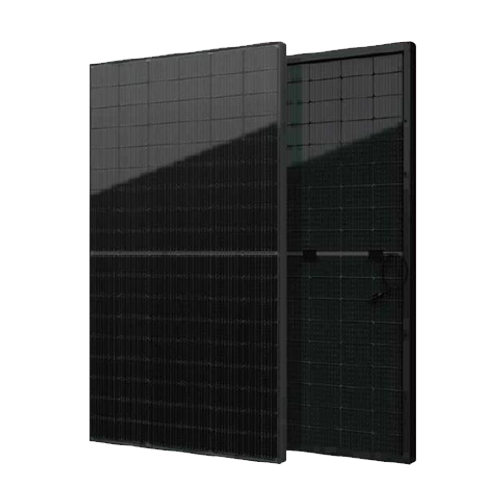

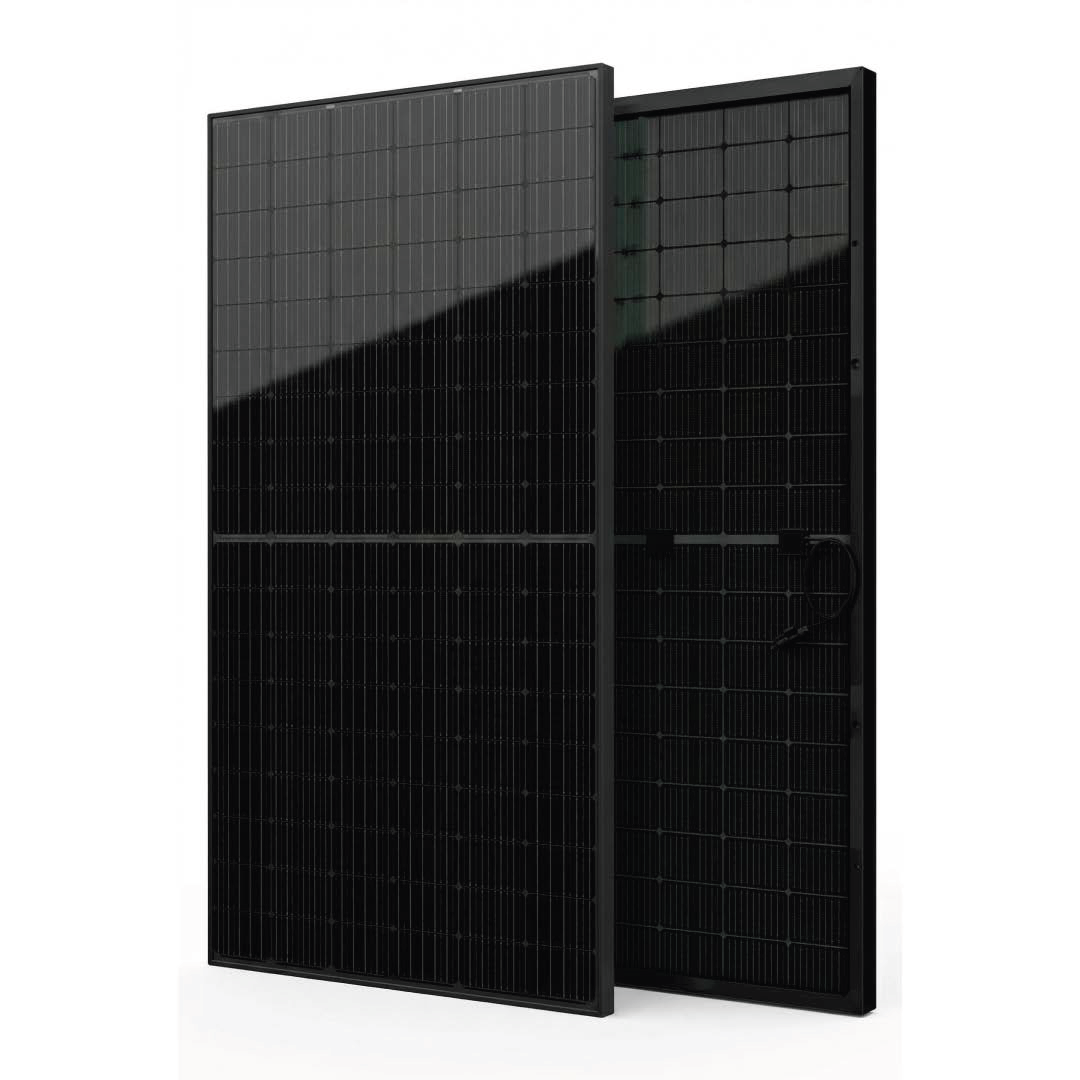

SEG 440W Yukon N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG
MPN No: SEG-440-BTD-BG
Expected ship date Jan 16 - 23
In Stock
$275.00
SEG 440W Yukon N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG
SEG 440W Yukon N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG
Regular price
$275
$0.62/watt
New
200 IN STOCK
SEG 440W Yukon N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG
SEG 440W Yukon N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG
Available
MPN No: SEG-440-BTD-BG
Regular price
$275
$0.62/watt
Expected ship date Jan 16 - 23
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$275
SEG 440W Yukon N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG
MPN No:
SEG-440-BTD-BG
Expected ship date Jan 16 - 23
SEG Solar YUKON N Series All BlackSEG-440-BTD-BG | 440W Half-Cell N-Type Bifacial Module
Weight: 52.9 lbs (24.0 kg)
Dimensions: 67.80 × 44.65 × 1.18 in (1722 × 1134 × 30 mm)
Deliver high output and long-term performance with the SEG Solar YUKON N Series SEG-440-BTD-BG, a 108-cell half-cut N-Type monocrystalline bifacial module engineered for strong efficiency and durability. Designed for modern PV projects, it combines bifacial energy gain potential with robust mechanical loading and a long 30-year warranty package.
Key Technology
-
440W STC Output + 22.53% Efficiency
High-performance module rating with strong conversion efficiency for space-efficient PV layouts. -
N-Type Half-Cell Bifacial Design
108-cell (54 × 2) N-Type architecture with 80% ±10% bifaciality for added rear-side energy contribution. -
Super Multi-Busbar Technology
Supports reliable current collection and performance consistency. -
Strong Mechanical Load Ratings
Rated for 5400 Pa (front) and 2400 Pa (rear) for demanding installation conditions.
Best Uses
-
Commercial & Industrial Rooftops
High efficiency and 1500V system capability support scalable designs. -
Ground-Mount & Utility-Scale Arrays
Bifacial architecture can enhance energy yield in reflective site conditions. -
High-Load / Harsh-Weather Installations
Engineered for strong front and rear mechanical loading performance. -
Long-Term Asset Deployments
30-year product and linear power warranties support long lifecycle planning.
Certifications
This module is listed with the following product certifications and environmental tests:
-
IEC61215; IEC61730; UL61215; UL61730
-
IEC62804 (PID), IEC61701 (Salt Mist), IEC62716 (Ammonia), IEC60068 (Dust & Sand / Hailstone)
-
Fire Type (UL61730): Type 29
-
ISO14001:2015; ISO9001:2015; ISO45001:2018
Warranty
-
Product (Materials & Workmanship): 30 Years
-
Linear Power Output Warranty: 30 Years (includes a stated end-of-term value of 87.4% at year 30)
Product Specifications
| Specification | Details |
|---|---|
| Model | SEG-440-BTD-BG |
| Module Type | YUKON N Series, Half-Cell N-Type Bifacial (108 cells / 54 × 2) |
| Rated Power (Pmp, STC) | 440 W |
| Module Efficiency (STC) | 22.53% |
| Open Circuit Voltage (Voc, STC) | 39.30 V |
| Short Circuit Current (Isc, STC) | 14.15 A |
| Maximum Power Voltage (Vmp, STC) | 32.70 V |
| Maximum Power Current (Imp, STC) | 13.46 A |
| Power Tolerance | (0, +4.99) W |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality | 80% ±10% |
| Pmax Temperature Coefficient | -0.30 %/°C |
| Voc Temperature Coefficient | -0.25 %/°C |
| Isc Temperature Coefficient | +0.046 %/°C |
| Operating Temperature | -40 to +85 °C |
| NOCT | 45 ±2 °C |
| Front Glass | 2.0 mm AR coating semi-tempered glass |
| Back Glass | 2.0 mm semi-tempered glass |
| Frame | Black anodized aluminium alloy |
| Junction Box | IP68 / 3 diodes |
| Connector Type | MC4 |
| Cable | 12 AWG PV Wire (UL) — Portrait: 400 mm(+) / 200 mm(-); Landscape: 1200 mm(+) / 1200 mm(-) |
| External Dimensions | 1722 × 1134 × 30 mm (67.80 × 44.65 × 1.18 in) |
| Weight | 24.0 kg (52.9 lbs) |
| Packing Configuration | 36 pcs/pallet; 20’GP: 6 pallets (216 pcs); 40’HQ: 24 pallets (864 pcs) |
| Warranty | 30-year product + 30-year linear power output |
High-Efficiency Bifacial Performance for Long-Term Value
The SEG-440-BTD-BG pairs a high-efficiency N-Type cell platform with bifacial design, strong load ratings, and 1500V system support—built to perform across demanding PV environments while maintaining long warranty coverage.
