Schneider Electric Homeline Tandem 15A/20A Circuit Breaker HOMT1520
HOMT1520
Schneider Electric Homeline Tandem 15A/20A Circuit Breaker HOMT1520

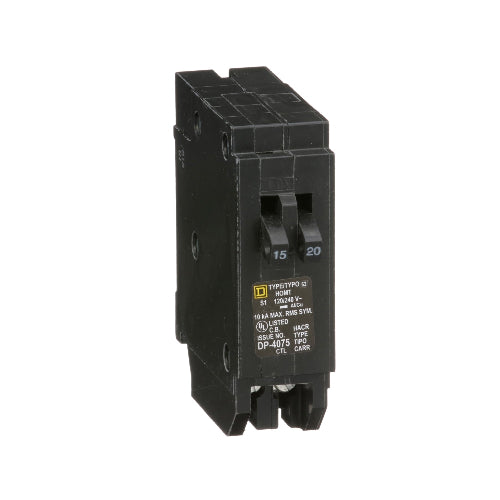

The Schneider Electric HOMT1520 is a tandem miniature circuit breaker offering one 15A and one 20A single-pole breaker in a single 1-inch-wide unit. Designed for Homeline load centers, this space-saving breaker provides reliable 10kA interrupt protection for 120/240V AC residential applications.
Key Benefits
Doubles Circuit Capacity: Combines a 15A and 20A breaker in one space for panel optimization.
Compact Installation: Plug-in mounting for quick fit into Homeline load centers.
Dependable Protection: 10,000 AIC interrupt rating ensures safe performance during faults.
HACR Rated: Certified for use with HVAC equipment.
Special Technology
Box Lug Terminals: Accepts 1× AWG 14 to AWG 8 Cu/Al wires with 35.4 lbf·in torque.
Eco-Friendly Shipping: Packaged in recycled cardboard without single-use plastics.
Built for Longevity: Designed under Schneider’s sustainability and circularity program.
Warranty
Backed by Schneider Electric’s limited lifetime warranty.
Best Uses
Residential Panel Expansion: Ideal when breaker slots are limited.
Mixed Load Circuits: Supports two different amperage circuits from one breaker.
Space-Efficient Upgrades: Reduces need for larger load centers.
Specifications Table
| Specification | Data |
|---|---|
| Model | HOMT1520 |
| Series | Homeline |
| Breaker Type | Tandem (1× 15A, 1× 20A) |
| Current Rating | 15A + 20A |
| Voltage Rating | 120/240 VAC |
| Number of Poles | 1P per circuit |
| Interrupting Rating | 10 kA |
| Mounting Type | Plug-in |
| Terminal Type | Box Lug |
| Wire Size | 1× AWG 14–8 Cu/Al |
| Tightening Torque | 35.4 lbf·in (4.0 N·m) |
| Ambient Operating Temperature | 104°F (40°C) |
| Dimensions (H × W × D) | 3.13 × 1.00 × 2.98 in |
| Weight | 0.43 lb |
| GTIN | 785901065418 |
| Country of Origin | Mexico |
| Certifications | UL Listed, HACR Rated |
| Environmental Compliance | RoHS, REACh |
| Carbon Footprint | 23 kg CO₂ eq (lifecycle) |
| Warranty | Lifetime |
