Schneider Electric Homeline 60A 2-Pole Circuit Breaker HOM260
HOM260
Schneider Electric Homeline 60A 2-Pole Circuit Breaker HOM260

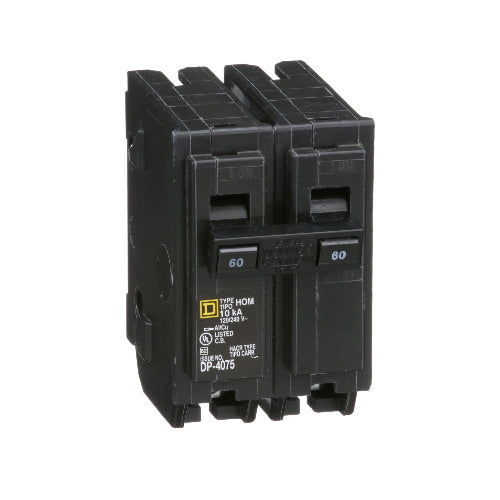

The Schneider Electric HOM260 is a 60A, 2-pole standard miniature circuit breaker from the Homeline series, rated for 120/240V AC residential use. It features plug-in mounting, 10 kA short-circuit interrupt capacity, and box lug terminals for secure wiring. UL listed and HACR rated, it’s ideal for high-load residential applications.
Key Benefits
High Capacity: Provides 60A over two poles with 10 kA interrupt rating for robust fault protection.
Quick Installation: Plug-in mounting simplifies panel integration in Homeline load centers.
Flexible Connections: Accepts AWG 8 to AWG 2 aluminum or copper conductors via box lugs.
HACR Rated: Suitable for use with HVAC systems and appliances.
Special Technology
Dual Pole Protection: Protects both legs of a 240V circuit in one compact breaker.
Eco-Conscious Packaging: Supplied in recycled cardboard with no single-use plastics.
Sustainability Certified: Compliant with RoHS and REACh, aligned with Schneider’s “Use Better, Use Longer, Use Again” initiative.
Warranty
Lifetime limited warranty by Schneider Electric.
Best Uses
High-Load Residential Circuits: Ideal for subpanels, water heaters, EV chargers, and HVAC systems.
Homeline Panels: Compatible with all Homeline load centers.
Sustainable Projects: Designed with long-term use and recyclability in mind.
Specifications Table
| Specification | Data |
|---|---|
| Model | HOM260 |
| Series | Homeline |
| Breaker Type | Standard |
| Current Rating | 60 Amps |
| Voltage Rating | 120/240 VAC |
| Number of Poles | 2 |
| Interrupting Rating | 10 kA |
| Mounting Type | Plug-in |
| Terminal Type | Box Lug |
| Wire Size | 1× AWG 8–2 Cu/Al |
| Tightening Torque | 40.7 lbf·in (4.6 N·m) |
| Ambient Operating Temperature | 104°F (40°C) |
| Dimensions (H × W × D) | 3.13 × 2.00 × 2.98 in |
| Weight | 0.70 lb |
| GTIN | 785901065333 |
| Country of Origin | Mexico |
| Certifications | UL Listed, HACR Rated |
| Environmental Compliance | RoHS, REACh, Circularity Program |
| Warranty | Lifetime |
