Schneider Electric Homeline 20A 2-Pole Circuit Breaker HOM220
HOM220
Schneider Electric Homeline 20A 2-Pole Circuit Breaker HOM220

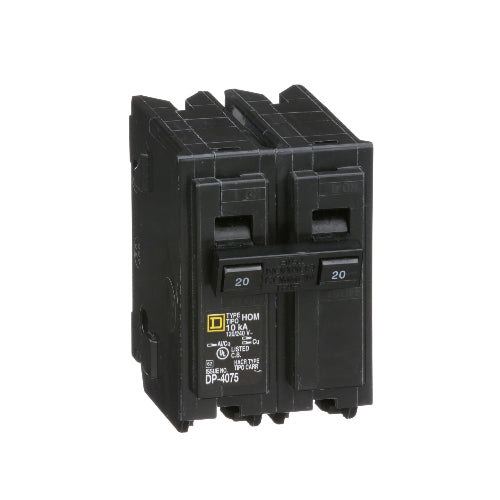

The Schneider Electric HOM220 is a 2-pole, 20A plug-on circuit breaker from the Homeline series, designed for 120/240V AC residential systems. It features a 10 kA interrupting rating, dual-wire clamp terminals, and a compact plug-in design, making it ideal for branch circuit protection in load centers.
Key Benefits
Reliable Circuit Protection: Provides overload and short-circuit protection for 240V residential loads.
Dual-Wire Clamp Terminals: Supports up to two copper wires per pole, simplifying connections.
Fast Installation: Plug-on design for easy integration into Homeline load centers.
UL Listed Safety: Certified for residential electrical installations with 10 kA interrupt rating.
Special Technology
HACR Rated: Suitable for heating, air conditioning, and refrigeration circuits.
Clamp Terminal: Secure connection for AWG 14–8 (Cu/Al) and 14–10 (Cu ×2).
Environmentally Compliant: RoHS and REACh certified with sustainable packaging.
Warranty
Lifetime warranty provided by Schneider Electric.
Best Uses
Residential Branch Circuits: Perfect for powering 240V loads like dryers or pumps.
HVAC Applications: Compliant with HACR-rated breaker requirements for HVAC systems.
Eco-Conscious Builds: Contributes to sustainable installations with circular product design.
Specifications Table
| Specification | Data |
|---|---|
| Model | HOM220 |
| Series | Homeline |
| Breaker Type | Standard |
| Current Rating | 20 Amps |
| Voltage Rating | 120/240 VAC |
| Number of Poles | 2 |
| Interrupting Rating | 10 kA |
| Mounting Type | Plug-in |
| Terminal Type | Clamp (2 wires per terminal) |
| Wire Size | 1× AWG 14–8 Cu/Al, 2× AWG 14–10 Cu |
| Tightening Torque | 35.4 lbf·in |
| Ambient Operating Temp | 104°F (40°C) |
| Dimensions (H × W × D) | 3.13 × 2.00 × 2.98 in |
| Weight | 0.65 lb |
| GTIN | 785901065289 |
| Country of Origin | Mexico |
| Certifications | UL Listed, HACR Rated |
| Environmental Compliance | RoHS, REACh, Circularity Program |
| Warranty | Lifetime |
