Schneider Electric Homeline 100A 6-Space 12-Circuit Outdoor Load Center HOM612L100RB
HOM612L100RB
Schneider Electric Homeline 100A 6-Space 12-Circuit Outdoor HOM612L100RB

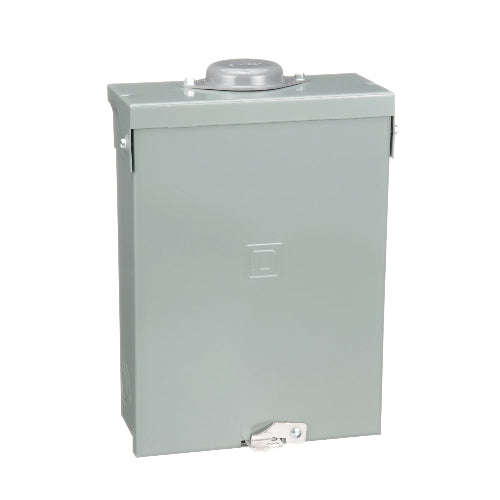

The Schneider Electric HOM612L100RB is a compact Homeline outdoor load center featuring 6 spaces and 12 circuits with fixed main lugs. Rated at 100A and housed in a NEMA 3R weatherproof enclosure, this unit is ideal for residential applications requiring durable, surface-mounted outdoor power distribution.
Key Benefits
Compact and Capable: Supports up to 12 single-pole circuits in a 6-space configuration.
Outdoor Ready: NEMA 3R galvanized steel enclosure with baked enamel finish withstands harsh environments.
Reliable Connections: Tin-plated aluminum busbar and AWG 8–1 copper/aluminum wire support ensure robust performance.
Surface Cover: Provides weather protection and streamlined installation.
Special Technology
Sustainable Packaging: Shipped in recycled cardboard with no single-use plastics.
Part of Circularity Program: Designed to last longer with no special recycling required at end of life.
Warranty
Backed by Schneider Electric’s lifetime limited warranty.
Best Uses
Outdoor Subpanels: Ideal for garages, sheds, EV chargers, and auxiliary residential loads.
Utility-Approved Installations: Meets UL listed standards for 1-phase 3-wire 120/240V setups.
Space-Constrained Projects: Fits where small, surface-mount load centers are needed.
Specifications Table
| Specification | Data |
|---|---|
| Model | HOM612L100RB |
| Series | Homeline |
| Main Type | Fixed Main Lugs |
| Rated Current | 100 Amps |
| Spaces / Circuits | 6 Spaces / 12 Circuits |
| Max Tandem Breakers | 6 |
| Voltage Rating | 120/240 VAC |
| Phases | 1-Phase, 3-Wire |
| Enclosure Rating | NEMA 3R |
| Mounting Type | Surface |
| Busbar Material | Tin-Plated Aluminum |
| Max Short Circuit Rating | 10 kA |
| Wire Size | AWG 8 to AWG 1 Cu/Al |
| Dimensions (H × W × D) | 12.6 × 8.9 × 4.3 in |
| Weight | 9.69 lbs |
| Enclosure Material | Galvannealed Steel |
| Finish | Baked Enamel, Gray |
| Certifications | UL Listed (E-6294) |
| GTIN | 785901061205 |
| Country of Origin | Mexico |
| Environmental Compliance | RoHS (under review), REACh |
| Carbon Footprint | 23 kg CO₂ eq (lifecycle) |
| Warranty | Lifetime |
