Schneider Electric General Duty Safety Switch 100A 240V D223NRB
D223NRB
Schneider Electric General Duty Safety Switch 100A 240V D223NRB

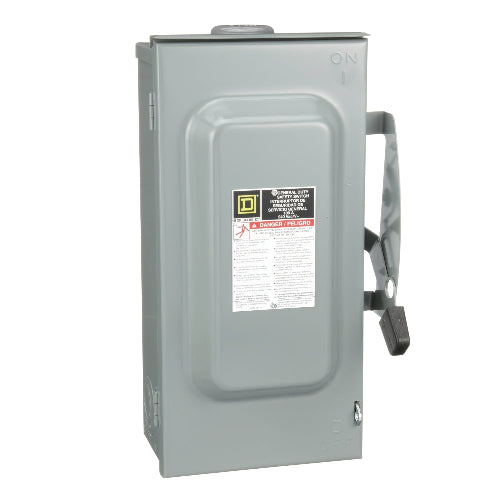

The Schneider Electric D223NRB is a general duty, fusible safety switch rated for 100A and 240VAC. With a factory-installed neutral and NEMA 3R enclosure, it’s built for residential or light commercial outdoor applications. The switch supports up to 30 HP motors, making it ideal for main disconnects and service panels.
Key Benefits
High Power Support: Handles up to 30 HP for 3-phase motors at 240V, ideal for large residential loads.
Outdoor Ready: NEMA 3R rated rainproof enclosure ensures reliable use in outdoor environments.
Factory Neutral: Comes pre-installed with neutral for simplified 3-wire system installation.
UL Listed: Certified under UL file E2875 for safety compliance in the U.S.
Special Technology
High Short Circuit Rating: Supports up to 100 kA when used with H, K, or R fuses.
Fusible Protection: Enhances system safety and reliability with selectable fuse options.
Environmental Design: REACh and RoHS compliant with eco-friendly packaging and materials.
Warranty
18-month limited product warranty by Schneider Electric.
Best Uses
Residential Service Disconnects: Use at the meter or main panel for load separation.
Outdoor Motor Control: Suitable for high horsepower single or 3-phase motors in outdoor locations.
Light Commercial Installations: Efficient and safe disconnect option for small businesses.
Specifications Table
| Specification | Data |
|---|---|
| Model | D223NRB |
| Product Type | Single Throw Safety Switch |
| Current Rating | 100 Amps |
| Voltage Rating | 240 VAC |
| Poles / Wires | 2 Pole / 3 Wire |
| Disconnect Type | Fusible |
| Neutral | Factory Installed |
| Enclosure | NEMA 3R (Rainproof) |
| Mounting | Surface |
| Fuse Compatibility | H, K, or R |
| Short Circuit Rating | Up to 100 kA |
| Motor Ratings | 15 HP 1-phase / 30 HP 3-phase @ 240V |
| Wire Size | Cu: AWG 14–1 / Al: AWG 12–1 |
| Torque Settings | 35–50 lbf·in (AWG 14–1) |
| Dimensions (W × H × D) | 10.56 × 17.5 × 6.5 in |
| Weight | 15.4 lbs |
| GTIN | 785901460701 |
| Country of Origin | USA |
| Environmental Compliance | RoHS, REACh, Prop 65, PVC-free |
| Warranty | 18 Months |
