Schneider Electric 70A 2-Space 4-Circuit Load Center QO24L70F
QO24L70F

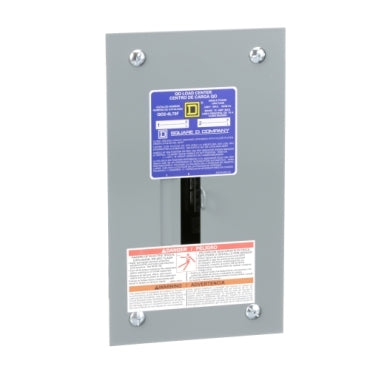

Schneider Electric 70A 2-Space 4-Circuit Load Center flush cover QO24L70F
The Schneider Electric QO24L70F is a compact load center with 2 spaces and 4 circuits, designed for 1-phase residential installations. Featuring a 70A fixed main lug and flush cover, this unit is ideal for small-scale branch circuits or subpanel applications in indoor environments.
Key Benefits
Compact Size: 2-space, 4-circuit layout ideal for limited space applications or small subpanels.
High Interrupt Rating: Supports up to 65,000 AIC for reliable short-circuit protection.
Easy Installation: Plug-on neutral compatible and includes tin-plated aluminum busbars.
Flush Mount Cover: Provides a low-profile, clean finish for indoor installations.
Special Features
Fixed Main Lugs: Pre-installed 70A main lugs simplify installation and reduce panel prep.
Enclosure: Welded steel NEMA 1 indoor rated enclosure with baked enamel gray finish.
Wide Wire Range: Supports AWG 14–3 copper and AWG 12–3 aluminum conductors.
Warranty
Backed by an 18-month limited warranty from Schneider Electric.
Best Uses
Residential Applications: Ideal for garages, small sheds, or subpanel loads.
Indoor Installations: Designed for NEMA 1 environments with flush mounting.
Upgrade Projects: Fits well in panel replacements or space-saving service expansions.
Specifications Table
| Specification | Data |
|---|---|
| Model | QO24L70F |
| Type | Load Center |
| Main Type | Fixed Main Lugs |
| Spaces | 2 |
| Circuits | 4 |
| Max Tandem Breakers | 2 |
| Voltage Rating | 120/240 V AC |
| Rated Current | 70 A |
| Short Circuit Rating | 65,000 AIC |
| Phase | Single-phase, 3-wire |
| Busbar Material | Tin-plated Aluminum |
| Cover Type | Flush |
| Enclosure Rating | NEMA 1 (Indoor) |
| Enclosure Material | Welded Steel, Baked Enamel |
| Height | 9.3 in |
| Width | 4.8 in |
| Package Dimensions (L×W×H) | 11.10 × 6.40 × 4.10 in |
| Weight | 3.65 lbs |
| Wire Size (Cu) | AWG 14–4 |
| Wire Size (Al) | AWG 12–3 |
| Tightening Torque | 35–45 lb·in (varies by wire size) |
| Certifications | UL Listed |
| GTIN | 785901785125 |
| Country of Origin | Mexico |
| Warranty | 18 Months |
