Schneider Electric 5-Terminal Ground Bar Kit PK5GTA
PK5GTA
Schneider Electric 5-Terminal Ground Bar Kit PK5GTA

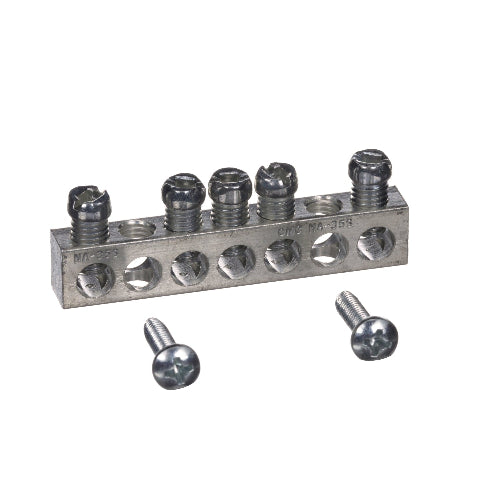

The Schneider Electric PK5GTA is a load center accessory designed for use with QO and Homeline panels. This ground bar kit includes five terminals for secure grounding and installs directly on the back of the enclosure, making it ideal for residential or light commercial panel installations.
Key Benefits
Compact Grounding Solution: Five-terminal bar designed for space-efficient installations.
Easy Installation: Direct mounting to the enclosure with included screws simplifies setup.
Flexible Compatibility: Accepts copper and aluminum wires ranging from AWG 14 to AWG 4.
Reliable Torque Ratings: Tightening torque settings vary by wire size and material for safe connections.
Special Features
High Conductivity: Robust bar construction ensures low-resistance grounding.
UL Certified: Designed and tested for code-compliant installations.
U.S. Origin: Manufactured in the USA and stocked for quick availability.
Warranty
18-month limited product warranty.
Best Uses
Residential Load Centers: Grounding solution for QO and Homeline panelboards.
Light Commercial: Suitable for small-scale installations requiring compliant ground terminations.
Panel Upgrades: Adds additional grounding capacity during service upgrades or retrofits.
Specifications Table
| Specification | Data |
|---|---|
| Model | PK5GTA |
| Product Type | Ground Bar Kit |
| Main Product Line | QO / Homeline |
| Number of Connectors | 5 |
| Wire Size - Copper | AWG 14 to AWG 4 |
| Wire Size - Aluminum | AWG 12 to AWG 4 |
| Mounting | Direct to back of enclosure |
| Bar Length | 2.2 in (57 mm) |
| Segment Max Length | 1.3 in (32 mm) |
| Height | 0.437 in (11.1 mm) |
| Depth | 0.312 in (7.9 mm) |
| Included Equipment | 2 Mounting Screws |
| Tightening Torque | 20–35 lb-in (varies by wire type/size) |
| Weight | 0.05 lb |
| Country of Origin | USA |
| GTIN | 785901263654 |
| Certifications | RoHS Compliant with Exemptions |
| Warranty | 18 Months |
