Schneider Electric 30A 2-Pole Miniature Circuit Breaker QO230
QO230
Schneider Electric 30A 2-Pole Miniature Circuit Breaker QO230

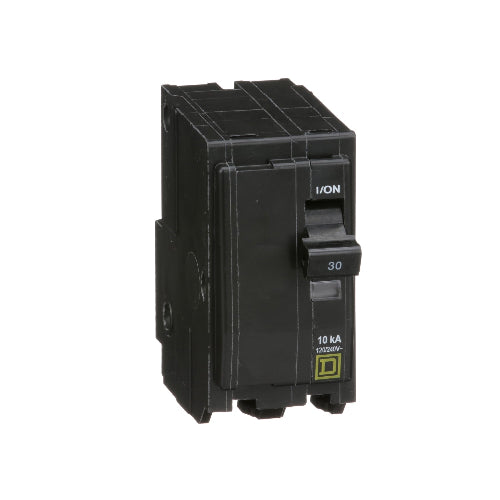

The Schneider Electric QO230 is a 2-pole, 30A miniature circuit breaker designed for residential and commercial load centers. It provides robust circuit protection at 120/240V AC and features a compact, plug-in design for quick and secure installation into QO panelboards.
Key Benefits
Reliable Protection: Offers a 10kA interrupt rating at 120/240V AC for effective short-circuit defense.
Standard Fit: Easily installs into QO load centers, occupying two panel spaces.
Wide Wire Compatibility: Accepts copper or aluminum wire from AWG 14 to AWG 8.
HACR Rated: Suitable for HVAC applications requiring high-reliability breakers.
Special Features
Plug-In Mounting: Enables straightforward integration into panelboards with no need for special tools.
Pressure Plate Terminals: Securely fasten conductors with standard torque application.
Certifications: UL Listed and CSA certified for recognized safety and compliance.
Warranty
Backed by an 18-month limited manufacturer's warranty.
Best Uses
Residential Electrical Systems: Provides 2-pole circuit protection for appliances and split-phase loads.
Light Commercial Applications: Suitable for HVAC, lighting, and subpanel use.
Panel Upgrades: Ideal replacement or addition to Schneider QO load centers.
Specifications Table
| Specification | Data |
|---|---|
| Model | QO230 |
| Product Type | Miniature Circuit Breaker |
| Range | QO |
| Poles | 2 |
| Current Rating | 30 A |
| Voltage Rating | 120/240 V AC |
| Interrupt Rating | 10,000 A |
| Mounting Type | Plug-in |
| Breaker Type | Standard |
| Panel Spaces Required | 2 |
| Wire Size | AWG 14–8 Cu/Al |
| Connection Type | Pressure Plate |
| Tightening Torque | 35.4 lbf-in (4 N·m) |
| Height | 3.0 in |
| Width | 1.5 in |
| Depth | 2.9 in |
| Net Weight | 0.549 lbs |
| Ambient Rating | 104°F (40°C) |
| Certifications | UL Listed, CSA |
| GTIN | 785901400424 |
| Country of Origin | Mexico |
| Environmental | RoHS Compliant, Halogen-Free |
| Warranty | 18 Months |
