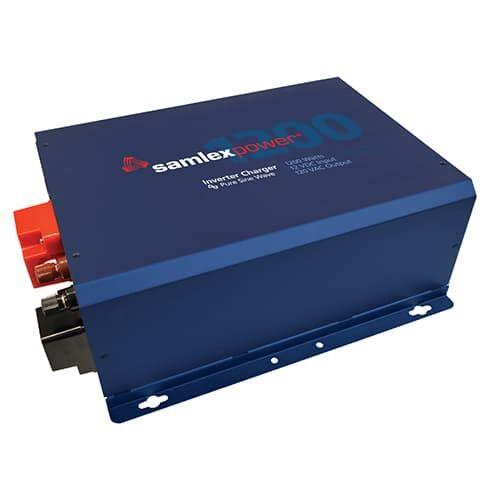

The Samlex EVO-1212F-HW is a hardwired, all-in-one inverter/charger delivering clean pure sine wave power, an adaptive battery charger, and a synchronized transfer relay in a single rugged platform. Built for mobile, marine, off-grid, and emergency backup applications, it provides 1200W continuous output with exceptional surge and Power Boost capability—so demanding loads start reliably without oversizing.
Key Technology
-
Pure Sine Wave Inverter (1200W)
Utility-grade AC power (THD < 5%) for sensitive electronics and motor loads. -
High Surge & Active Power Boost
3× surge on start-up plus Power Boost allowances: 150% (30s), 140% (1 min), 120% (10 min), 110% (30 min). -
Synchronized, Zero-Interruption Transfer
Instantaneous transfer at zero crossing for seamless switching between inverter and grid/generator. -
Adaptive Battery Charging
Bulk-stage monitoring adjusts subsequent stages based on battery condition to reduce charge time and extend battery life. -
Solar Charge Controller Input
Accepts up to 50A external DC charging (solar) with intelligent power sharing. -
Bullet-Proof Intelligence
Multiple protection points scanned up to 10,000×/sec for proactive fault handling.
Best Uses
-
Fleet Vehicles & Mobile Power
Reliable AC power for service vehicles, RVs, and overland builds. -
Marine & Remote Locations
Clean sine power with seamless transfer for critical onboard systems. -
Off-Grid & Solar-First Systems
Online Mode prioritizes inverter/battery over grid when desired. -
Emergency Backup Power
Hardwired installation for permanent backup circuits.
Charging, Cooling & Control
-
Programmable 2-, 3-, and 4-stage charging profiles (with Equalization)
-
Compatible with Lead-Acid and Lithium batteries
-
Temperature-controlled dual fans (quiet, efficient cooling)
-
Programmable Power Save mode (< 8W in sleep)
-
Optional EVO-RC-PLUS remote (sold separately) for advanced programming and monitoring
Warranty & Compliance
-
Manufacturer Warranty: 2-year limited
-
Safety: Intertek-ETL listed (UL 458 / CSA C22.2 No. 107.1-01)
-
EMC: FCC Part 15(B), Class A
Product Specifications
| Specification | Details |
|---|---|
| Model | EVO-1212F-HW |
| Inverter Type | Pure Sine Wave |
| Continuous Output Power | 1200 W @ PF 0.95 |
| Surge Power | 300% (3600 VA, 1 ms) |
| AC Output | 120 VAC ±5%, 60 Hz |
| Battery Voltage | 12 VDC (9.1–17 VDC range) |
| Max DC Input Current | 152 A |
| Inverter Efficiency (Peak) | 89% |
| AC Input | 120 VAC (60–140 VAC selectable) |
| Transfer Relay | SPDT, 30 A; <1 ms inverter→grid |
| Internal Charger (Bulk) | Programmable 0–60 A DC |
| Solar DC Input | Up to 50 A (external controller) |
| Cooling | Dual temperature-controlled fans |
| Operating Temperature | -4°F to 140°F (-20°C to +60°C) |
| Installation | Hardwired AC input/output (external breaker required) |
| Dimensions | 12.76 × 16.34 × 5.83 in |
| Weight | 38.8 lbs |
| Warranty | 2 years |
About Samlex:
Samlex is a global manufacturer of power conversion products founded in 1991 and based in Burnaby, Canada. They make inverters, battery chargers, converters, power supplies, solar charge controllers and related accessories for mobile, industrial, off‑grid, RV, marine and telecom uses. Samlex products are known for reliability, quality and broad international distribution.
Hardwired, High-Performance Power—All in One
The EVO-1212F-HW combines clean sine power, adaptive charging, solar integration, and zero-interruption transfer into a single hardwired solution—engineered for reliability wherever dependable AC power matters.
