Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12
MPN No: SAM-800-12
Expected ship date Sep 21 - 28
In Stock
$111.90
Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12
Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12
Regular price
$111.90
LESS THAN 50
Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12
Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12
Available
MPN No: SAM-800-12
Regular price
$111.90
Expected ship date Sep 21 - 28
Data Sheet
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$111.90
Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12
MPN No:
SAM-800-12
Expected ship date Sep 21 - 28
Samlex Inverter 800 Watts 12VDC Modified Sine Wave 120VAC SAM-800-12

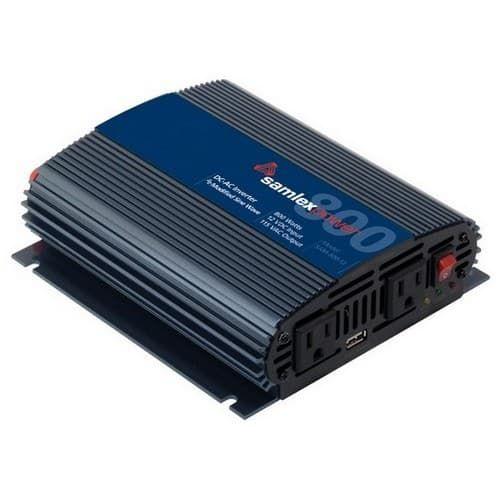

The Samlex SAM-800-12 is a compact, high-efficiency modified-sine-wave DC-AC inverter that converts 12V battery power into reliable 115V AC power. With integrated USB charging, robust protection circuitry, and a load-controlled cooling fan, itβs an excellent solution for vehicles, RVs, mobile workstations, and light-duty backup power applications.
Key Technology
-
800W Continuous Output Power
Provides 800W continuous and up to 1600W surge power (<1 second) for resistive loads. -
Modified Sine Wave Output
Ideal for power tools, chargers, lighting, and general-purpose AC equipment. -
Integrated USB Charging Port
Built-in 5 VDC, 2.1A USB output for smartphones and portable electronics. -
Load-Controlled Cooling Fan
Cooling fan activates automatically at 35β45W load to reduce noise and energy consumption. -
Universal Protection Circuit
Protection against thermal overload, battery faults, overload, short circuit, and earth leakage.
Best Uses
-
Vehicle & Mobile Power
Reliable AC power for service vehicles, vans, and mobile professionals. -
RV & Travel Applications
Run small appliances and charge electronics while on the road. -
Portable & Backup Power
Compact solution for emergency kits and light-duty backup needs. -
General Electronics
Suitable for chargers, computers, and other non-sensitive loads.
Cooling & Safety
-
Low battery voltage alarm and automatic shutdown
-
High input voltage shutdown (>15.5 VDC)
-
Overload shutdown (latching, manual reset)
-
Over-temperature shutdown with auto-reset
-
Soft-start technology and power-save mode
Warranty
-
Manufacturer Warranty: 2 years
Product Specifications
| Specification | Details |
|---|---|
| Model | SAM-800-12 |
| Inverter Type | Modified Sine Wave |
| Battery System Voltage | 12 VDC |
| Nominal Input Voltage | 12.5 VDC |
| Input Voltage Range | >10.8 β <15.4 VDC |
| Input Current @ Continuous Power | 72β75 A |
| No-Load Input Current | 0.25β0.35 A |
| Continuous Output Power | 800 W |
| Surge Power | 1600 W (< 1 sec) |
| AC Output Voltage | 115 VAC (+10% / β2%) |
| AC Output Frequency | 60 Hz Β±5% |
| Peak Efficiency | 90% (at 50% load) |
| USB Output | 5 VDC, 2.1 A |
| AC Outlets | 2 Γ NEMA 5-15R |
| Remote Control Port | No |
| Operating Temperature | 0β25Β°C @ 100% load; 26β35Β°C @ 80% load |
| Dimensions | 8.6 Γ 7.0 Γ 2.4 in |
| Weight | 2.91 lbs |
| Warranty | 2 years |
Β
About Samlex:
Samlex is a global manufacturer of power conversion products founded in 1991 and based in Burnaby, Canada. They make inverters, battery chargers, converters, power supplies, solar charge controllers and related accessories for mobile, industrial, offβgrid, RV, marine and telecom uses. Samlex products are known for reliability, quality and broad international distribution.
Compact, High-Output 12V Power Solution
The Samlex SAM-800-12 delivers a strong balance of power, efficiency, and portabilityβmaking it a dependable choice for users who need reliable 12V-to-AC power in mobile, RV, and light-duty backup applications.
