Samlex Converter DC-DC Step UP Input 9-18VDC Output 24VDC 10A STEP10

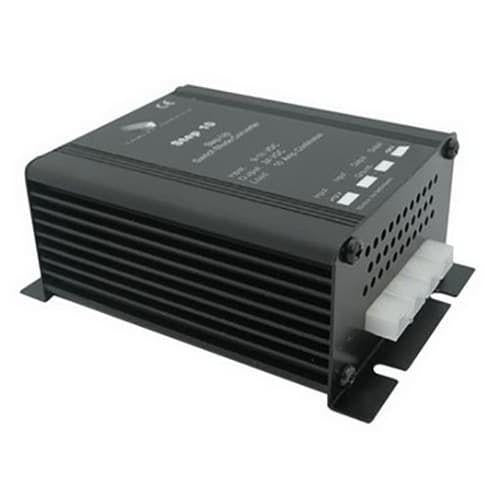

The Samlex STEP10 is a high-efficiency DC-DC step-up converter designed to boost 12V DC power to a stable 24V DC output. Built with a switch-mode topology and rugged anodized aluminum enclosure, the STEP10 delivers dependable performance for industrial, commercial, marine, and OEM applications where reliable voltage elevation is required.
Key Technology
-
10A Continuous Output
Provides up to 10A output current at 24V DC for demanding loads. -
High-Efficiency Switch-Mode Design
Achieves approximately 92% efficiency, reducing heat and energy loss. -
Stable 24V Output
Nominal 24 VDC output (25.7 to 24.6V) with +0% / −5% voltage stability. -
Convection-Cooled Operation
Fan-less cooling design ensures silent operation and long service life. -
Comprehensive Protection Circuitry
Includes short-circuit protection, over-voltage protection (varistor with load-dump protection), reverse polarity protection, and thermal output reduction.
Best Uses
-
Industrial & Commercial Systems
Boost 12V DC sources to 24V for control circuits and automation equipment. -
Marine & Recreational Applications
Reliable voltage step-up for onboard electronics and accessories. -
OEM Integrations
Compact, CE-approved solution for embedded power designs. -
Automotive & Mobile Equipment
Supports auxiliary 24V loads from 12V electrical systems.
Important Installation Note
Note: Input and output share a common negative; this converter is non-isolated.
Warranty
-
Manufacturer Warranty: 2 years
Product Specifications
| Specification | Details |
|---|---|
| Model | STEP10 |
| Converter Type | DC-DC Step-Up (Non-Isolated) |
| Input Voltage Range | 9 – 18 VDC |
| Output Voltage | 24 VDC nominal (25.7 – 24.6 V) |
| Output Current | 10 A |
| Off-Load Current | < 15 mA |
| Efficiency | ~92% |
| Output Noise | < 50 mV RMS |
| Cooling | Convection (fan-less) |
| Isolation | Common negative (non-isolated) |
| Operating Temperature | -20°C to +30°C (derates to 0 at 70°C) |
| Humidity | Max 95%, non-condensing |
| Protections | Short circuit, Over-voltage, Reverse polarity, Thermal |
| Certifications | CE, Automotive 95/54/EC, RoHS |
| Connections | 6.3 mm push-on flat blade |
| Dimensions | 4.5 × 3.5 × 1.9 in |
| Weight | 0.9 lbs |
| Warranty | 2 years |
About Samlex:
Samlex is a global manufacturer of power conversion products founded in 1991 and based in Burnaby, Canada. They make inverters, battery chargers, converters, power supplies, solar charge controllers and related accessories for mobile, industrial, off‑grid, RV, marine and telecom uses. Samlex products are known for reliability, quality and broad international distribution.
Efficient 12V-to-24V Conversion for Professional Systems
The Samlex STEP10 delivers stable, efficient voltage step-up performance in a compact, fan-less design—making it an excellent choice for professional, mobile, and OEM power applications requiring reliable 24V DC output.
